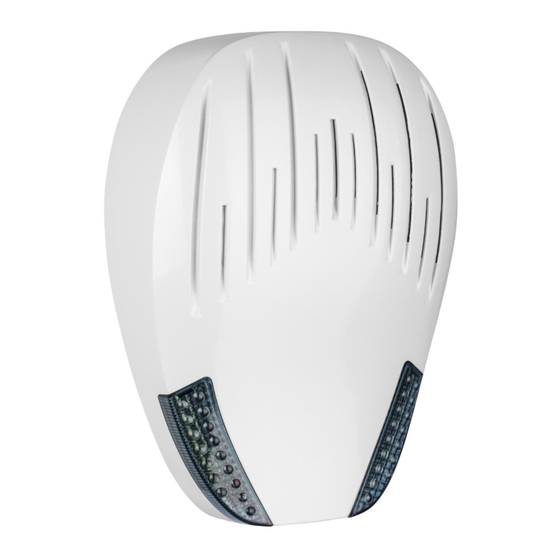

Venitem RONDO L Installation Manual
Hide thumbs Also See for RONDO L:

Advertisement

INSTALLATION MANUAL
SOUNDER MODELS
RONDO L – RONDO LS
MA-SE-ROND-09-00 Manual Rondò eng rev0
Rev.0 Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RONDO L and is the answer not in the manual?

Questions and answers

Summary of Contents for Venitem RONDO L

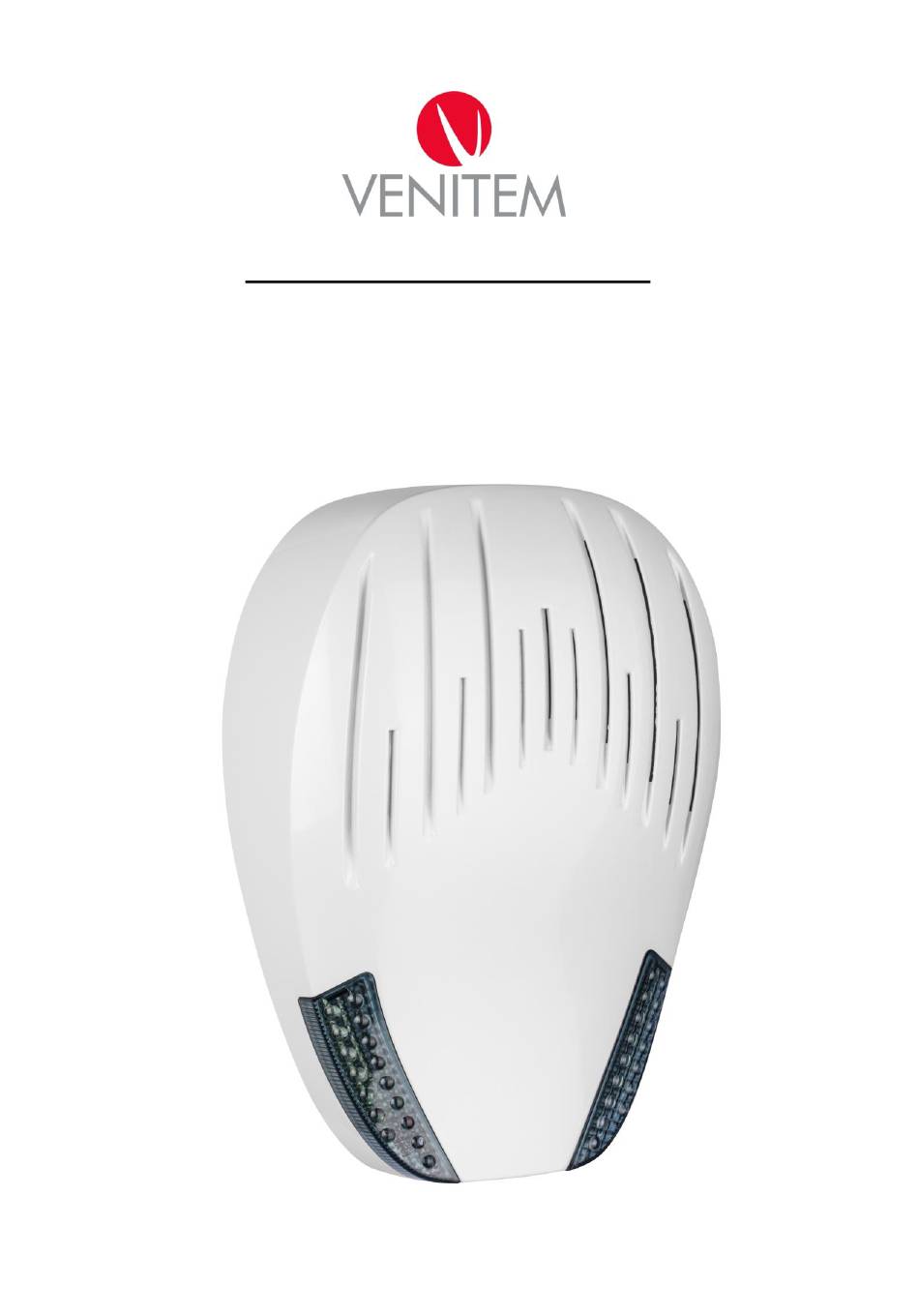

  • Page 1 INSTALLATION MANUAL SOUNDER MODELS RONDO L – RONDO LS MA-SE-ROND-09-00 Manual Rondò eng rev0 Rev.0 Page 1 of 8...
  • Page 2: General Description

    GENERAL DESCRIPTION Sounder mod. RONDO L is a low-consumption sounder with high-brightness LED flashing unit – anti-opening and anti-removal tamper – sound and timing programming – alarm counting – microprocessor self-test of: battery, speaker and drivers with dedicated anomaly negative output – programming of sounder trigger polarity –...
  • Page 3: Connection Schemes

    MOUNTING: 1. Use the 6mm plugs to fix the siren on the wall; always check if the tamper works properly; 2. Insert the connection cables through the holes located on the lower part of the sounder base; 3. If necessary, modify the default settings by acting on the dipswitches as shown in the charts below; 4.
  • Page 4 2. TWO-WIRE CONNECTION Connect 13.8 Volt supplying coming from control panel to the dedicated terminals: -RIC negative; +RIC positive. (+C trigger must be jumped to +RIC ) Note: by default, DIPSWITCH N°2 is set in OFF position, POSITIVE-MISSING TRIGGER GND 0V +13.8V and OUTDOOR SOUNDER TRIGGER ALARM...
  • Page 5 after 4 hours from battery restore (replacement). The sounder performs all tests again and therefore updates battery faults too. In case a fault occurs, the LEDs of the flashing light flash faster. CHART 1: FAULTS Fault type Led LD1 Output OUT ANM Speaker interruption (test performed every 10s) 1 FLASH OPEN...
  • Page 6: Connection And Settings

    CONNECTION and SETTINGS Chart 3: wiring Chart 2: dipswitches and jumpers Connections Terminals DIP 1 Alarm timing Negative supplying 0V GND -RIC (1) DIP 2 Polarity of alarm input +C Positive supplying +13.8V +RIC (2) DIP 3 Tone selection Sounder control chart 5 +C (3) Alarm system STI (ON/OFF) notice DIP 4...
  • Page 7: Installation Suggestions

    CHART here above. WARRANTY All Venitem products are granted against factory or material defects. In order to improve design and quality of the products, Venitem reserves the right to modify the products without prior notice. All faulty or defective products must be returned to the supplier NOTE MA-SE-ROND-09-00 Manual Rondò...
  • Page 8 Venitem srl via del lavoro, 10 – 30030 Salzano (VE) Tel.: +39 041 5740374 Fax: +39 041 5740388 Website: www.venitem.com E-mail: info@venitem.com MA-SE-ROND-09-00 Manual Rondò eng rev0 Rev.0 Page 8 of 8...

This manual is also suitable for:

Rondo ls
