- Page 1 TECHNICAL MANUAL GIUDECCA...
-
Page 2: Important Safety Instructions
TECHNICAL MANUAL IMPORTANT SAFETY INSTRUCTIONS READ THE FOLLOWING SECTION CAREFULLY AND STORE IT WARNING Explosion risk if the battery is replaced with a wrong type High sound pressure, risk of hearing loss... - Page 3 DIRECTIONS FOR A CORRECT MOUNTING 1. To ensure a correct functioning tamper, maximum MAX 5 mm installation depth from flush is MAX 5 mm 5 mm. Flush Flush Drillable area Drillable area Zona forabile Zona forabile Spirit level 2. Install the built-in box according to direction and Spirit level correct spirit level orientation.

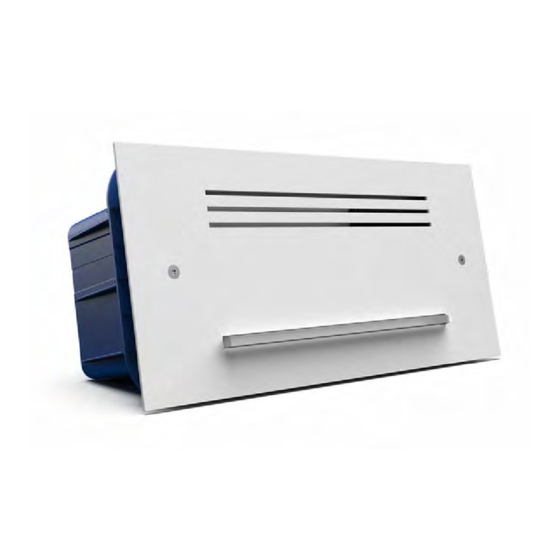

- Page 4 5. CLOSE THE EXTERNAL COVER OF THE SOUNDER USING THE 2 SCREWS (7) DESCRIPTION Sounder mod. GIUDECCA with high luminosity and low consumption multicolor LED flashing light – anti-opening tamper protection – programmable sound and timing – microprocessor self-test of: battery and speaker with anomaly negative output - programming of sounder polarity command and system ON/OFF –...
-
Page 5: Connection Scheme
CONNECTION SCHEME TERMINALS CONNECTIONS –1 NEGATIVE POWER SUPPLY OV GND POSITIVE POWER SUPPLY +13.8V SOUNDER CONTROL ON/OFF - ALARM SYSTEM STATUS NOTICE FLASH RESET / BLOCK SPEAKER INPUT ANOMALY OUTPUT. OPEN COLLECTOR 0V = NO ANOMALY N.C. SELF-PROTECTION AND ANTI-FOAM N.C. -
Page 6: Dip Switches
TECHNICAL MANUAL TAMPER CONNECTION (ANTI-OPENING AND ANTI-FOAM) Connect terminals no. 7 and no. 8 to the tamper line coming from the control panel. LED COMMANDS TERMINALS: =RED, =GREEN, =BLUE, =WHITE A, B, C, D terminals control indipendently the flashing unit to run customisable notifications. Use DIP 8 to set functioning. -
Page 7: Technical Features
WARRANTY All Venitem products are granted against factory or material defects. In order to improve design and quality of the products, Venitem reserves the right to modify them without prior notice. All faulty or defective items must be returned to the supplier. - Page 8 Sede legale e operativa / Headquarters: AZIENDA CERTIFICATA Via del Lavoro, 10 30030 Salzano (VE) - Italy Tel. +39.041.5740374 - Fax +39.041.5740388 www.venitem.com info@venitem.com - UNI EN ISO 14001 UNI EN ISO 9001...
