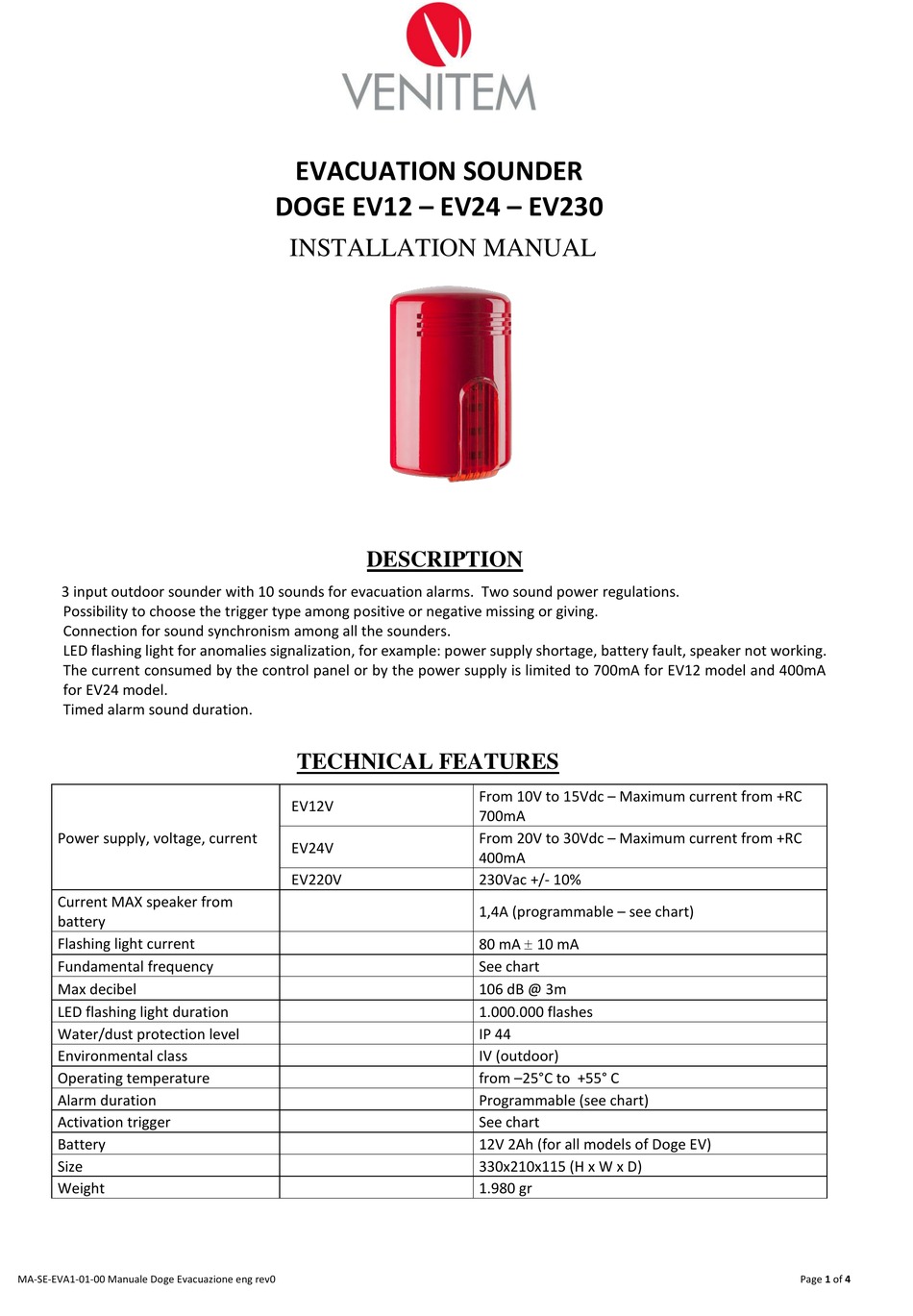

Venitem DOGE EV12 Installation Manual

Evacuation sounder
Hide thumbs Also See for DOGE EV12:

Advertisement

Quick Links

3 input outdoor sounder with 10 sounds for evacuation alarms. Two sound power regulations.
Possibility to choose the trigger type among positive or negative missing or giving.
Connection for sound synchronism among all the sounders.
LED flashing light for anomalies signalization, for example: power supply shortage, battery fault, speaker not working.
The current consumed by the control panel or by the power supply is limited to 700mA for EV12 model and 400mA
for EV24 model.
Timed alarm sound duration.
Power supply, voltage, current
Current MAX speaker from
battery
Flashing light current
Fundamental frequency
Max decibel
LED flashing light duration
Water/dust protection level
Environmental class
Operating temperature
Alarm duration
Activation trigger
Battery
Size
Weight
MA-SE-EVA1-01-00 Manuale Doge Evacuazione eng rev0
EVACUATION SOUNDER
DOGE EV12 – EV24 – EV230
INSTALLATION MANUAL
DESCRIPTION
TECHNICAL FEATURES
EV12V
EV24V
EV220V
From 10V to 15Vdc – Maximum current from +RC
700mA
From 20V to 30Vdc – Maximum current from +RC
400mA
230Vac +/- 10%
1,4A (programmable – see chart)
80 mA  10 mA
See chart
106 dB @ 3m
1.000.000 flashes
IP 44
IV (outdoor)
from –25°C to +55° C
Programmable (see chart)
See chart
12V 2Ah (for all models of Doge EV)
330x210x115 (H x W x D)
1.980 gr
Page 1 of 4
