- Page 1 Instruction Guide 31520 Holman Rancho Cordova, CA 95742 800-343-7486 InstallationSupport@Holman.com 20220928R1 DATE: ________________...
-
Page 2: Table Of Contents
Always check for wires, fuel tanks and lines, brake lines and other important vehicle functionality items prior to drilling and installing all products. Too much weight will greatly reduce the stability of your vehicle. Holman makes no representation or warranty as to the amount of weight your vehicle can safely carry. -
Page 3: Parts List
Instructions – 31520 Parts List Hardware For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM, (PST) Page 2... -
Page 4: Step 1 - Part Replacement

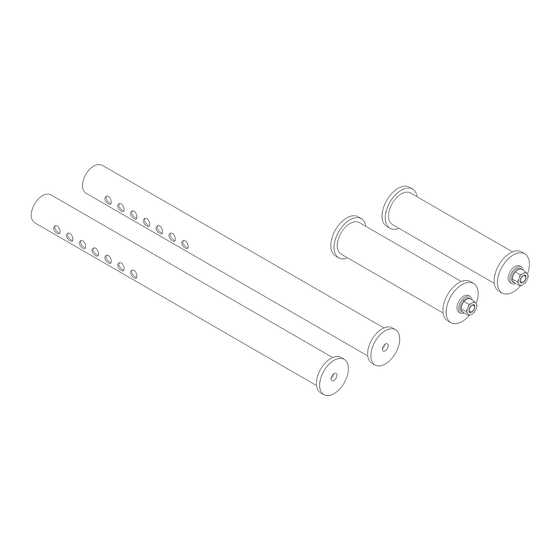

Instructions – 31520 DO NOT EXCEED MANUFACTURERS GVWR OR GAWR AT ANY TIME. Step 1 – Part Replacement Replace 3-1/2” leg extensions in 70020 Leg and Bar kit with 9” leg extensions from this kit. Replace service body telescoping leg in 70020 Leg and Bar kit with service body extended legs from this kit. -
Page 5: Step 4 - Install Support Arm To Front Leg
Instructions – 31520 Step 4 – Install Support Arm to Front Leg Place support arm in desired location between front leg and inside of service body bed side. o As close to 45 degrees as possible is best. o The bends in the support arm should be as flat as possible with the inside of service body. -
Page 6: Step 5 - Install Support Arm To Service Body
Instructions – 31520 Step 5 – Install Support Arm to Service Body Follow the following instructions in place of Step 11 of Pro II Service Body Rack Instructions. Hold support arm in desired installation position. o As close to 45 degrees as possible is best.
