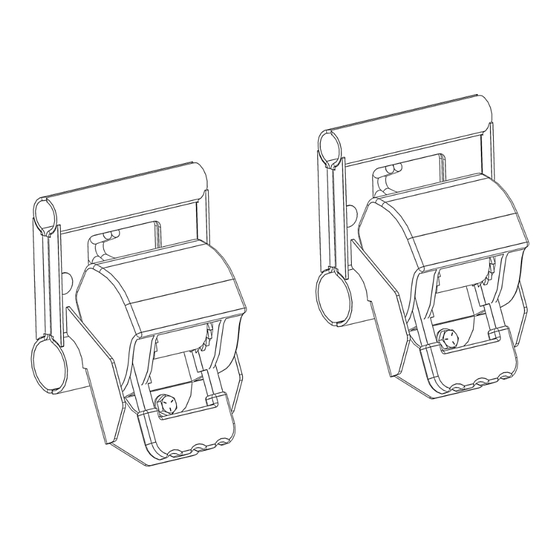

- Page 1 Instruction Guide 31493 Holman Rancho Cordova, CA 95742 800-343-7486 InstallationSupport@Holman.com 20230421R2 DATE: ________________...
- Page 2 Instructions – 31493 PLEASE READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLING, INSTALLING, AND USING THIS PRODUCT. Warning Always check for wires, fuel tanks and lines, brake lines and other important vehicle functionality items prior to drilling and installing all products.
- Page 3 Instructions – 31493 Parts For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 2...
- Page 4 Instructions – 31493 Hardware Step 1 – Determine Mount Locations Determine desired location to install ratchet straps. Various locations may be used. Rack may differ from what is shown below. For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST)
- Page 5 Instructions – 31493 Step 2 – Mount Clamps to Rack Clamp the ladder rack using the two brackets. The bracket with the ratchet strap mount goes to the outside of the rack. Bolt through both brackets in orientation shown using 5/16” x 3/4" carriage bolts, 5/16” flat washers and 5/16”...
- Page 6 Instructions – 31493 Step 3 – Mount Ratchet Straps Place ratchet strap in the orientation shown. Insert the hook of the strap through the square cut-out in the previously installed brackets. Bolt into place using 5/16” x 1” hex head bolt, two 5/16” flat washers and 5/16” lock nuts.
