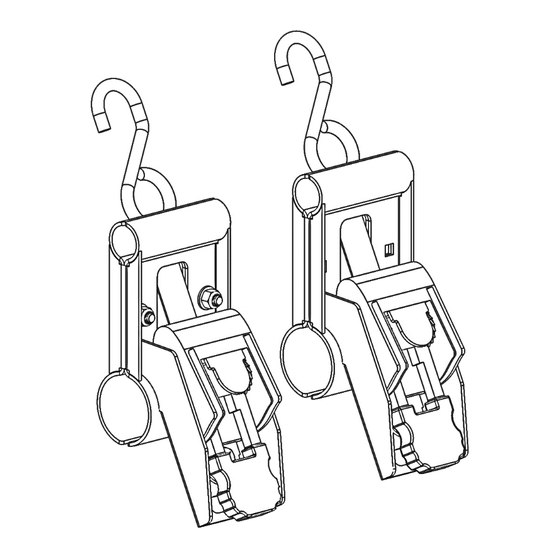

- Page 1 Installation Guide 31503 Holman Rancho Cordova, CA 95742 800-343-7486 InstallationSupport@Holman.com 20230322R2 DATE: ________________...
- Page 2 Before You Begin ..........................1 Parts List .............................. 2 Hardware .............................. 3 Installation ............................3 Before You Begin Read all instructions prior to assembling or installing any Holman product. For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 1...
- Page 3 Instructions – 31503 Parts List For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 2...
- Page 4 Instructions – 31503 Hardware Step 1 – Mount Clamps to Rack Find desired location to attach ratchet strap mounts. Place ratchet side clamp on outside of ladder rack. Place back side clamp in position to pinch ladder rack between the two clamps as shown.
- Page 5 Instructions – 31503 Step 2 – Mount Rachet Straps Place ratchet strap in the orientation shown. Insert the hook of the strap through the square cut-out in the previously installed brackets. Using a 5/16” x 1” hex head bolt, two 5/16” washers, and a 5/16” lock nut, bolt the ratchet strap to the ratchet strap mount as shown.
