3onedata Logicbus NP302T Series Quick Installation Manual

NP302T Series
Serial Device Server
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
www.3onedata.com
Website:
+86 0755-26702688
Tel:
+86 0755-26703485
Fax:
Package Checklist
Please check whether the package and accessories are intact
while using the serial device server for the first time.
1. Serial Device Server 2. Quick installation manual
3. CD 4. Straight-through cable
5. Power adapter 6. Warranty card
7. Qualify certificate
8. RS-232 serial port RJ45 to DB9-Male cable (only for RS-232
device)
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

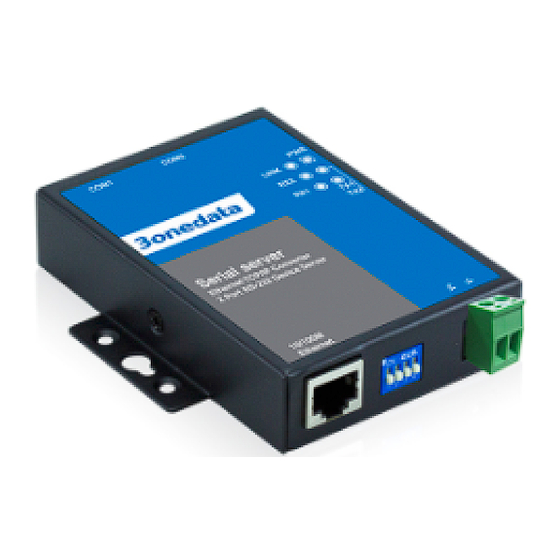

Product Overview
The product is serial device server which can provide serial
device with networking capability instantly. Module as follow:
Model I. NP302T-2D(RS-232) (2 RS-232 serial ports + 1
100M Ethernet copper port)
NP302T-2D(RS-485) (2 RS-485/422 serial ports +
Model II.
1 100M Ethernet copper port)

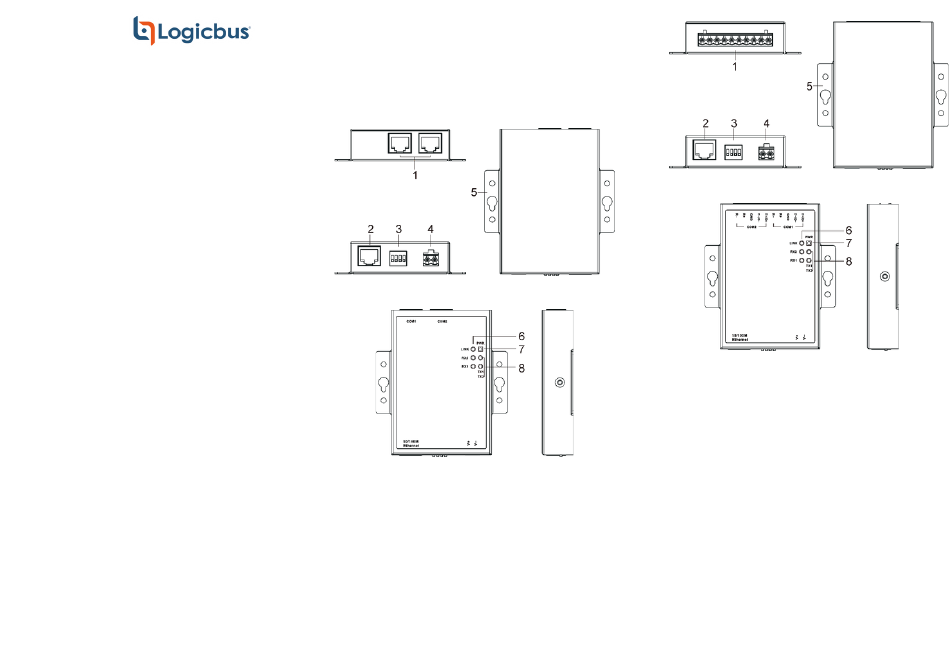

Panel Design
Model I: Top view, Bottom view and Rear view
Model I: Front view and Side view
Nanshan District,
1. RS-232 serial port
2. 10/100Base-T(X) 100M Ethernet copper port
3. DIP switch
4. Power input terminal block
5. Mounting lugs
6. 100M Ethernet copper port status indicator
7. Power input status indicator
8. Serial
indicators
Model II: Top view, Bottom view and Rear view
port transmission and receiving
Model II: Front view and Side view
1. RS-485/422 serial port
2. 10/100Base-T(X) 100M Ethernet copper port
3. DIP switch
4. Power input terminal block
5. Mounting lugs
6. 100M Ethernet copper port status indicator
7. Power input status indicator
8. Serial port transmission
indicators
Mounting Dimension
Unit: mm
data
and receiving data
