www.ti.com
EVM User's Guide: LM70880-Q1 LM70880QEVM

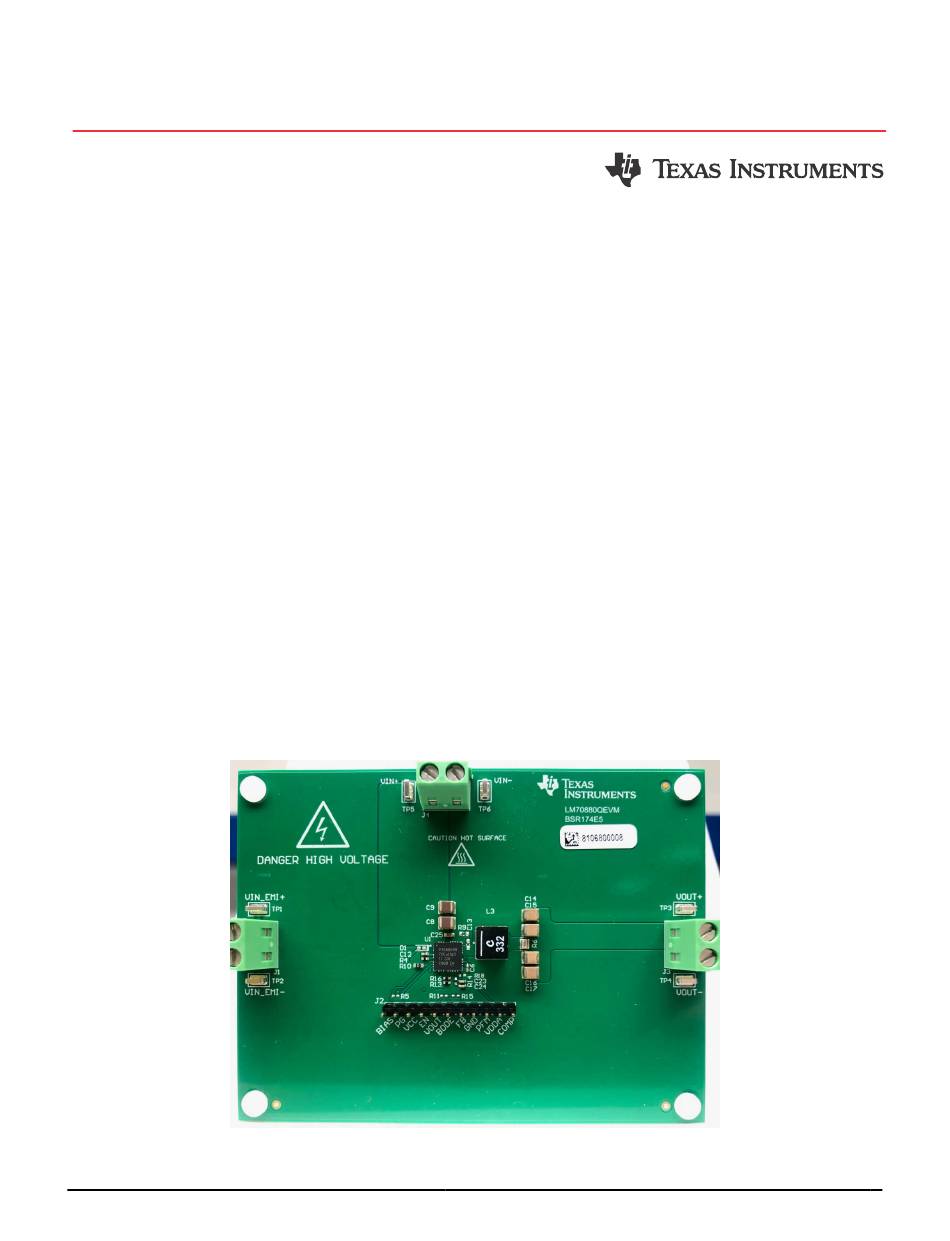

LM70880-Q1 Buck Converter Evaluation Module
Description
The LM70880QEVM high-density EVM is designed to
use a regulated or non-regulated high-voltage input
rail ranging from 8V to 72V to produce a tightly
regulated output voltage of 5V at load currents up to
8A. This wide V
range DC/DC device offers outsized
IN
voltage rating and operating margin to withstand
supply rail voltage transients.
The free-running switching frequency is 400kHz and
is synchronizable to an external clock signal at a
higher or lower frequency. The power-train passive
components selected for this EVM, including buck
inductors and ceramic input and output capacitors,
are automotive AEC-Q200 rated and are available
from multiple component vendors.
Features
Wide input voltage operating range of 8V to 72V
1% accurate fixed 5V, 3.3V, or adjustable output
down to 0.8V
Switching frequency of 400kHz externally
synchronizable up or down by 20%
Full-load efficiency of 93.6% at 12V
48V
IN
260µA operating current at 48V
SNVU872A – SEPTEMBER 2023 – REVISED MARCH 2024
Submit Document Feedback
Applications
and 90.5% at
IN
IN
Copyright © 2024 Texas Instruments Incorporated
Optimized for low EMI
– Dual-random spread spectrum EMI mitigation
– Meets CISPR 25 Class 5 and UNECE Reg 10
EMI standards
Peak current-mode control architecture provides
fast line and load transient response
– Integrated slope compensation adaptive with
switching frequency
– Forced PWM (FPWM) or pulsed-frequency
modulation (PFM) operation
– Optional internal or external loop compensation
Integrated high-side and low-side power MOSFETs
Overcurrent protection (OCP) with hiccup mode for
sustained overload conditions
SYNCOUT signal 180° out-of-phase with internal
clock
Power Good signal with 100kΩ pullup resistor to
VCC
Internal 3ms soft start
Fully assembled, tested, and proven PCB layout
High-current
automotive electronic systems
ADAS
and
body
electronics
Infotainment systems
and
Automotive HEV/EV powertrain systems
LM70880-Q1 Buck Converter Evaluation Module
Description
instrument clusters
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM70880-Q1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments LM70880-Q1

  • Page 1 Description EVM User's Guide: LM70880-Q1 LM70880QEVM LM70880-Q1 Buck Converter Evaluation Module • Optimized for low EMI Description – Dual-random spread spectrum EMI mitigation The LM70880QEVM high-density EVM is designed to – Meets CISPR 25 Class 5 and UNECE Reg 10...
  • Page 2: Kit Contents

    29-pin VQFN package with 6mm × 6mm footprint to enable DC/DC devices with high density and low component count. See the LM70880-Q1 Automotive Buck Converter Optimized for Low EMI and High Power Density Data Sheet for more information.
  • Page 3 GND connection PFM/FPWM selection and Synchronization input VDDA Bias supply connection for the analog circuits COMP Error amplifier output SNVU872A – SEPTEMBER 2023 – REVISED MARCH 2024 LM70880-Q1 Buck Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 4: Output Connections

    7. Decrease load to 0A. Decrease input source voltage to 0V. LM70880-Q1 Buck Converter Evaluation Module SNVU872A – SEPTEMBER 2023 – REVISED MARCH 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 5 The recommended airflow when operating at input voltages greater than 60V is 100 LFM. SNVU872A – SEPTEMBER 2023 – REVISED MARCH 2024 LM70880-Q1 Buck Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 6 0.01 Load (A) The curves with higher efficiency at light load correspond to when diode emulation is enabled (PFM tied to VDDA). LM70880-Q1 Buck Converter Evaluation Module SNVU872A – SEPTEMBER 2023 – REVISED MARCH 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7 SW 20 V/DIV 20 ms/DIV Figure 3-3. Steady State Operation in PFM Mode, V = 48V, I = 0A SNVU872A – SEPTEMBER 2023 – REVISED MARCH 2024 LM70880-Q1 Buck Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 8: Load Transient Response

    VOUT 20 mV/DIV 10 ms/DIV Figure 3-5. Line Transient Response to V = 8V to 72V, I = 4A LM70880-Q1 Buck Converter Evaluation Module SNVU872A – SEPTEMBER 2023 – REVISED MARCH 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 9 VOUT 1 V/DIV PG 5 V/DIV 1 ms/DIV Figure 3-7. EN ON, V = 48V, V Prebiased at 3.3V SNVU872A – SEPTEMBER 2023 – REVISED MARCH 2024 LM70880-Q1 Buck Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 10 = crossover frequency, PM = phase margin. Figure 3-9. Bode Plot, V = 48V, V = 5V, I = 8A Resistive Load LM70880-Q1 Buck Converter Evaluation Module SNVU872A – SEPTEMBER 2023 – REVISED MARCH 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 11: Resistive Load

    3.1.5 CISPR 25 EMI Performance Figure 3-10 presents the EMI performance of the LM70880-Q1 EVM at 48V input with DRSS EMI mitigation disabled. Conducted emissions are measured over a frequency range of 150kHz to 30MHz using a 5µH LISN according to the CISPR 25 low-frequency specification. CISPR 25 Class 5 peak and average limit lines are denoted in red.
  • Page 12 Hardware Design Files www.ti.com 4 Hardware Design Files 4.1 Schematic Figure 4-1 shows the EVM schematic. Figure 4-1. EVM Schematic LM70880-Q1 Buck Converter Evaluation Module SNVU872A – SEPTEMBER 2023 – REVISED MARCH 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 13 4.2 PCB Layout Figure 4-2 through Figure 4-9 show the design of the LM70880-Q1 EVM using a six-layer PCB with 2-oz copper thickness. Figure 4-2. Top Copper (Top View) Figure 4-3. Layer 2 Copper (Top View) SNVU872A – SEPTEMBER 2023 – REVISED MARCH 2024...
  • Page 14 Hardware Design Files www.ti.com Figure 4-4. Layer 3 Copper (Top View) Figure 4-5. Layer 4 Copper (Top View) LM70880-Q1 Buck Converter Evaluation Module SNVU872A – SEPTEMBER 2023 – REVISED MARCH 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 15 Hardware Design Files Figure 4-6. Layer 5 Copper (Top View) Figure 4-7. Bottom Copper (Top View) SNVU872A – SEPTEMBER 2023 – REVISED MARCH 2024 LM70880-Q1 Buck Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 16 Hardware Design Files www.ti.com 4.2.1 Component Drawings Figure 4-8. Top Component Drawing Figure 4-9. Bottom Component Drawing LM70880-Q1 Buck Converter Evaluation Module SNVU872A – SEPTEMBER 2023 – REVISED MARCH 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 17 Hardware Design Files 4.2.2 Multi-Layer Stackup Figure 4-10. Layer Stackup SNVU872A – SEPTEMBER 2023 – REVISED MARCH 2024 LM70880-Q1 Buck Converter Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 18: Bill Of Materials

    Resistor, Chip, 24.9kΩ, 1/16 W, 1%, 0402 TP1, TP2, TP3, TP4, Test Point, Miniature, SMT 5019 Keystone TP5, TP6 IC, LM70880-Q1, 80V, 8A Synchronous DC/DC Buck Controller with LM70880QRRXRQ1 Ultra-Low IQ, VQFN-29 PCB1 PCB, FR4, 6 layer, 2 oz –...
  • Page 19: Compliance Information

    (RoHS) 6 Related Documentation For related documentation see the following: • LM70880-Q1 3.5V to 80V Synchronous Buck DC/DC Converter with Ultra-Low IQ Data Sheet • Reduce Buck Converter EMI and Voltage Stress by Minimizing Inductive Parasitics Analog Applications Journal •...
  • Page 20 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 21 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
  • Page 22 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
  • Page 23 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
  • Page 24 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
  • Page 25 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2024, Texas Instruments Incorporated...
