New Classic Furniture B4627-310 Assembly Instructions

Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,which
may have come loose inside the carton during shipment. Identify and count all items and compare with the PARTS
LIST and/or HARDWARE LIST shown below.
CAUTION: Please read the instructions thoroughly before assembly.
1.We recommend that you assemble this product with the assistance of another person; this will make the
assembly easier, and will help eliminate damage to the product or injury to persons during assembly.
2.Please do not over tighten screws or bolts until the assembly is completed.
3.Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps to assemble
your newly purchased product correctly and efficiently.
PARTS LIST
NO
COMPONENT
A
HEADBOARD
LEFT SIDE FACING (LSF)
B
HEADBOARD LEG
RIGHT SIDE FACING(RSF)
C
HEADBOARD LEG
D
HEADBOARD CROSSBAR
E
FOOTBOARD
F
FOOTBOARD LEG
G
SIDE RAIL
H
SLAT
SLAT SUPPORT LEG
I
Assembly Instructions

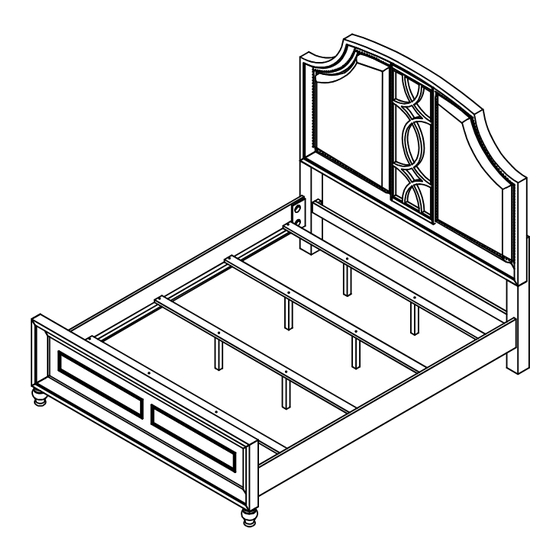

B4627-310 REFLECTIONS 5/0 Q HEADBOARD
B4627-320 REFLECTIONS 5/0 Q FOOTBOARD & SLATS
B4627-330 REFLECTIONS 5/0-6/6 Q/EK PANEL SIDE RAILS
Q'TY
DRAWING
1PC
1PC
1PC
1PC
1PC
2PCS
2PCS
4PCS
8PCS
MADE IN VIETNAM
HARDWARE LIST
NO COMPONENT
1
BOLT Ø5/16"x2''L
2
LOCK WASHER Ø5/16"
3
FLAT WASHER Ø5/16"
4
ALLEN KEY 1/6''
5
THREADED BOLT Ø5/16"x3-1/2''L
6
HALF MOON WASHER
7
HEX NUT Ø5/16"
8
WRENCH 1/2''
9
WOOD SCREW Ø8x1-1/4''L
DRAWING
Q'TY
10PCS
10PCS
10PCS
1PC
8PCS
8PCS
8PCS
1PC
8PCS
PAGE: 1OF4
