Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small
parts, which may have come loose inside the carton during shipment. Identify and count all items and
compare with the PARTS LIST and/or HARDWARE LIST shown below.
Caution: Please read the instructions thoroughly before assembly.
1. We recommend that you assemble this product with the assistance of another person; this will make the
assembly easier, and will help eliminate damage to the product or injury to persons during assembly.
2. Please do not over tighten screws or bolts until the assembly is completed.
3. Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps to assemble your
newly purchased product correctly and efficently.
PARTS LIST
NO:
COMPONENT
A
DRESSER
FRONT LEG
B
RIGHT SIDE FACING
C
(RSF) BACK LEG
LEFT SIDE FACING
D
(LSF) BACK LEG
E
SUPPORT LEG
F
ANTI-TIPPING KIT
STEP 1 Locate the leg box in the bottom drawer.
Assembly Instructions

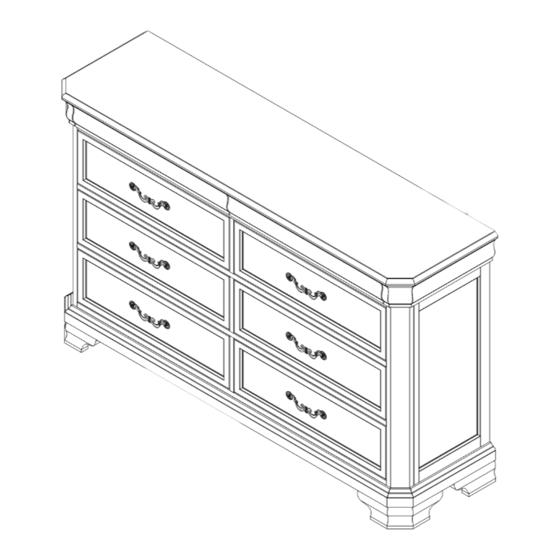

ITEM: B493-050 LYNDHURST DRESSER
SKETCH
Q'TY
1 PC
2 PCS
1 PC
1 PC
1 PC
1 SET
A
MADE IN VIETNAM
HARDWARE LIST
NO:
COMPONENT
1
ALLEN KEY
2
BOLT 5/16"*1-3/4"L
3
LOCK WASHER 5/16"
4
SKETCH
Q'TY
1 PC
4 PCS
4 PCS
4 PCS
PAGE : 1 OF 4
Advertisement
Table of Contents
Related Manuals for New Classic Furniture B493-050
Summary of Contents for New Classic Furniture B493-050
- Page 1 Assembly Instructions ITEM: B493-050 LYNDHURST DRESSER Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose inside the carton during shipment. Identify and count all items and compare with the PARTS LIST and/or HARDWARE LIST shown below.
- Page 2 Assembly Instructions ITEM: B493-050 LYNDHURST DRESSER STEP 2 Place the dresser (A) back down on a clean, soft, and flat surface such as a blanket to ensure the surface is free of any object that could scratch or damage the dresser (A). Then assemble legs (B, C, &...
- Page 3 Assembly Instructions ITEM: B493-050 LYNDHURST DRESSER STEP 3 Assemble support leg (E) to the dresser (A) as shown. MADE IN VIETNAM PAGE : 3 OF 4...
- Page 4 Assembly Instructions ITEM: B493-050 LYNDHURST DRESSER STEP 3 Install the anti-tipping kit following the installation instructions in the package. Anti-Tipping Kit must always be used to prevent the furniture from tipping. MADE IN VIETNAM PAGE : 4 OF 4...
