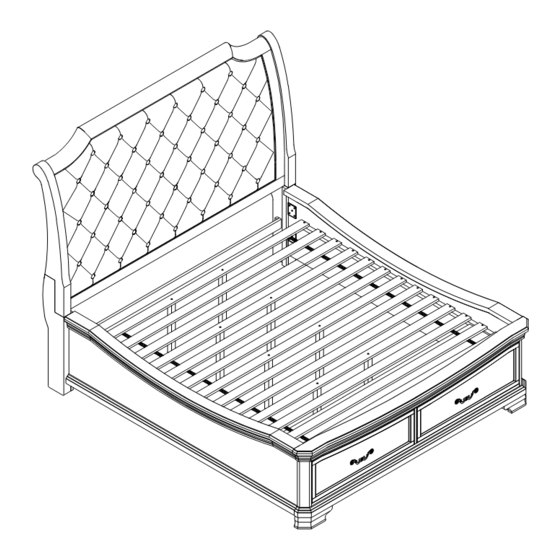

New Classic Furniture LYNDHURST B493B-110 Assembly Instructions

Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small
parts, which may have come loose inside the carton during shipment. Identify and count all items and
compare with the PARTS LIST and/or HARDWARE LIST shown below.
Caution: Please read the instructions thoroughly before assembly.
1. We recommend that you assemble this product with the assistance of another person; this will make the
assembly easier, and will help eliminate damage to the product or injury to persons during assembly.
2. Please do not over tighten screws or bolts until the assembly is completed.
3. Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps to assemble your
newly purchased product correctly and efficently.
PARTS LIST
NO:
COMPONENT
A
HEADBOARD
B
FOOTBOARD
C
D
E
HEADBOARD RAIL
F
SIDE RAIL
G
ROLL-OUT SLAT
H
SUPPORT LEG
I
J
K
Assembly Instructions
ITEM: B493B -110 LYNDHURST 6"6" K HEADBOARD
B493B -128 LYNDHURST 6"6" K STG FOOTBOARD & SLATS
B493B -230 LYNDHURST 6"0" WK RAILS
Q'TY
SKETCH
1 PC
1 PC
1 PC
1 PC
1 PC
2 PCS
1 SET
8 PCS
1 PC
1 PC
2 PCS
NO:
COMPONENT
1
ALLEN KEY
BOLT 5/16"*3-3/4"L
2
BOLT 5/16"*1-1/2"L
3
4 LOCK WASHER 5/16"
5
6
ALLEN KEY
BOLT 5/16"*1-3/4"L
7
8 LOCK WASHER 5/16"
9
BOLT 1/4"*1-1/2"L
10
11 LOCK WASHER 1/4"
12
13
SCREW 8*1"
MADE IN VIETNAM
HARDWARE LIST
SKETCH
Q'TY
1 PC
6 PCS
2 PCS
8 PCS
8 PCS
1 PC
2 PCS
2 PCS
2 PCS
4 PCS
4 PCS
4 PCS
26 PCS
PAGE : 1 OF 5
