Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,which
may have come loose inside the carton during shipment. Identify and count all items and compare with the PARTS
LIST and/or HARDWARE LIST shown below.
CAUTION: Please read the instructions thoroughly before assembly.
1.We recommend that you assemble this product with the assistance of another person; this will make the
assembly easier, and will help eliminate damage to the product or injury to persons during assembly.
2.Please do not over tighten screws or bolts until the assembly is completed.
3.Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps to assemble
your newly purchased product correctly and efficiently.
PARTS LIST
NO
COMPONENT
A
HEADBOARD
LEFT SIDE FACING (LSF)
B
HEADBOARD LEG
RIGHT SIDE FACING(RSF)
C
HEADBOARD LEG
HEADBOARD CROSSBAR
D
E
FOOTBOARD
FOOTBOARD LEG
F
G
SIDE RAIL
H
SLAT
I
SLAT SUPPORT LEG

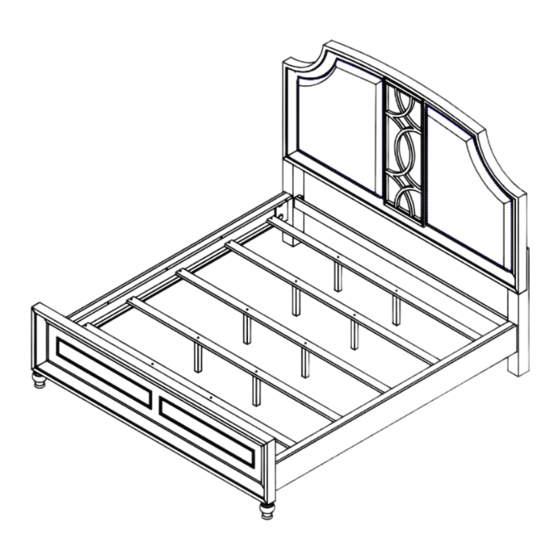

Assembly Instructions
B4627-110: REFLECTIONS 6/6-6/0 EK/WK HEADBOARD
B4627-120: REFLECTIONS 6/6-6/0 EK/WK FOOTBOARD & SLATS
B4627-230: REFLECTIONS 6/0 WK PANEL SIDE RAILS
Q'TY
DRAWING
1PC
1PC
1PC
1PC
1PC
2PCS
2PCS
5PCS
10PCS
MADE IN VIETNAM
HARDWARE LIST
COMPONENT
NO
1
BOLT Ø5/16"x2''L
2
LOCK WASHER Ø5/16"
3
FLAT WASHER Ø5/16"
4
ALLEN KEY 1/6''
5
THREADED BOLT Ø5/16"x3-1/2''L
6
HALF MOON WASHER
7
HEX NUT Ø5/16"
8
WRENCH 1/2''
9
WOOD SCREW Ø8x1-1/4''L
DRAWING
Q'TY
10PCS
10PCS
10PCS
1PC
8PCS
8PCS
8PCS
1PC
10PCS
PAGE: 1OF4
Advertisement
Related Manuals for New Classic Furniture REFLECTIONS B4627-110
Summary of Contents for New Classic Furniture REFLECTIONS B4627-110
- Page 1 Assembly Instructions B4627-110: REFLECTIONS 6/6-6/0 EK/WK HEADBOARD B4627-120: REFLECTIONS 6/6-6/0 EK/WK FOOTBOARD & SLATS B4627-230: REFLECTIONS 6/0 WK PANEL SIDE RAILS Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,which may have come loose inside the carton during shipment. Identify and count all items and compare with the PARTS LIST and/or HARDWARE LIST shown below.
- Page 2 Assembly Instructions B4627-110: REFLECTIONS 6/6-6/0 EK/WK HEADBOARD B4627-120: REFLECTIONS 6/6-6/0 EK/WK FOOTBOARD & SLATS B4627-230: REFLECTIONS 6/0 WK PANEL SIDE RAILS STEP 1 Assemble LSF HB Leg (B) and RSF HB Leg (C) to Headboard (A) by using Allen Key (4) with hardware 1,2, and 3.
- Page 3 Assembly Instructions B4627-110: REFLECTIONS 6/6-6/0 EK/WK HEADBOARD B4627-120: REFLECTIONS 6/6-6/0 EK/WK FOOTBOARD & SLATS B4627-230: REFLECTIONS 6/0 WK PANEL SIDE RAILS STEP 3 Assemble the Footboard Legs (F) to the Footboard (E). STEP 4 Assemble side rails (G) to Headboard Legs (B & C) and Footboard (E) by using Wrench (8) with hardware 6,7,8.
- Page 4 Assembly Instructions B4627-110: REFLECTIONS 6/6-6/0 EK/WK HEADBOARD B4627-120: REFLECTIONS 6/6-6/0 EK/WK FOOTBOARD & SLATS B4627-230: REFLECTIONS 6/0 WK PANEL SIDE RAILS STEP 5 Assemble the Slat Support Legs (I) to the Slats (H). Then adjust the leveler on the Slat Support Legs(I) to level with the floor. Leveler STEP 6 Assemble the Slats (H) to the Side Rails (G) by using a screwdriver with hardware 9.
