User Manual
Customer Service
US: 1-800-645-2986
PARTS
Solid Carousel Top
ASSEMBLY INSTRUCTION
Fig. 1
Step 1. Remove the Rotating Ring from the Pallet Carousel Skid Positioner. See Fig. 1
Step 2. Install the Solid Carousel Top by aligning the center post of the turntable with the center hole of
the platform. See Fig. 2, 3
Manual de Usuario
Servicio de atención al Cliente
US: 1-800-645-2986

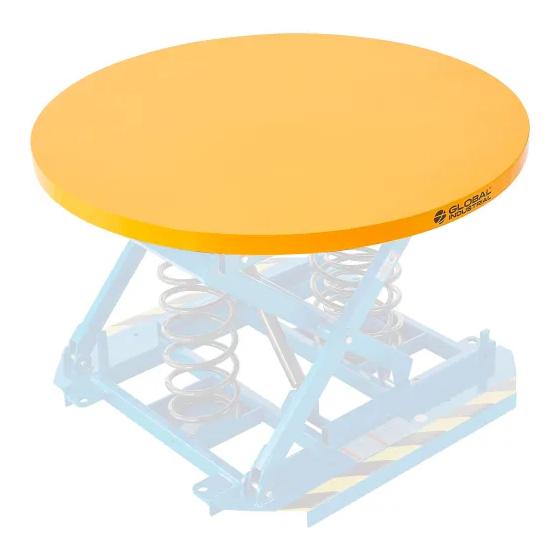

SOLID CAROUSEL TOP
Pallet Carousel
Rotating Ring
Fig. 2
1
Manuel de l'Utilisateur
Service à la clientèle
Canada: 888-645-2986
Model no. 293255
Model no. 988295
Pallet Carousel with Rotating Ring
sold separately.
Fig. 3
