globalindustrial.ca
Distribucion Industrial Globales S DE RL DE CF
User's manual
Manual del usuario
Manuel de l'utilisateur
Customer Service
Servicio de atención al Cliente
Service à la clientèle
México: 01.800.681.6940
Canada: 888-645-2986
US: 1-800-645-2986

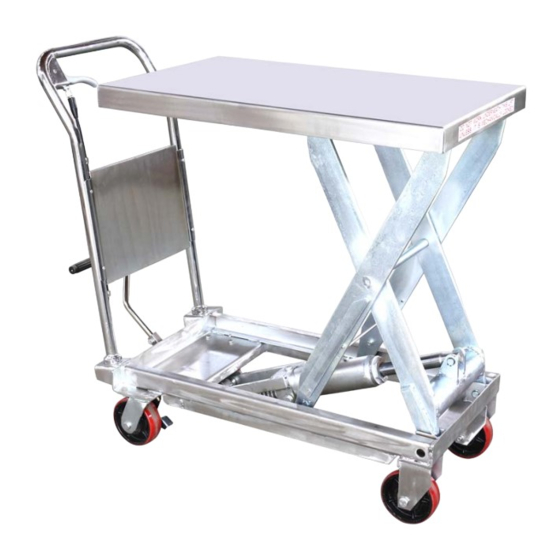

Lift Table
Model 989011
Note: Owner and operator MUST read and understand
these operating instructions before using this lift table.
1
Advertisement
Table of Contents
Related Manuals for Global Industrial 989011
Summary of Contents for Global Industrial 989011
- Page 1 Manuel de l'utilisateur Customer Service Servicio de atención al Cliente Service à la clientèle México: 01.800.681.6940 Canada: 888-645-2986 US: 1-800-645-2986 Lift Table Model 989011 Note: Owner and operator MUST read and understand these operating instructions before using this lift table.
- Page 2 User’s Manual Lift Table TABLE OF CONTENTS 1. Warnings............2 2. Daily Inspection ..........3 3. Operating Lift Table ........3 4. Specifications..........4 5. Service Instructions ........4 6. Part List of Table .......... 5 7. Part List of Pump..........6 Thank you for using this lift table.
- Page 3 The table lowers slightly after reaching the highest position. MAXIMUM CAPACITY OF TABLE 989011 1100 lbs NOTE: The hydraulic cylinder is designed to hold table. As is the nature of hydraulic systems, table lowers very slowly over an extended period of time.
- Page 4 Table Wheel Weight Model (lbs) (in) Height (in) (in) (lbs) 989011 1100 11 - 34.6 32x19.7/33.5x19.7 Φ5 5. Service Instructions 5-1. Change hydraulic oil every 12 months. 5-2. Lubricate each point described below every month: (1) Fitting of cylinder---Oil (2) Roller friction surface---Grease...
- Page 5 User’s Manual Lift Table 6. Part List of Table Description Qty. Description Qty. Handle Grip (Cr-Pl) Cushion Bolt Control Handle Washer Elastic Pin Elastic Washer Bolt h Hole Protecting over Jacket Pedal Bar (Cr-Pl) Pull Rod Table(304) Bolt Retaining Ring Washer Roller Elastic Washer...
- Page 6 User’s Manual Lift Table 7 . Part List of Pump Description Quantity Description Quantity Seal sher Spring Pump Cylinder Spindle of Safety Valve Dust Ring Steel Ball Y - Seal O-Ring Pump Piston Seat of Pumping Valve Spring Spindle of Pumping Valve Spring Cap Spring Retaining Ring...
