ASSEMBLY INSTRUCTIONS & PARTS MANUAL

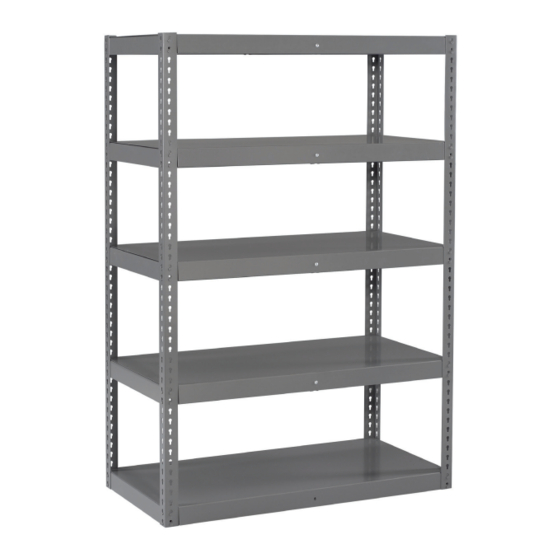

Heavy-Duty Reinforced High Capacity Shelving
Some parts may have sharp edges. CARE must be taken when handling various pieces to avoid injury.
For safety, wear a pair of work gloves when assembling or performing any maintenance on the unit.
Global Industrial, 111 Harbor Park Dr., Port Washington, NY 11050 • (800) 645-1232 • service@globalindustrial.com
36" Wide, 46" Wide & 60" Wide Units
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE
GENERAL SAFETY INFORMATION
GENERAL SAFETY INFORMATION
LOAD CAPACITIES
LOAD CAPACITIES
PER SHELF LEVEL*
PER SHELF LEVEL*
WT. CAPACITY
WT. CAPACITY
UNIT SIZE
UNIT SIZE
36w x 18d
4000 lbs.
36w x 24d
4000 lbs.
4000 lbs.
48w x 18d
48w x 24d
4000 lbs.
60w x 24d
3250 lbs.
*Total Unit Capacity not to exceed 13,000 lbs.
Extra shelves are also available (RXHS-wwdd).
