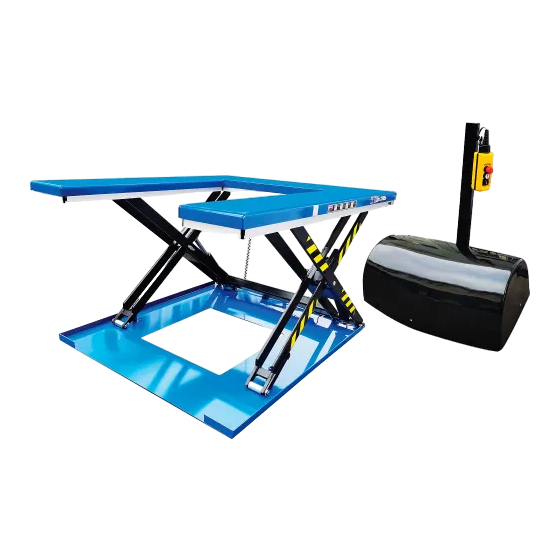

- Page 1 USER MANUAL U-Shape Power Scissor Lift Table MODEL NO. 293232 Owner/Operator must read and understand this manual...
- Page 2 WARNING! If operating the lift table improperly, a person may be seriously injured. Therefore, operate properly according to the following instruction ◇ Read & thoroughly understand the Instruction Manual completely before using. Follow all safety instructions strictly. ◇ It is necessary to check all safety devices before operation. ◇...
- Page 3 CAUTION! If operating the lift table improperly, person injured. Therefore, operate properly according to the following instruction. ◇ The lift table is a movable lifter designed to lift or lower rated load. Do not use it for other purpose. ◇ Do not allow a person to operate the lift table, who does not understand its operation.
-
Page 4: Daily Inspection
3.DAILY INSPECTION Daily inspection is effective to find the malfunction or fault on the lift table. Before operation, check the lift table according to the following points. CAUTION! Do not use the lift table if any malfunction or fault is found. ◇... - Page 5 ■ LOWERING THE TABLE WARNING! Do not put foot or hand in scissors mechanism. ◇ Push the DOWN button and the table will lower. ◇ Loose the DOWN button and the table will stop. NOTE ◇ The table is equipped with an aluminum guard to avoid accidental danger.
-
Page 6: Specifications
5.SPECIFICATIONS Model 293232 Capacity (lbs.) 2200 Collapsed Height (in.) 3.35 Max. Height (in.) 33.50 Platform Length (in.) Platform Width (in.) Approx. Lifting Time with Rated Capacity (Sec) 25~35 Horsepower (HP) 2P/1.5KW Motor Voltage (V) Net Weight (lbs.) 6.HYDRAULIC CIRCUIT & ELECTRIC PRINCIPLE DIAGRAM See Figure 1 &... - Page 7 Type Name Description JBK3-110V/0-18V-24V 50VA Control electricity source LB01 JBK3-220V/0-18V-24V 50VA transformer Fast melter Fast melter Whole bridge silicon rectifier RS-507 5A Resistor 1.8K/1W Electrolysis capacitor 470uF/50V KM01 AC contactor 3TB4022 KA1 KA2 KA3 Middle relay SRC-24VDC-SH D2 D3 D4 D5 D6 Silicon commute diode IN4007 Oil pump solenoid valve...
- Page 8 7.SERVICE INSTRUCTIONS ■ Do routine check of fasteners, packing and oil leaking. ■ Do routine check of the function of the lift table. ■ Before service the lift table, make sure to turn off the AC power supply. ■ After service it is necessary to check the function of the lift table again.
-
Page 10: Troubleshooting
8.TROUBLE SHOOTING Note: Before service it is necessary to screw two eyebolts into relevant screw-holes on the basis lest the table lowers accidentally. Trouble Cause Remedy ◇ Eyebolt been ◇ Remove eyebolt removed ◇ Table cannot Correct AC voltage phrase ◇... - Page 13 PART LIST MODEL NO. 293232 Description Description Table Electromagnetic valve coil Width safety guardⅠ axle Connected-board Roller Long safety guardⅠ Safeguard O-ringφ10.6x2.65 Washer 20 Retaining ring for axle 20 Long safety guardⅡ Eyebolt Width safety guardⅡ Chassis Width safety guardⅢ...
- Page 14 73-16 Socket for fuse Screw M4×16 Bushing Washer 4 Roller Spring washer 4 O-ring D24x2.4 Screw Middle roller Pipe-joint Roller axle Seal ring 14 Branch box Hydraulic power pack Screw M3x10 Spring washer 10 Spring washer 3 Screw M10x20 High pressure hose Ⅰ Washer 3 Control switch Plug...
