Assembly Instructions
Customer Service
US: 1-800-645-2986
Mounting the gate to a post:
1. Place u-bolts over the end of the post and through the
base of the gate.
Use the square bolt (H1) for square tube or angle iron.
Use the round bolt (H2) for round tube.
2. Firmly tighten nuts (H3) to secure gate to the post.
H1 For
square tube
H2 For
round tube
Instrucciones de Ensamblaje
Servicio de atención al Cliente
US: 1-800-645-2986

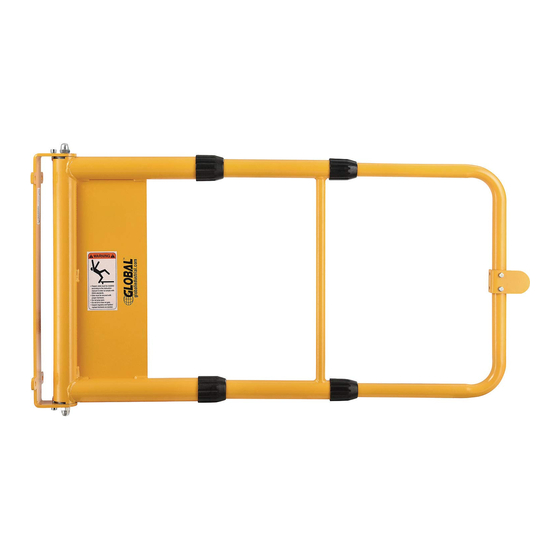

Safety Gate
Model 708360YL
H3
1
globalindustrial.ca
Directives d'assemblage
Service à la clientèle
Canada: 888-645-2986
CONTENTS
Ref. Qty.
Description
1
1
Safety Gate
2
1
Clapper Plate
H1
2
M8 x 2.5" x 4.5" Square U-Bolt
H2
2
M8 x 2.5" x 4.5" Round U-Bolt
H3
4
M8 Lock Nut
1
Shown with square
tube hardware
2
080119
