- Page 1 Quick Start Guide The information in this manual is subject to change without notice. Rexing All Rights Reserved www.rexingusa.com 202307REV1...
-
Page 2: Month Warranty
Activate Your 18-Month Warranty Choose Your & FREE Gift! Activate within 30 days of purchase to claim your free gift and extend your limited 12-month warranty to 18 months. Scan The QR To Activate & Select Your Free Gift https://www.rexingusa.com/productreg/... - Page 3 1. Overview 1. Overview Thank you for choosing REXING! We hope you love your new product as much as we do. If you need assistance, or have any suggestions to improve it, please contact us. You can reach us care@rexingusa.com or call us at (203)800-4466.
-
Page 4: What's In The Box
Safety Guide Quick Start Guide Paste the electrostatic film on the front windshield Paste the bracket into this circular area V3C Quick Start Guide Safety Guide 3M Adhesive Mount Cable Adhesive Spacer Cable Management Tool Rexing V3C Dashboard Camera Car Power Connector (12ft) -
Page 5: Camera Overview

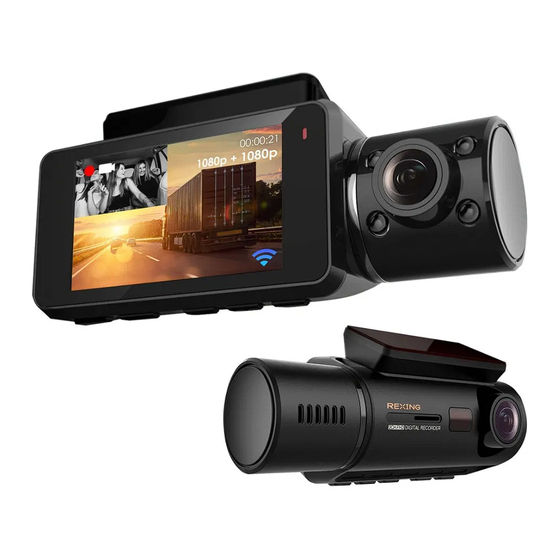

3. Camera Overview Front The camera is recording when the LED is flashing red. The device is charging or powered on when the LED is solid red. Side 10 9 Bottom 4 IR Lights Power Button / Screen Toggle Button Menu Button / Mode Button Up Navigation Button / Front and Rear Switch Button Down Navigation Button / Mic Button... - Page 6 Screen Icons Exposure Value Wi-Fi (Not Conntected) WDR Mode (On) Recording Recording Time Standby Status (Current Clip) G Sensor Level Recording (On) Loop Recording Time Video Resolution IR Lights Battery Charging Memory Card (Inserted) MIC (Off) Wi-Fi (Connected) Memory Card Remaining Time MIC (On) Current Date...
-
Page 7: Installation
4. Installation Step 1 Installing the Electrostatic Stickers 1.1 Prepare Your Windshield Thoroughly cleanse your windshield with either water or alcohol. Follow this by wiping it dry using a clean, dry cloth to ensure a spotless surface. 1.2 Position the Sticker Next, carefully peel off the protective film from the electrostatic sticker. -
Page 8: Insert The Memory Card
Orient the mount as shown Step 3 Insert the memory card The Rexing V3C accepts [Class 10/UHS-3 or higher] Micro SD memory cards up to 256GB. You will need to insert a memory card before you can begin recording. Before inserting or removing a memory card, first ensure you’ve powered down the... - Page 9 Power the Camera and Format the Memory Card Power on the camera by connecting the charger to the car cigarette lighter and camera. To ensure the V3C records to your memory card properly and without error. Before you start using a new memory card, you must format the card within the camera using the format function.
- Page 10 To format the memory card, make sure you have inserted your memory card, then turn on the device by connecting to a power source. Press OK to stop recording. Then press the MENU button twice to enter the System Setup Menu. Press the Menu button twice Press the OK button to...
- Page 11 Step 5 Installing the Camera onto the windshield Place the camera on the mount and carefully route the power cable around the windscreen and tuck in under the trim. Plug the car charger cable to a 12V DC power outlet or the car cigarette lighter.
-
Page 12: Basic Operation
5. Basic Operation Device Power The device is automatically powered on when plugged into a 12V accessory socket or cigarette lighter and received a charge (i.e. the vehicle is started). To turn the device on manually, press and hold the Power button until the welcome screen appears. -
Page 13: Video Recording
Video Recording The camera will automatically start recording when the device receives charge. The LED lights and red dot will blink device when recording. Press the OK button to stop recording. Video Playback Playback of videos can be done on the device or a computer. To playback a video on the device, toggle to the Playback mode. - Page 14 To playback a video on the computer, either use an SD card adapter or connect he device to the computer directly using the USB cable. To playback a video using an SD card adapter, remove the memory card and insert it into an SD card adapter. Place the adapter in the computer.
- Page 15 Wi-Fi Connect Step 1 With your dash cam powered on, hold the UP navigation button to enable the Wi-Fi function. The Wi-Fi name (aka the SSID) and password for the dash cam should be displayed on-screen. Step 2 On your mobile device, navigate to your Wi-Fi settings. Connect to your dash cam's Wi-Fi by tapping its name when it appears.
- Page 16 Step 3 Once you're connected to the dash cam, open the Rexing Connect app on your mobile device. Please select "Keep Trying Wi-Fi" if you see the notification on the right. Step 4 In the app, hit the "Connect" button to connect to your dash cam, allowing you to access live view and view/download your recordings.
- Page 17 Easily download the app by scanning the QR code below or search via the App Store or Google Play. Wi-Fi Connect Troubleshooting If you bring up the Rexing connect app and cannot connect your phone to the dash cam please go to https://www.rexingusa.com/wifi-connect/...
-
Page 18: Taking Photos
Taking Photos To take a photo, stop video recording and toggle to the Photo Mode. Press the OK button to take a photo. To view a photo, stop video recording and toggle to the Playback Mode. Press UP and DOWN navigation buttons to toggle through your photos. - Page 19 Parking Monitor (Parking Surveillance Mode) Parking monitor provides surveillance on your parked vehicle. When the engine is off, the hardwire kit is used to provide continuous power and protect your car battery from being discharged. Option 1: Vibration Detection To enable the Parking Monitor, you'll need to connect it with a Smart Hardwire Kit (sold separately).
-
Page 20: Option 2: Motion Detection
WITHOUT connecting a smart hardwire kit. They may cause a malfunction. Option 2: Motion Detection To use this feature, you need to connect it with a Rexing Intelligent Hardwire Kit (sold separately). Make sure that the Parking Mode is turned off on your dash cam, otherwise it may cause a malfunction. -
Page 21: Warranty And Support
6. Warranty & Support Warranty The Rexing V3C Dash Cam comes with a full 12-month warranty. If you register your product on our official site (https://www.rexingusa.com/support/registration), you can extend the warranty to 18 months. Support If you have any questions regarding your product, please do not hesitate to contact us at care@rexingusa.com, or call us at... - Page 22 FCC ID: 2AW5W-V3 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
