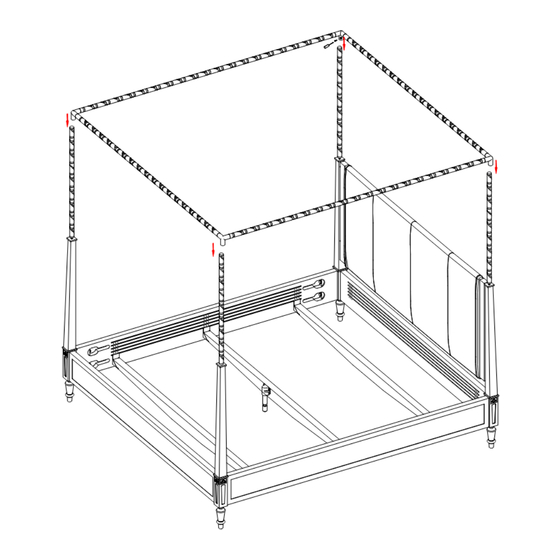

SIG-419-102R/SIG-419-122C/SIG-419-122H/SIG-419-127F QUEEN BED
ASSEMBLY INSTRUCTIONS
TWO (2) PEOPLE AND PHILIP'S SCREWDRIVER REQUIRED
PLEASE UNPACK ALL PARTS AND CHECK AGAINST PARTS LIST ON THIS INSTRUCTION SHEET BEFORE DISCARDING PACKING AND CARTON!!
1) Connect the side rails and headboard / footboard by bolt (F).
2) Assemble the side rails and headboard / footboard using the curved washer (A), flat washer (B), lock
Bolt (C).
3) Attach the support legs to slats using Screw (D) Adjust the support leg if necessary as shown in Diagram B.
4) Attach the adjustable slats system (H) to the side rails and locked to a needed position,using Philips
screw drive to tighten the screw (G) if necessary. Attach the assembled slats & support leg to the adjustable
slats system using Philips screw drive to tighten the screw (G) as shown in Diagram C.
5) Attach canopy on top of post
*** NOTE KEEP THIS SHEET!!! ***
In the unlikely event that you would need a replacement part for your table,
please contact your local authorized Schnadig International dealer. If you
need replacement hardware quickly, it could be purchased from your local
hardware store.
SIG-419
KG BED
Part Description
Part No.
Headboard (1)
SIG-419-122H
Footboard (2)
SIG-419-127F
Side rail (3)
SIG-419-102R
Slat (4)
SIG-419-127-F-3067
Canopy (5)
SIG-419-122C
RTA Hardware (6)
LAFAYETTE
RTA Hardware
NO.
Hardware List
QTY
Halfmoon washer
A
1
Washer
B
1
C
Bolt
2
A
Support post
3
B
Support Bracket
1
D
Steel Screw
1
Q'ty
8
8
8
1
4
50
Page 1 of 2
SIG-419-122C
2
SIG-419-122H
3
SIG-419-127F
4
SIG-419-102R
1
Created on:2019/10/23
