Lafayette Tenera Auto-Lift Installation Instructions

Sheer shadings
Hide thumbs Also See for Tenera Auto-Lift:

Advertisement

Quick Links

Auto-Lift, Continuum, Sure-Lift, Cordless, System II,
Thank you for choosing Tenera Sheer Shadings. With proper installation and care, your new shades
will provide many years of beauty and performance.

Tools Needed

Power Drill, 1/4" Driver and drill bits
Tape Measure
Flat blade Screwdriver
Phillips Screwdriver
Pencil
Level
2" – 3"
Space Evenly
Top limits should be equal
Jamb
distance from the ends of headrail.
Standard Shade
2" – 3"
Space Evenly
2" – 3"
Jamb
2-On-1 Headrail (Continuum and Sure-Lift Only)
Top View
Shadings with Battery Wand
Jamb
Space Evenly
2"
Top limits should be equal
distance from the ends of headrail.
Tenera Sheer Shadings
EZ Charge, and Auto-Wand
(Continuum shown)
Space Evenly
Space Evenly
Space Evenly
2" – 3"
Panel Split
Top Limits
18" Minimum for Battery Wand
Space Evenly

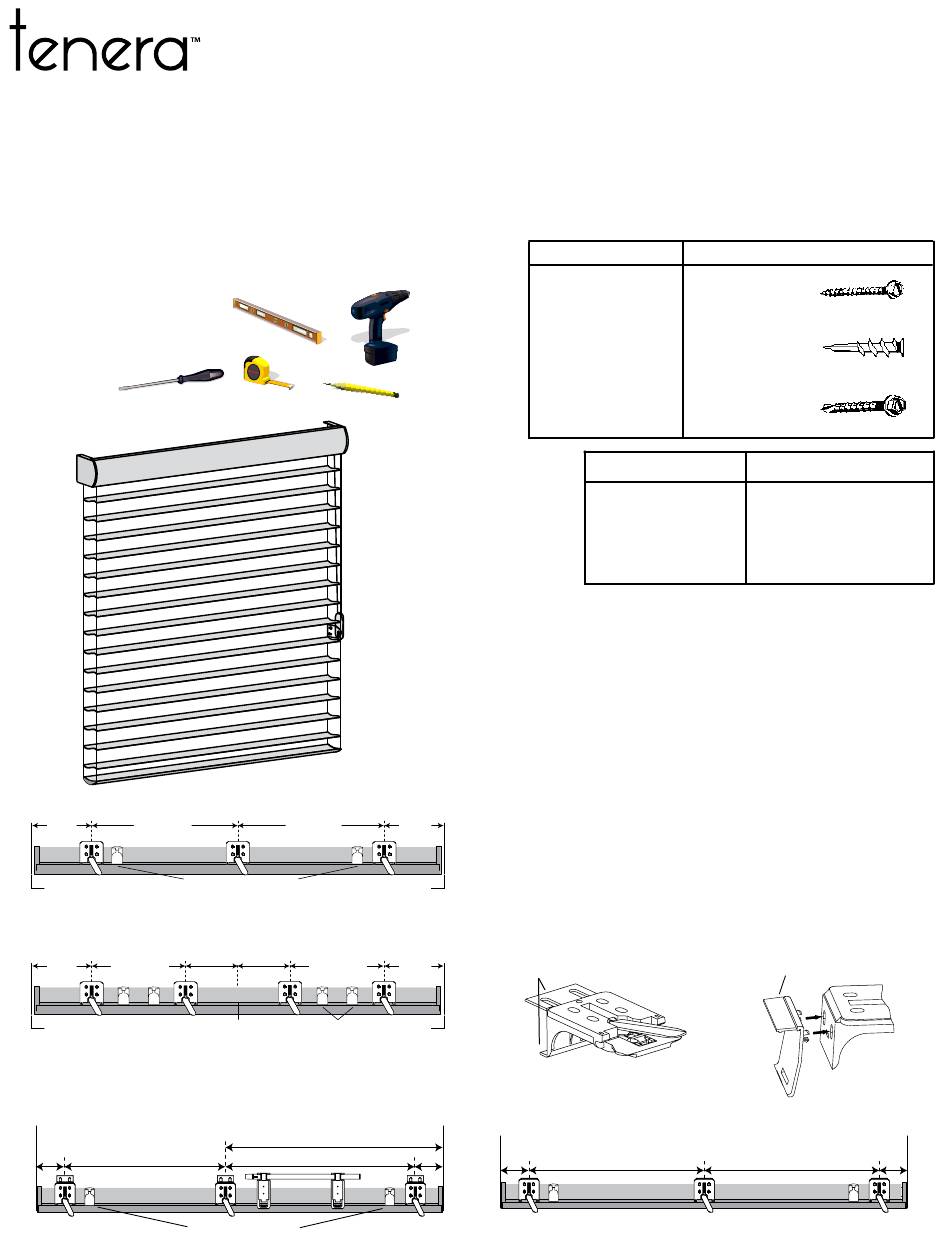

Installation Instructions
Mounting Surface
Wood
Drywall, Plaster
Metal

INSTALL THE BRACKETS

Inside Mount
- Measure 2" from each jamb for bracket location. If more than two
brackets came with your order, space additional brackets evenly
between the two and mark their location. Allow a minimum of 18"
between the brackets at the motor end for the battery wand (Auto-Lift).
- Determine whether or not to remove any tabs from the installation
brackets. If using a back cover, use pliers to remove both tabs from
the brackets. If using battery wand without back cover, leave both
tabs on brackets.
If using a satellite battery pack or DC power supply without a back
cover, remove the top tab (Auto-Lift).
2" – 3"
- Mount brackets using the screws provided. Be sure the front edges of
the brackets are aligned and level to each other. Shim the brackets if
necessary. Important: Do not overtighten the screws.
Jamb
2" – 3"
Removable Tabs
Jamb
Installation Bracket
Shadings with Optional Satellite Battery Pack or DC Power Supply
Jamb
Jamb
2"
Space Evenly
2"
Motor
Side
Auto-Lift Shade
Fastener
#6 Hex Head
Provided
Wall Anchors
Not Provided
Sheet Metal
Not Provided
Shade Width
Brackets Required
12" - 36"
36 1/16" - 79"
79 1/16" - 96"
96 1/16" - 108"
Remove tab if using a satellite
battery pack or DC power supply.
Back
Cover
Bracket
Space Evenly
Tenera Installation Instructions
2
3
4
5
Installation
Bracket
Jamb
2"
Motor
Side
