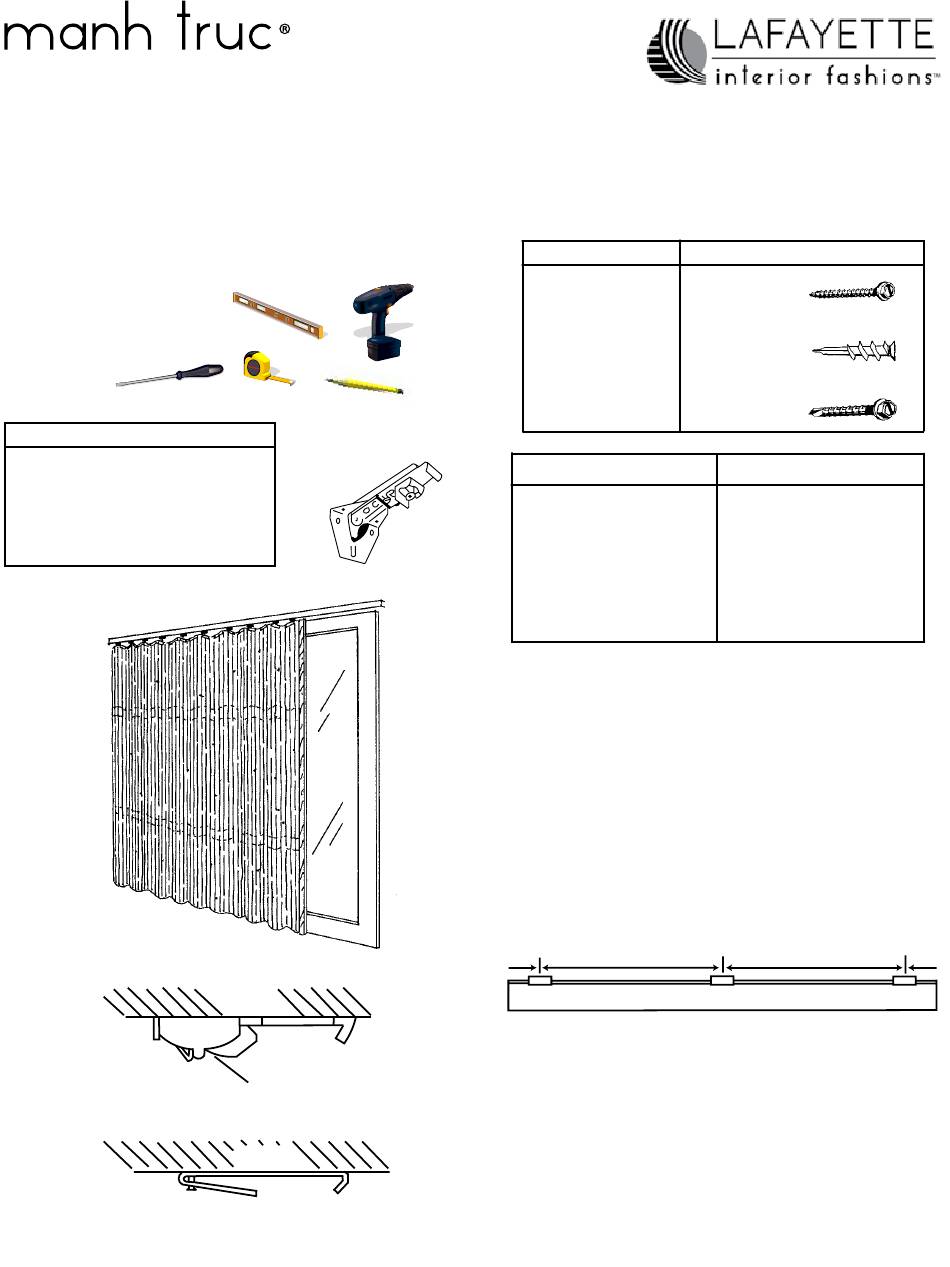

Lafayette Manh Truc Installation Instructions

Thank you for choosing Lafayette's Panel Drape. With proper installation and
care, your new panel drape will provide many years of beauty and performance.

Tools Needed

Power Drill, 1/4" Driver and drill bits
Tape Measure
Flat blade Screwdriver
Phillips Screwdriver
Pencil
Level

Parts List

Screws: 1 1/2" into wall
3/4" into headrail
3" for 1" projection
Cord Cleat: 1 per standard shade
2 per TD/BU shade
White Bracket
Screw In
Do Not Tighten

Installation Instructions

Panel Drape
Ceiling
Screw In
Do Not Tighten
Ceiling
Brown Bracket
Mounting Surface
Wood
Drywall, Plaster
Metal
Panel Width
Up to 48 1/4"
48 3/16" - 60 1/16"
60 1/4" - 72 1/16"
72 1/4" - 84 1/16
84 1/4" - 96 1/16"
96 1/4" - 108 1/16"
108 1/4" - 120"

BEFORE INSTALLING

- Remove shade from the package. Keep all packaging
until the shade operates to your satisfaction. Contents
of your hardware package may vary depending on
options chosen. Additional fasteners may be needed
based on your specific mounting surface.

INSTALL THE BRACKETS

Wall Bracket
- The center of the end brackets should be marked on
the mounting surface 2" in from the ends of the
headrail. Space remaining brackets evenly between
the end brackets. Adjust placement to avoid any
obstructions that may occur.
2"
Space Evenly
- Center a bracket over a mark on the mounting
surface and making sure bracket is level and aligned,
attach the bracket using the screws provided. Repeat
the process for the rest of the brackets.
Ceiling Bracket - White and Brown
- Center a bracket over a mark on the mounting
surface and drill a screw up through the hole in the
bracket. DO NOT tighten the screw. Repeat the
previous steps for the remaining brackets.
Fastener
#6 Hex Head
Provided
Wall Anchors
Not Provided
Sheet Metal
Not Provided
Brackets Required
5
6
7
8
9
10
11
Space Evenly
.
2"
