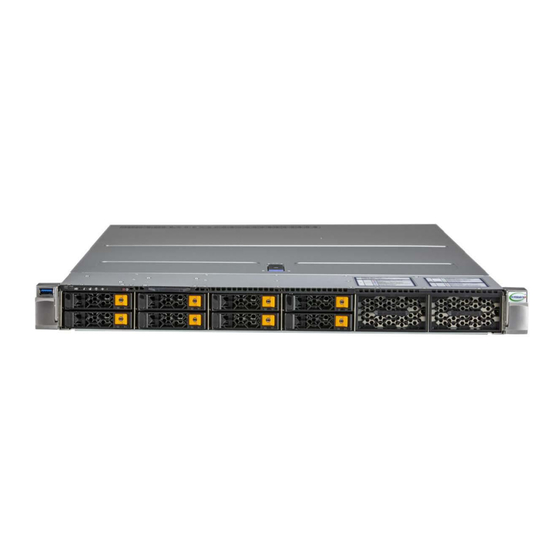

- Page 1 WEEE DISASSEMBLY INSTRUCTIONS SUPERMICRO AS -1125HS-TNR ENCLOSURE Abstract This document provides clear guidance for end-of-life recyclers on how to identify and disassemble reportable materials in compliance with the Waste Electrical and Electronic Equipment (WEEE) directive.
-
Page 2: Table Of Contents
Table of Contents Product Views ............................1 Reportable Materials on AS -1125HS-TNR ....................3 Disassemble Instructions .......................... 4 3.3 Step-by-Step Disassembly Instructions ....................6 Removing Cable and Chassis Top Cover ..................6 Removing Hard Disk Drive (HDD) / Solid State Drive (SDD) ............7 Removing Power Supply ....................... -
Page 3: Product Views
1. Product Views Front view Rear view Product construct view Hard Disk Drive/ Solid State Drive Backplane Fans... - Page 4 Power Supply Riser Card Riser Bracket Bracket Add-On Module AIOM Cable Motherboard DIMM Processor...
-
Page 5: Reportable Materials On As -1125Hs-Tnr
2. Reportable Materials on AS -1125HS-TNR According to Article 8(2) and Annex VII of WEEE directive 2012/19/EU, Below materials and components should be selectively treated. Description Notes Quantity With a surface greater than 10 sq cm 2.3, 3.5, 4.1, 5.1, 6.1, 8.1,... -
Page 6: Disassemble Instructions
3. Disassemble Instructions The intent of this document is to provide guidance to recyclers on the presence of materials and components at the product / family level, as required by the EU WEEE Directive 2012/10/EU. This document should also help direct recyclers to proper methods for removing parts and general product disassembly instructions. - Page 7 Chassis Backplane Fans Screws Motherboard, Riser Cards, Backplane, Add- On Module, AIOM Cable Battery Cables Power Supply Air Shroud Power Supply Power Enclosure*2 Screws and Standoff*2 Set Power Supply Module*2...
-
Page 8: Step-By-Step Disassembly Instructions
Storage Card and CPU Heat Sink Processor SSD *6set M.2 *2 Network Card *4 DIMM *6Set AIOM Card Add-On Module 3.3 Step-by-Step Disassembly Instructions 1. Removing Cable and Chassis Top Cover 1. Use the operating system to power down the system. 2. -
Page 9: Removing Hard Disk Drive (Hdd) / Solid State Drive (Sdd)
4. The chassis top cover can be lifted off after pressing down on the release button and lifting the cover off. Description Description Power Cable Chassis USB 3.0 Ports Top Cover BMC LAN Port VGA Port PCIe 5.0 x16 AIOM Slot (NCSI) 2. - Page 10 3. Unscrew the two screws holding the drive in place. 4. Push the drive from the opening below (circled in red) to release the drive from the tray. 5. Use a cross screwdriver to remove the drive enclosure...
-
Page 11: Removing Power Supply
6. Use a cross screwdriver to remove screws and lift off the PCB Description HDD/ SSD Hard Drive Enclosure Hard Drive PCB 3. Removing Power Supply 1. Push the release tab back on the power supply. 2. Use the handle to gently slide the power supply out the back of the chassis. 3. - Page 12 4. Cut the power leads connected to the fan and lift the main board from the chassis Use a flathead screwdriver to cut the capacitor adhesive and pin solder. Adhesive Description Power Supply Power Enclosure Fan Cable Power Module PCB Capacitor...
-
Page 13: Removing Advanced I/O (Aiom) Network Card
4. Removing Advanced I/O (AIOM) Network Card 1. Loosen the thumbscrew (circled in red) using your hand. 2. Slide the AIOM out of the opening. Description AIOM Network Card 5. Removing AIOM Cable 1. Unscrew the two screws (circled in red) using a screwdriver and loosen the thumb screw by hand. 2. -
Page 14: Removing Add-On Module (Aom)
6. Removing Add-on Module (AOM) 1. Loosen the thumbscrew shown below. 2. Slide the AOM away from the rear and then lift the AOM out of the system. Thumb Screw Description Add-on Module 7. Removing Fan 1. Pull on the fan using the fan tab (circled in red) and lift the fan up and out of the chassis for each fan. -
Page 15: Removing The Riser Bracket And Riser Card
1. Ensure all the cables are disconnected and pull the backplane bracket out of the chassis. 2. Unscrew the 3 thumbscrews by hand (circled in red) and 3 screws holding the backplane using a screwdriver (circled in yellow) as shown below to remove the backplane from the system. Thumb Screw Description Backplane... -
Page 16: Removing Processor
Riser Card Bracket Riser Cards 10. Removing Processor 1. Removing the PHM (Processor Heatsink Module) from the motherboard, first shut down the system and unplug the AC power cord from all power supplies 2. Use a T30-bit screwdriver to loosen the four peek nuts on the heatsink in the sequence of 6,5,4,3,2,1 as shown in the picture below: 10.1 3. -
Page 17: Removing Dimm
Description 10.1 Heat Sink 10.2 Processor 11. Removing DIMM 11.1 1. Hand press both release tabs on the ends of the DIMM module to unlock it 2. Once the DIMM module is loose, remove it from the memory slot Description 11.1 DIMM 12. -
Page 18: Removing The Power Supply Shroud And Air Shroud
13.1 Description 13.1 14. Removing the Power Supply Shroud and Air Shroud 1. Locate the Power Supply Shroud on the motherboard and lift it out of the system using the latch. 14.1 2. Locate the 2 Air Shrouds on top of the DIMM slots and CPU and pull them out of the system. 14.2... -
Page 19: Removing Motherboard
Description 14.1 Power Supply Shroud 14.2 Air Shroud 15. Removing Motherboard 1. Unscrew the screws (circled in red) on the motherboard and lift the motherboard out of the chassis. 2. Push aside the small clamp that covers the edge of the battery. When the battery is released, lift it out of the holder.
