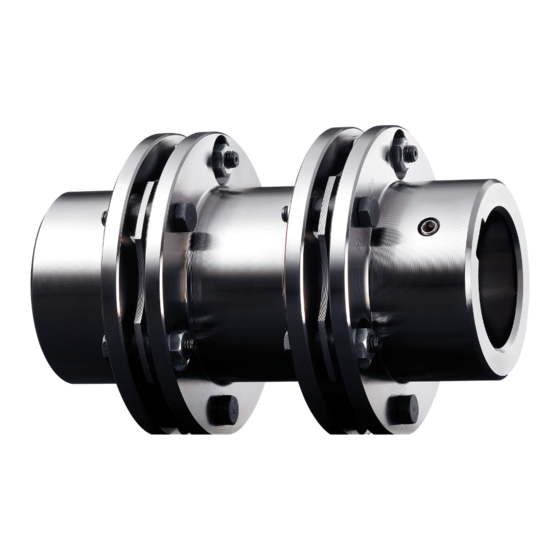

RADEX
Steel laminae couplings types
NN, NANA 1 to 4,
NENA 1 and 2, NENE 1,
NNZ, NNW
according to directive 2014/34/EU
and UK directive SI 2016 No. 1107
Please observe protection
note ISO 16016.
RADEX
Operating/Assembly instructions
®
-N
Drawn:
2022-07-06 Pz/Wb
Verified:
2022-08-08 Pz
®
-N
®

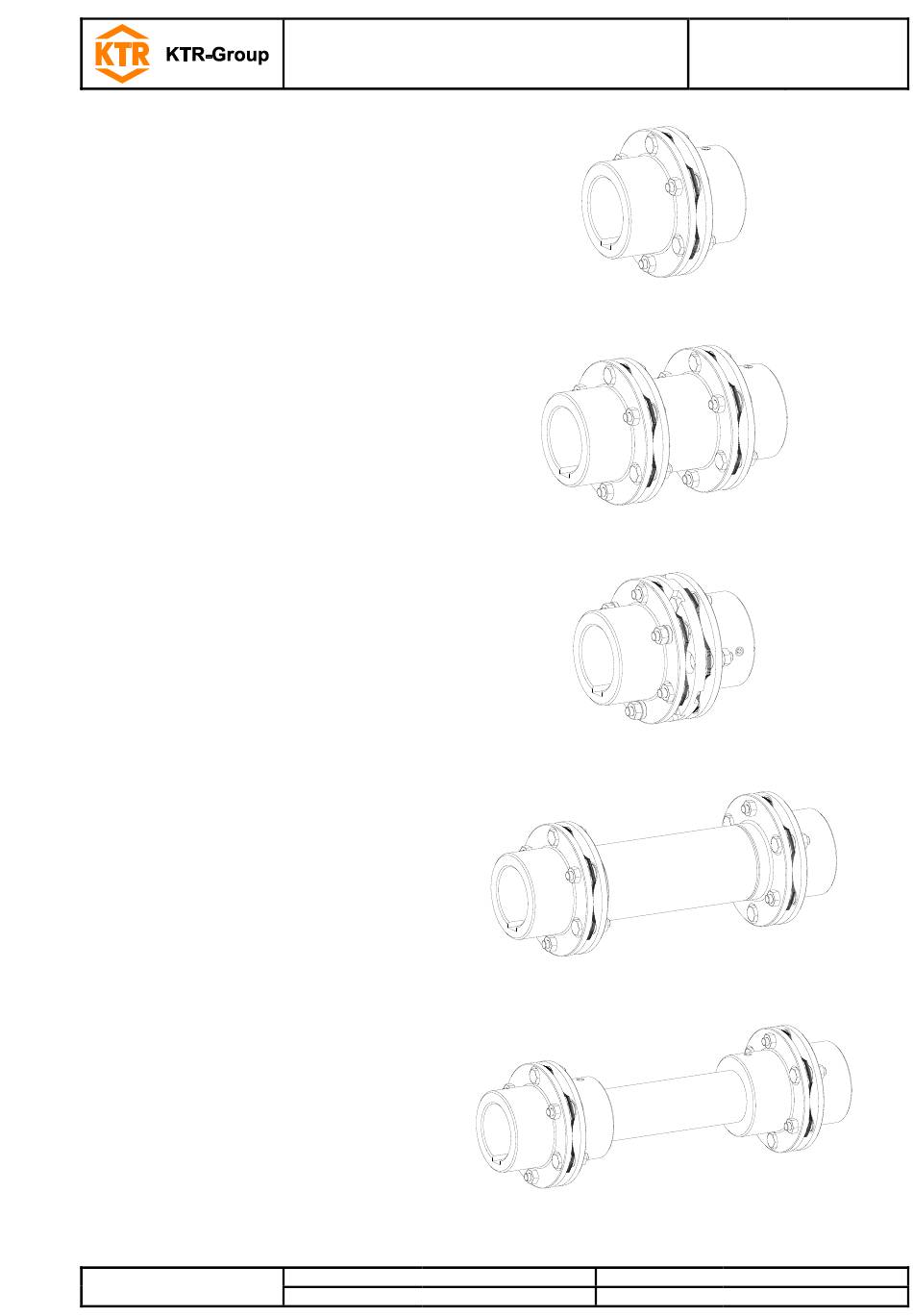

RADEX
-N type NN
®
RADEX
-N type NANA 1
®
RADEX
-N type NNZ
®
RADEX
-N type NANA 4
®
RADEX
-N type NNW
Replacing:
Replaced by:
KTR-N
47110 EN
Sheet:
1 of 33
Edition:
26
KTR-N dated 2021-05-04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RADEX-N NN and is the answer not in the manual?

Questions and answers
