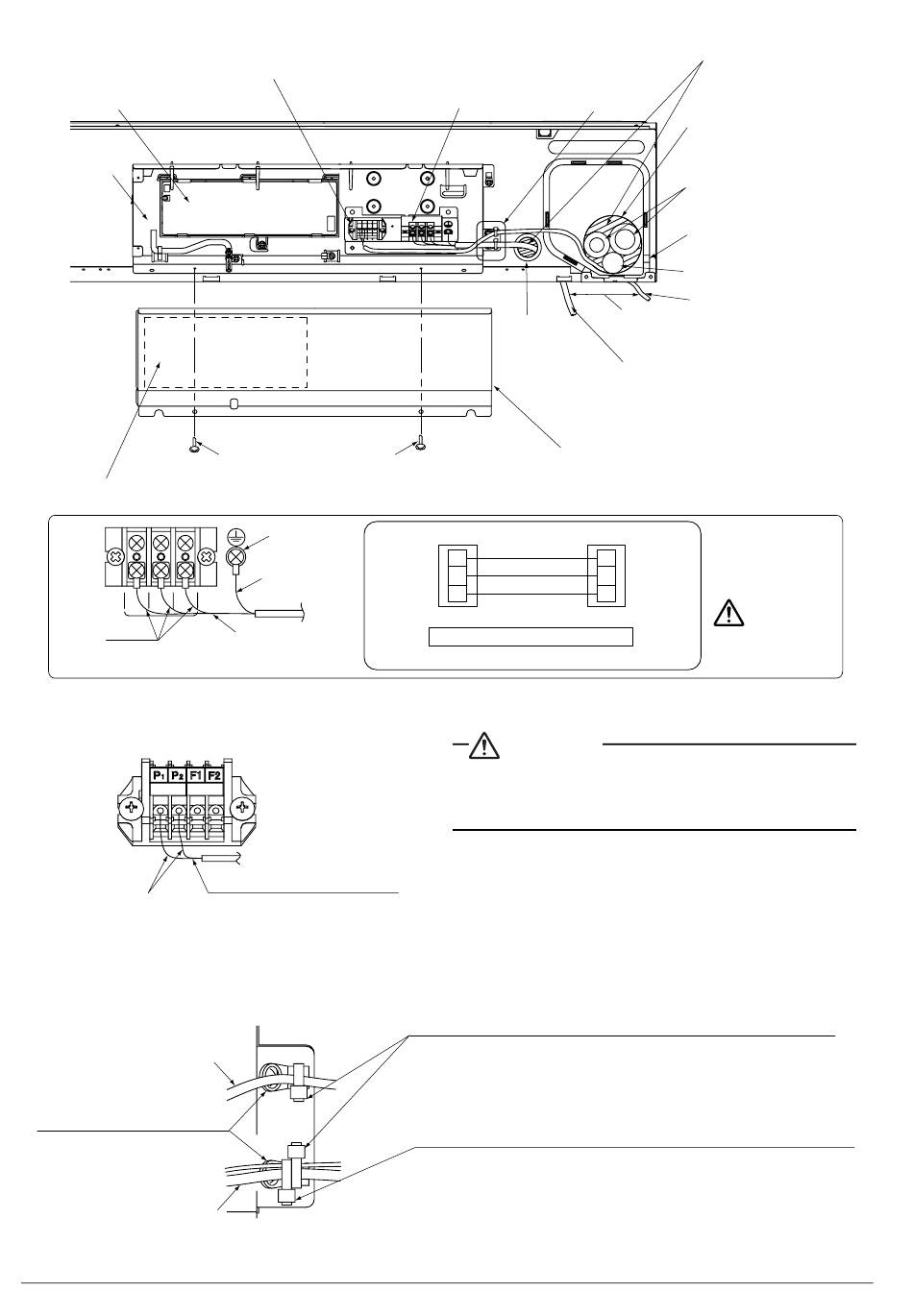

Fig. 26
Remote control
terminal block (2P)
Printed circuit board
Control box
Electrical wiring diagram name plate (Inside)
1 2 3
≥R10
Fig. 27
≥R10
How to connect remote control terminal block (2P)
Fig. 28
Remote controller
cord
Fixture (11) (accessory),
Screw thread (12) (accessory)
1. Attach the fixture so it
faces the wiring
lead-in side.
Wiring between units
English
Power supply terminal block (3P)
Control box lid fixation
screw (2 pcs.)
Earth
terminal
≥R10
Wiring
between units
Method of connecting report wiring between units
Remote controller cord
(No polarity)
Seal with caulking material or putty
(field supply)
Bushing (10)
(accessory)
Control box lid
Outdoor unit Indoor unit
1
2
3
(Terminal block) (Terminal block)
The number is put together
CAUTION
• Do not connect the wiring between units (high
current) under any circumstances.
• Do not perform solder finishing.
Clamp (4) (accessory)
2. Use the clamp to fix the wiring to the fixture so the
wiring does not place any additional tension on the
terminal connection block.
Clamp (4) (accessory)
3. Group the clamp for preventing misalignment of the
wiring between units and earth wiring on the terminal
block side so it is firmly attached to the fixing clamp.
Fig. 28
Wiring/Piping-
through hole
Refrigerant
piping
Penetration
lid
Drain hose
Remote controller
cord (low current)
Set apart
≥50 mm
Wiring between
units (high current)/
Earth wiring
1
2
3
CAUTION
Do not perform
solder finishing.
