(3-2) Remove the dressing boards (left and right).
• After removing the securing screws for the dressing boards (one each), pull them forward (in the direc-
tion of the arrow) and remove them. (Refer to Fig. 3)
• Take out the accessories.
• Make a dowel hole on the wiring lead-in side on the rear-facing or upward-facing, and then install the
bushing (10) provided.

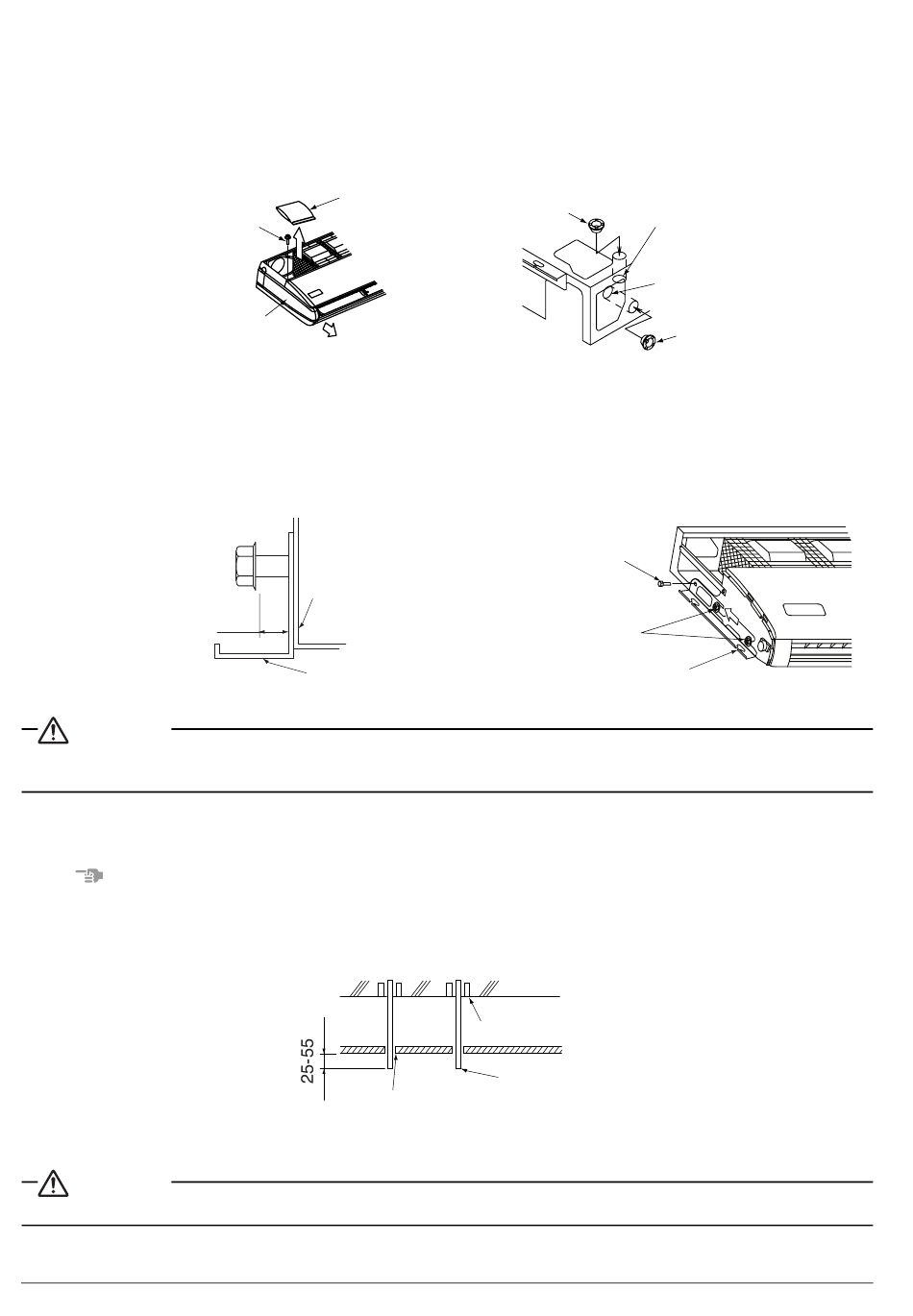

Fig. 3
Dressing board securing
screw (M4)
Dressing board
(3-3) Remove the hanger brackets.
• Loosen the 2 bolts (M8) used to attach the hanger brackets which are on each side (4 places left and
right) to within 10 mm. (Refer to Fig. 4. 5)
• After removing the securing screws (M5) for the hanger brackets which are on the rear side, pull the
hanger brackets back (in the direction of the arrow), and remove them. (Refer to Fig. 5)
Fig. 4
Length of loosening
should be less than
10 mm
CAUTION
Do not remove the tape (translucent white) attached to the outside of the indoor unit.
(Penetration of water may result in electrical shock or fire.)
(4) Attach the suspension bolts. (Use suspension bolts which are M8-M10 in size.)
• Adjust the distance of the suspension bolts from the ceiling in advance. (Refer to Fig. 6)
NOTE
• Use a hole-in anchor for existing ceilings, and a sunken insert, sunken anchor or other field supplied parts
for new ceilings to reinforce the ceiling to bear the weight of the unit. Adjust clearance from the ceiling
before proceeding further.
CAUTION
If the suspension bolts are too long, the indoor unit or optional accessories may be damaged or break down.
English
Accessories
Indoor unit
≤10
Hanger bracket
Fig. 6
False ceiling
All the above parts are field supplied.
< How to remove dowel hole >
Bushing (10)
(accessory)
Fig. 5
Hanger bracket
fixing screw (M5)
Hanger bracket
setting bolt (M8)
(Loosen)
Hanger bracket
Ceiling slab
Anchor
Suspension bolt
(Length : mm)
Removable part
(for leading in from the
upward-facing)
Removable part
(for leading in from the
rear-facing)
Bushing (10)
(accessory)
