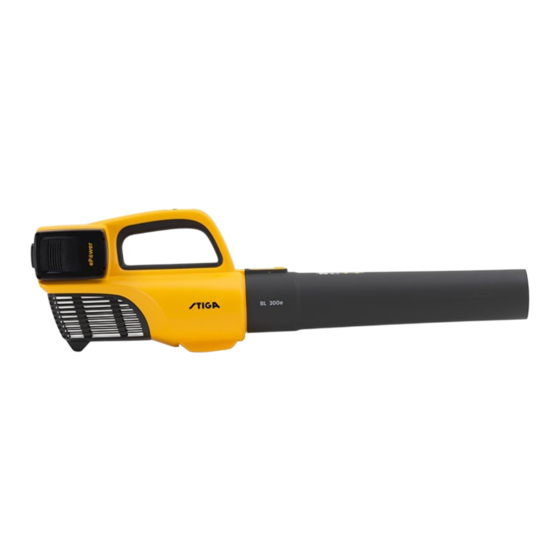

Portable battery-powered garden blower
Hide thumbs Also See for BL 20 Li B:
Table of Contents

Advertisement

Quick Links

Download this manual
171506859/P0
09/2023
BL 20 Li B
IT
Soffiatore portatile da giardino alimentato a batteria
MANUALE DI ISTRUZIONI
ATTENZIONE: prima di usare la macchina, leggere attentamente il presente libretto.
BG
Градинска преносима акумулаторна обдухваща машина
УПЪТВАНЕ ЗА УПОТРЕБА
ВНИМАНИЕ: преди да използвате машината прочетете внимателно настоящата книжка.
BS
Akumulatorski duvač/usisivač lišća
UPUTSTVO ZA UPOTREBU
PAŽNJA: prije nego što koristite ovu mašinu, pažljivo pročitajte priručnik s uputama.
CS
Přenosný akumulátorový zahradní foukač
NÁVOD K POUŽITÍ
POZOR: Před použitím stroje si pozorně přečtěte tento návod kpoužití.
DA
Batteridrevet bærbar løvblæser til havebrug
BRUGSANVISNING
ADVARSEL: Læs instruktionsbogen omhyggeligt igennem, før du tager denne maskine i brug.
DE
Tragbarer Laubbläser für den Garten mit Batteriebetrieb
GEBRAUCHSANWEISUNG
ACHTUNG: vor Inbetriebnahme des Geräts die Gebrauchsanleitung aufmerksam lesen.
EL
Φορητός φυσητήρας μπαταρίας για κήπους
ΟΔΗΓΙΕΣ ΧΡΗΣΠΣ
ΠΡΟΣΟΧΉ: πριν χρησιμοποιήσετε το μηχάνημα, διαβάστε προσεκτικά το παρόν εγχειρίδιο.
EN
Portable battery-powered garden blower
OPERATOR'S MANUAL
WARNING: read thoroughly the instruction booklet before using this machine.
ES
Soplador portátil de jardín a batería
MANUAL DE INSTRUCCIONES
ATENCIÓN: antes de utilizar esta máquina, lea atentamente el manual de instrucciones.
ET
Kaasaskantav akutoitel aiapuhur
KASUTUSJUHEND
ETTEVAATUST: enne masina kasutamist lugeda tähelepanelikultkäesolevat kasutusjuhendit.
FI
Käsin kannateltava akkukäyttöinen lehtipuhallin
KÄYTTÖOHJEET
VAROITUS lue käyttöopas huolellisesti ennen koneenkäyttöä.
FR
Souffleur de jardin portatif alimenté par batterie
MANUEL D'UTILISATION
ATTENTION: lire attentivement le manuel avant d'utiliser cette machine.
HR
Prijenosni puhač lišća s baterijskim napajanjem
PRIRUČNIK ZA UPORABU
POZOR: Prije nego pristupite uporabi stroja, pažljivo pročitajte upute.
HU
Akkumulátoros hordozható kerti lombfúvó
HASZNÁLATI UTASÍTÁS
FIGYELEM: a gép használata előtt olvassa el figyelmesen a jelen kézikönyvet!
LT
Akumuliatorinis nešiojamas pūstuvas sodo darbams
NAUDOJIMO INSTRUKCIJOS
DĖMESIO: prieš naudojant prietaisą, būtina atidžiai susipažinti suvartotojo vadovu
LV
Pārnesams dārza pūtējs ar akumulatora barošanu
LIETOŠANAS INSTRUKCIJA
UZMANĪBU: pirms aparāta lietošanai rūpīgi izlasiet dotoinstrukciju.
MK
Преносен раздувувач за градини со напојување на батерија
УПАТСТВА ЗА УПОТРЕБА
ВНИМАНИЕ: пред да jа употребите машината, вниматељнопрочитаjте го упатството за
употреба.
NL
Draagbare tuinblazer met accutoevoer
GEBRUIKERSHANDLEIDING
LET OP: Voordat u de deze machine gaat gebruiken dient u eerst deze handleiding aandachtig
.
door te lezen
.

Advertisement

Table of Contents
loading

Related Manuals for Stiga BL 20 Li B

Summary of Contents for Stiga BL 20 Li B

  • Page 1 Soffiatore portatile da giardino alimentato a batteria 171506859/P0 09/2023 MANUALE DI ISTRUZIONI BL 20 Li B ATTENZIONE: prima di usare la macchina, leggere attentamente il presente libretto. Градинска преносима акумулаторна обдухваща машина УПЪТВАНЕ ЗА УПОТРЕБА ВНИМАНИЕ: преди да използвате машината прочетете внимателно настоящата книжка.
  • Page 2 Batteridrevet bærbar løvblåser INSTRUKSJONSBOK ADVARSEL: Les denne bruksanvisningen nøye før du bruker maskinen. Przenośna akumulatorowa dmuchawa ogrodowa INSTRUKCJE OBSŁUGI UWAGA: Przed użyciem urządzenia przeczytaj uważnie niniejszą instrukcję. Soprador portátil de jardim alimentado a bateria MANUAL DE INSTRUÇÕES ATENCAO! Antes de usar a moto-roçadeira, ler com atenção este manual de instruções. Suflantă...
  • Page 3 ITALIANO - Istruzioni Originali ....................БЪЛГАРСКИ - Превод на оригиналните инструкции  .............. BOSANSKI - Prijevod originalnih uputa ..................ČESKY - Překlad původního návodu k používání  ................. DANSK - Oversættelse af den originale brugsanvisning .............. DEUTSCH - Übersetzung der Originalbetriebsanleitung  .............. ΕΛΛΗΝΙΚΑ - Μετάφραση του πρωτοτύπου των οδηγιών χρήσης  ........... ENGLISH - Translation of the original instruction  ................ESPAÑOL - Traducción del Manual Original  ................EESTI - Algupärase kasutusjuhendi tõlge  ..................SUOMI - Alkuperäisten ohjeiden käännös  ..................FRANÇAIS - Traduction de la notice originale  ................HRVATSKI - Prijevod originalnih uputa  ..................MAGYAR - Eredeti használati utasítás fordítása  ................LIETUVIŠKAI - Originalių instrukcijų vertimas ...
  • Page 4 Type Max Voltage: Rated Voltage: /min Art.N. - s/n...
  • Page 5 A . 3 A .1...
  • Page 6 A . 3...

  • Page 9: Dati Tecnici

    �1� DATI TECNICI BL 20 Li B �2� Tensione di alimentazione MAX V / d.c. �3� Tensione di alimentazione NOMINAL V / d.c. Velocità senza carico (tensione di alimentazione  �4� /min 21500 NOMINAL) �5� Velocità massima dell’aria km/h 153.3 �6� Flusso d’aria �7� Peso senza gruppo batteria �8� dB(A) Livello di pressione acustica misurato  Incertezza di misura �9� dB(A) �10� dB(A) Livello di potenza acustica misurato 95.2 Incertezza di misura �9� dB(A) �11� Livello di potenza acustica garantito dB(A) �12�...

  • Page 10: D E - Technische Daten

    [1]  BS - TEHNIČKI PODACI [1]    C S - TECHNICKÉ PARAMETRY B G - ТЕХНИЧЕСКИ ДАННИ [1]        [2]  Напрежение на захранване MAX [2]  Napon napajanja MAX [2]  Napájecí napětí MAX [3]  Напрежение на захранване NOMINAL [3]  Napon napajanja NOMINAL [3]  Napájecí napětí NOMINAL [4]  Скорост без товар (Напрежение  [4]  Brzina bez opterećenja (Napon napa- [4]  Rychlost bez nákladu (Napájecí napětí  NOMINAL) janja NOMINAL) NOMINAL) [5]  Максимална въздушна скорост [5]  Maksimalna brzina vazduha [5]  Maximální rychlost vzduchu [6]  Въздушен поток [6]  Protok vazduha [6]  Proud vzduchu [7]  Тегло без акумулаторния блок [7]  Težina bez baterije [7]  Hmotnost bez akumulátoru [8]  Ниво на звуково налягане...
  • Page 11 [1]  EN - TECHNICAL DATA [1]  ES - DATOS TÉCNICOS [1]    E T - TEHNILISED ANDMED [2]  Power supply voltage MAX [2]  Tensión de alimentación MAX [2]  Toite pinge MAX [3]  Power supply voltage NOMINAL [3]  Tensión de alimentación NOMINAL [3]  Toite pinge NOMINAL [4]  No load speed (Power supply voltage  [4]  Velocidad sin carga (Tensión de  [4]  Kiirus ilma koormuseta (Toite pinge  NOMINAL) alimentación NOMINAL) NOMINAL) [5]  Maximum air speed [5] Velocidad máxima del aire [5]  Õhu maksimaalne kiirus [6]  Flow of air [6]  Flujo de aire [6]  Õhuvool [7]  Weight without battery pack [7]  Peso sin grupo de batería [7]  Kaal ilma akuta [8]  Measured sound pressure level [8] Nivel de presión acústica [8] Helirõhu tase [9]  Uncertainty of measure [9] Incertidumbre de medida...

  • Page 12: Tehniskie Dati

    [1]    H U - MŰSZAKI ADATOK [1]    L T - TECHNINIAI DUOMENYS [1]  LV - TEHNISKIE DATI [2]  Tápfeszültség MAX [2]  Maitinimo įtampa MAX [2]  Barošanas spriegums MAX [3]  Barošanas spriegums NOMINAL [3]  Tápfeszültség NOMINAL [3]  Maitinimo įtampa NOMINAL [4]  Brīvgaitas ātrums (Barošanas sprie- [4]  Sebesség terhelés nélkül  [4]  Greitis tuščiąja eiga (Maitinimo įtampa  gums NOMINAL) (Tápfeszültség NOMINAL) NOMINAL) [5]  Maksimālais gaisa ātrums [5]  Levegő max. sebessége [5]  Maksimalus oro greitis [6]  Gaisa plūsma [6]  Levegőáramlás [6]  Oro srautas [7]  Svars bez bateriju paketes [7]  Tömeg akkumulátor egység nélkül [7]  Svoris be baterijos [8] Skaņas spiediena līmenis [8] Hangnyomásszint [8] Garso slėgio lygis...
  • Page 13 [1]    P L - DANE TECHNICZNE [1]    P T - DADOS TÉCNICOS [1]    R O - DATE TEHNICE [2]  Napięcie zasilania MAX [2]  Tensão de alimentação MAX [2]  Tensiunea de alimentare MAX [3]  Napięcie zasilania NOMINAL [3]  Tensão de alimentação NOMINAL [3]  Tensiunea de alimentare NOMINAL [4]  Prędkość bez obciążenia (Napięcie  [4]  Velocidade sem carga (Tensão de  [4]  Viteaza fără sarcină (Tensiunea de  zasilania NOMINAL) alimentação NOMINAL) alimentare NOMINAL) [5]  Maksymalna prędkość powietrza [5]  Velocidade máxima do ar [5]  Viteza maximă a aerului [6]  Przepływ powietrza [6]  Fluxo de ar [6]  Flux de aer [7]  Ciężar bez zespołu akumulatora [7]  Peso sem grupo bateria [7]  Greutate fără grupul acumulator [8]  Poziom ciśnienia akustycznego...
  • Page 14 [1]    S R - TEHNIČKI PODACI [1]    S V - TEKNISKA SPECIFIKA- [1]    T R - TEKNİK VERİLER [2]  Napon  napajanja MAX [2]  Besleme gerilimi MAX TIONER [3]  Napon napajanja NOMINAL [3]  Besleme gerilimi NOMINAL [2]  Spänning MAX [4]  Brzina bez opterećenja (Napon napa- [4]  Yüksüz hız (Besleme gerilimi NO- [3]  Spänning NOMINAL janja NOMINAL) MINAL) [4]  Hastighet utan belastning (Spänning  [5]  Maksimalna brzina vazduha [5]  Maksimum hava hızı NOMINAL) [6]  Protok vazduha [6]  Hava akışı [5]  Maximal lufthastighet [7]  Težina bez baterije [7]  Batarya grubu olmadan ağırlık [6]  Luftflöde [8]  Nivo zvučnog pritiska...

  • Page 15: General Information

    WARNING!: READ THIS MANUAL CAREFULLY BEFORE USING THE MACHINE. Keep safe for future use. INDICE 1. GENERAL INFORMATION 1. GENERAL INFORMATION ........1 2. SAFETY REGULATIONS ........1 HOW TO READ THIS MANUAL 3. ABOUT THE MACHINE .......... 5 Machine description and intended use ... 5 NOTE or IMPORTANT These give details or Main components (Fig.1 ) .......
  • Page 16 2) Electrical safety e) Do not overreach. Keep proper footing a) Power tool plugs must match the outlet. and balance at all times. This enables Never modify the plug in any way. Do better control of the power tool in unexpected not use any adapter plugs with earthed situations.
  • Page 17 operations different from those intended could be performed by the manufacturer or result in a hazardous situation. authorized service providers. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do 2.2 SPECIFIC SAFETY GUIDELINES not allow for safe handling and control of the FOR ELECTRIC GARDEN BLOWER...

  • Page 18: Battery / Battery Charger

    care. Carefully remove any debris which 2.4 BATTERY / BATTERY CHARGER could cause damage or injury to persons or animals if ignored. ATTENTION Prolonged exposure to vibrations can cause injuries and neurovascular disorders The following safety rules complement (also called “Raynaud’s syndrome” or “white the safety rules contained in the battery finger”), especially to people suffering from charger manual.

  • Page 19: Residual Risks

    • When the machine is withdrawn from service, 3. ABOUT THE MACHINE do not dispose of it in the environment, but take it to a waste disposal facility in accordance with the local regulations in force. 3.1 MACHINE DESCRIPTION AND INTENDED USE Do not throw electrical equipment away with domestic waste.
  • Page 20 C. Handgrip: it makes it possible to control the machine. WARNING! Read the owner's D. Battery (if it is not supplied with the machine, manual before using the machine. see chapter 13 “accessories on request”): device that supplies electric current to the tool;...

  • Page 21: Using The Machine

    its packaging, always making use of suitable IMPORTANT Stop the machine and always equipment. Do not use the machine until all remove the batteries (Fig. 12) whenever the the instructions provided in the “ASSEMBLY” blower tube is removed. section have been carried out. 5.

  • Page 22: Safety Checks

    6.2 SAFETY CHECKS NOTE The machine works only with both batteries inserted. Always carry out the safety checks before 4. Move the switch to the start position (Fig. use. 9.A.2, Fig. 9.A.3). 6.2.1 General check Starting machine causes simultaneous rotation of the rotor. Object Result NOTE Operate the machine only on a firm, level...

  • Page 23: After Use

    Always stop the machine when moving between manual must be carried out by your dealer or different work areas. Authorised Service Centre. When moving, never keep your hand on the ignition switch to avoid accidental 7.2 BATTERY starting. 6.6 AFTER USE 7.2.1 Battery power reserve •...

  • Page 24: Cleaning The Machine

    8. STORAGE Phase Battery Charger (Fig.12) A (right) 8.1 STORING B (left) A (right) 100% When the machine is to be stored away: 1. Remove the batteries from their housing. B (left) 100% 2. Allow the engine to cool before storing in an enclosed space.

  • Page 25: Assistance And Repairs

    When transporting the machine on a vehicle, • Failure become familiar with always: documentation accompanying the machine – remove the tubes; (Instruction manuals). – position it so that it does not cause a hazard • Professional use. to anyone. • Carelessness, negligence. •...

  • Page 26: Troubleshooting

    12. TROUBLESHOOTING PROBLEM PROBABLE CAUSE SOLUTION 1. The machine does Battery is not inserted or Make sure that the batteries are inserted not start when the is inserted incorrectly correctly (chapter 6.3) switch is moved Low battery capacity Check the batteries status and charge if necessary (chapter 7.2) Defective start/stop switch Do not use the machine.
  • Page 27 13. ATTACHMENTS ON REQUEST 13.1 BATTERIES (Fig. 14) 13.2 BATTERY CHARGER (Fig. 15) Different capacity batteries are available to suit There are several devices for charging the battery. specific operating requirements. The list of homologated battery chargers for this The list of homologated batteries for this machine machine can be found in the "Technical Data"...
  • Page 28 EN - 14...
  • Page 29 1. La Società: ST. S.p.A. – Via del Lavoro, 6 – 31033 Castelfranco Veneto (TV) – Italy 2. Dichiara sotto la propria responsabilità, che la macchina: Soffiatore portatile da giardino a) Tipo / Modello Base: BL 20 Li B c) Numero di Serie: 23A••BLO000001 ÷ 99L••BLO999999 d) Motore: a batteria 3.
  • Page 30 1. The company: ST. S.p.A. – Via del Lavoro, 6 – 31033 Castelfranco Veneto (TV) – Italy 2. Hereby declares under its own responsibility that the machine (function): Hand-held garden Blower BL 20 Li B a) Homologation type: 23A••BLO000001 ÷ 99L••BLO999999...
