Watchguard ALL-SIR2 User Manual

Indoor Siren
User Manual

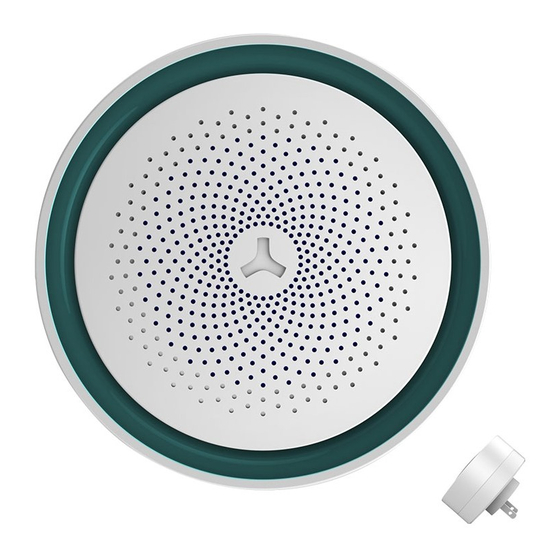

Description
This indoor siren designed with unique, concise and stylish
appearance, which is suitable for different decoration style of
home and office. It can used as an indoor siren or work as a
standalone alarm system. With low-consumption, stable
function, strong anti-interference ability, it can effectively
protect your life and property safety. Once any detector has
been triggered, the control panel will receive the signal and
be alarming immediately, the alarm indicator will deter the
intruders as well. The siren adopt wireless transmission
technology, it is portable device and easy to install. This siren
is widely used at home, villa, office, warehouse, shops...
Features
Compact and fashionable design
Wireless transmission technology, easy to install
Different color LED indicator shows arm/disarm status
Siren and strobe, more safety
Built-in 600mAh/3.7V back-up battery can last 12 hours
Keep connected with extented range up to 100M
Changeable plug, meet different customer needs
Specifications:
Voltage: AC110-240V 50/60Hz
Max Current: 20mA/220V
Power Rating: ≤5W(220V)
Maximum standby time: ≥ 20h
Back-up Battery: 600mAh/3.7V
Wireless Receiving Distance: 100M(Open Area)
Siren Volume: 90dB
Working Temperature: -25℃ -55℃
Operating Humidity: ≤95%(Non-condensing)
Housing Material: ABS
Siren Measurement:
Plug Type: EU/UK/US/AU
General View/LED Indication
1
4
3
5
2
1. Siren
2. LED Indication
Red LED Flashes On: Enrolling
Green LED On: System disarmed
Blue LED On: System armed in away mode.
Blue LED Flashes: System armed in stay mode
3. Enroll Button
4. Plug Handle ( Press the handle, counter clockwise rotate to
change the plug)
5. Interchangeable Plugs
