INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
For Oils and Heavier Lubricants
Fas-Vac
FOR LUBRICATION PRODUCTS ONLY
50 psi (3.5 bar, .35 MPa) Maximum Working Pressure
Model 224667
Basic Pump: Includes Husky 716
pump and mounting hardware
Model 224763, 16 Gallon System
Includes basic pump, dolly,
wand storage kit, and 1/4" x 32" suction wand
Model 224700, 16 Gallon System with
Drum
Same as model 224763, plus includes
a 16 gallon drum
Model 224701, 55 Gallon System
Includes basic pump, 55 gallon drum truck,
wand storage kit, and 1/2" x 32" suction wand.

Table of Contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Graco Phone Numbers
. . . . . . . . . . . . . . . . . . . . . . . . .
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Evacuation System
2
3
7
8
11
12
12
COPYRIGHT 1991, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
First choice when
quality counts.

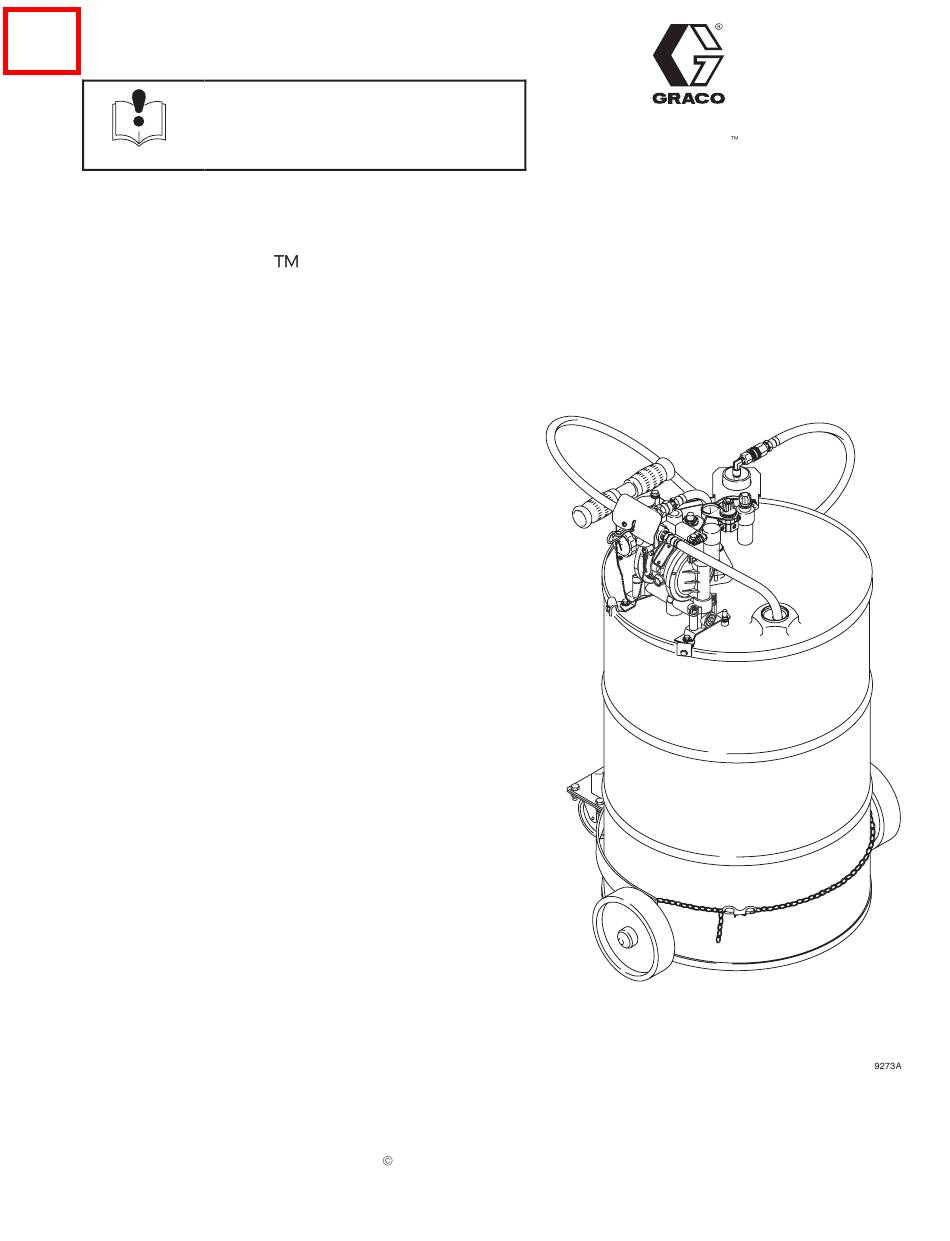

Model 224701 shown
(does not include drum or
Filter-Regulator-Lubricator Kit)
308154
Rev. D

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fas-Vac 224763 and is the answer not in the manual?

Questions and answers

Related Manuals for Graco Fas-Vac 224763

Summary of Contents for Graco Fas-Vac 224763

  • Page 1: Table Of Contents

    ......Filter-Regulator-Lubricator Kit) GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 COPYRIGHT 1991, GRACO INC. Graco Inc. is registered to I.S. EN ISO 9001...

  • Page 2: Warnings

    This equipment is for professional use only. Read all instruction manuals, tags, and labels before operating the equipment. Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor. Do not alter or modify this equipment.

  • Page 3: Installation

    3. Use only metal or conductive containers. drawing. 4. All solvent pails used when flushing, according to NOTE: Always use genuine Graco Parts and Accesso- local code. Use only metal pails, which are con- ries, available from your Graco distributor.
  • Page 4 Installation 204,205 Fig 2 NOTE: Fig. 2 shows the 55 Gallon Unit, Model 4. Install the wand storage tube (supplied). Place the 224701. See Fig. 3 for the 16 Gallon Unit, 224700. holder (206) on the lip of the dolly or truck. Place the tube (202) in the holder, and slide the bracket (203) over the tube.
  • Page 5 Installation 204,205 Fig 3 Air Regulation Optional Fluid Filter For Evacuation Mode If you are using the optional air line Filter-Regulator- When evacuating particle-contaminated lubricants Lubricator Kit 110149, see page 6 for installation from the 16 or 55 gallon drum to another container, instructions.
  • Page 6 5. Angle the FRL into the bracket so the gauge slides Graco’s FRL (Part No. 110149) should be mounted to into the slot in the bracket. Screw the lock the Fas-Vac with the Mounting Kit (Part No. 224749) ring (F) over the regulator knob to secure the assembly to the bracket.

  • Page 7: Operation

    Operation Control Knob 2. Be sure that the control knob (A) is in the EVACUATION position and the safety clip (8) locks The Fas-Vac system operates in two modes: evacuate it in place. See Fig. 5. lubricants from a crankcase or reservoir and collect the 3.

  • Page 8: Parts

    Parts Model 224701 55 Gallon System Includes items 101 to 104 Part No. Description 224667 PUMP See page 10 for parts 224666 WAND STORAGE KIT Includes items 201 to 206 as shown on page 11 111470 55 GALLON DRUM TRUCK 224702 WAND, 32”...
  • Page 9 Parts Model 224700 Part No. Description 16 Gallon Fas-Vac System, with drum Includes items 101 to 105 224667 PUMP ASSEMBLY See parts on page 10 224666 WAND STORAGE KIT Model 224763 Includes items 201 to 206 as shown on page 11 16 Gallon Fas-Vac System, without drum 224665...
  • Page 10 Parts Model 224667 Basic Pump BRACKET LABEL 9276A Part No. Description Part No. Description 111475 HOSE, cpld 1/2 npt, 170709 FOOT 50” (1.3 m) long 100333 CAPSCREW, hex hd; 111473 HOSE, cpld 1/2–14 npt x 1/4–20 unc–2a x 5” long 3/8–18 npt, 10 ft (3 m) long 100016 LOCKWASHER, 1/2”...

  • Page 11: Technical Data

    Parts Model 224666 Suction Wands with 32” Tube Wand Storage Kit Includes items 301 to 303 Model 224669 is included with 16 gallon systems Model 224702 is included with 55 gallon systems Part No. Description 111471 187351 TUBE Ref. 301 Ref.

  • Page 12: Warranty

    Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.

This manual is also suitable for:

Fas-vac 224667Fas-vac 224700Fas-vac 224701
