HENDI 208304 - COFFEE MACHINE Manual

Technical specifications

Remark: Technical specification is subjected to change without prior notification.

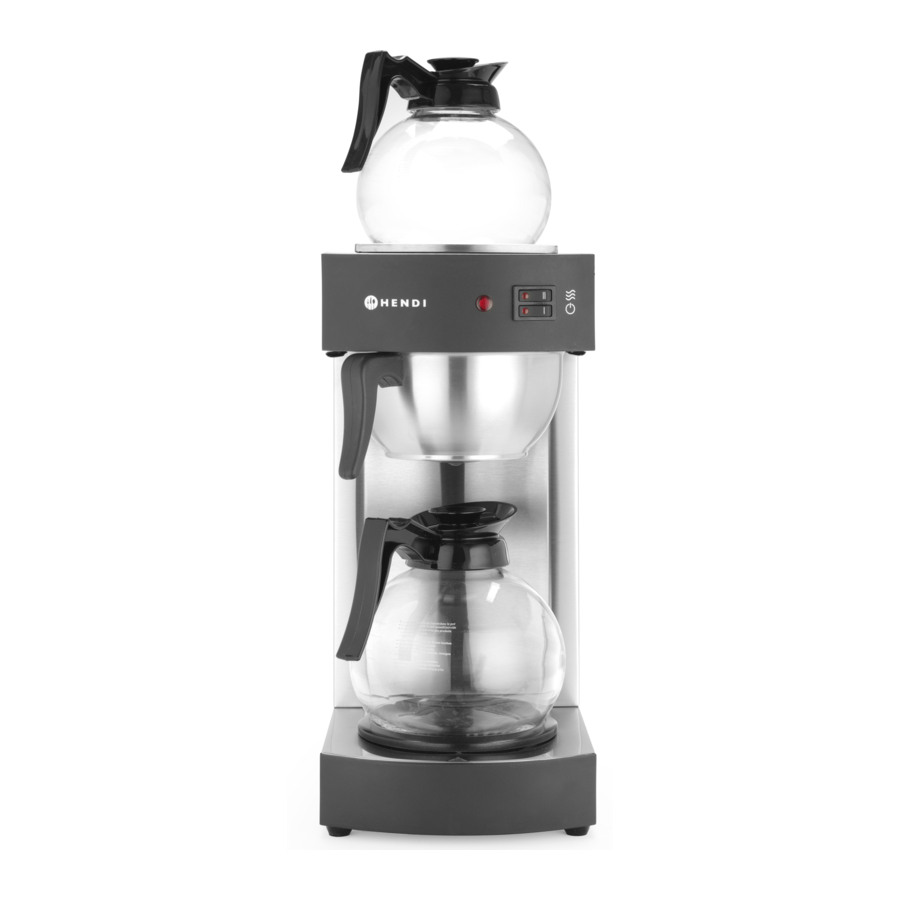

Main parts of the product

(Fig.1)

1. Fill opening of water reservoir
2. Filter holder
3. Coffeepot
4. Keep warming button (upper warming plate)
5. On/OFF button: Boiling the water & keep warming of lower warming plate
6. Upper warming plate
7. In-use indicator lamp

Remark: The content of this manual applies for all listed items unless specified otherwise. The appearance may vary from the shown illustrations

Preparation before use

• Remove all protective packaging and wrapping.
• Check that the device is in good condition and with all accessories. In case of incomplete or damaged delivery, please contact the supplier immediately. In this case, do not use the device.
• Clean the accessories and the appliance before use (See == > Cleaning & Maintenance).
• Make sure the appliance is completely dry.
• Place the appliance on a horizontal, stable and heat resistant surface that is safe against water splashes.
• Keep the packaging if you intend to store your appliance in the future.
• Keep the user manual for future reference.

NOTE! Due to manufacturing residues, the appliance may emit a light odor during the first few uses. This is normal and does not indicate any defect or hazard. Make sure the appliance is well ventilated.

Operating instructions

• Remarks: With two glass decanter of 1,8 litre & 25 coffee filters included.

1. Place the coffee machine on a stable flat surface.
2. Put the filter in the holder.
3. Open the lid of the water reservoir. Fill the coffee pot with cold water and pour it in the water reservoir. Then, close the lid. Wait 1 minute for the water to force the air out of the appliance.
4. Place the empty glass decanter on the lower warming plate.
5. Connect the power plug to a suitable electrical power outlet.
6. Press the On/OFF button once to switch ON the appliance and RED indicator lights up to indicate that the boiling process has started.
7. HOT WATER will soon start dripping into the pot.
8. When all of the water has passed through the machine, red indicator light will switch off.
9. Press the On/OFF button to switch off the appliance.
10. Repeat steps 5 to 9 a few times to clean the appliance thoroughly before making coffee for the first time.
11. It is normal for steam to escape during this process and for the dripping water to make gurgling sounds.
12. Let the appliance cool down for several minutes.
13.
    Remove the glass decanter from the warming plate. Hold it only using the handle. Danger of burns!
14. Discard the water from the first few boiling cycles to remove any residues from the manufacturing process.
15. Clean the appliance afterwards.

Note: Never pour hot water in the water reservoir.

Brewing coffee
Note: To brew coffee with this appliance, a coffee filter is required. Coffee filters Ø 25cm (x25, supplied). Do not use this appliance without coffee filter in place.
To make coffee follow these steps:

1. Put the coffee filter (supplied) inside the filter pan. Add the desired amount of ground coffee, depending on your taste. The recommended amount is 75-90 gm per pot of water (1.6-1.8 litre).
2. Place the filter pan in the holder.
3. Fill the coffee pot (glass decanter, vacuum pot or thermos depending on model type) with the desired amount of water and pour it in the water reservoir. Then, close the lid of the water reservoir.
4. Place the empty glass decanter on the lower warming plate.
5. Connect the power plug to a suitable electrical power outlet.
6. Press the On/OFF button once to switch ON the appliance and RED indicator lights up to indicate that the brewing process has started.
7. After some time coffee will start to drip into the coffee pot.
8. When all of the water has passed through the machine, red indicator light will switch off.
9. In order to keep warming of the glass decanter, the appliance must remain switch ON.
10.
    When served, remove the glass decanter from the warming plate and pour the coffee carefully to ensure that hot coffee is not spilled. Hold the handle of the glass decanter only. Danger of burns!
11. It takes about 5 to 6 minutes to brew one glass decanter of coffee.
12. There is another warming plate at the top. You can put the ready glass decanter on it & press keep warming button to operate & keep it warm. So that you can brew another glass decanter of coffee at the same time using the lower warming plate.
13. The appliance has an overflow tube to allow extra water in the reservoir to escape, but since the coffee pot can hold only 1.8 litres of water we recommend that you never fill the reservoir with more than 1.8 litres of water.
14. Some water will always be left in the machine and in the tubes. If you do not use or move the appliance for a long time, it is best to empty the appliance and clean it before storing it.
15. If you have emptied the appliance (as recommended in no. 10 above), before using it again you should repeat steps 1-7 of Preparing the appliance for use.
16. If you haven't used the appliance for a short time, rinse it out with clean water before use.

Do not forget to turn the appliance off after use.

Cleaning & maintenance

• ATTENTION! Always disconnect the appliance from the electrical mains and cool down before storage, cleaning & maintenance.
• Do not use water jet or steam cleaner for cleaning and do not push the appliance under the water as the parts will get wet and electric shock might be resulted.
• If the appliance is not kept in a good state of cleanliness, this can adversely affect the life of the appliance and result in a dangerous situation.
• Food residues should be regularly cleaned and removed from the appliance. If the appliance is not cleaned properly, it will reduce its lifespan and may result in a dangerous condition during use.

Cleaning

• Clean the cooled exterior surface with a cloth or sponge slightly dampened with a mild soap solution.
• For reasons of hygiene, the appliance should be cleaned before and after use.
• Avoid water contacting the electrical components.
• Never immerse the appliance in water or other liquids.
• Never use aggressive cleaning agents, abrasive sponges, or cleaning agents containing chlorine. Do not use steel wool, metallic utensils, or any sharp or pointed objects for cleaning. Do not use petrol or solvents!
• Clean and descale the boiler base at regular intervals (see chapter "Descaling")
• No parts are dishwasher safe.

Maintenance

• Check the operation of the appliance regularly to prevent serious accidents.
• If you see that the appliance is not working properly or that there is a problem, stop using it, switch it off and contact the supplier.
• All maintenance, installation and repair work must be carried out by specialised and authorised technicians, or recommended by the manufacturer.

Transportation and Storage

• Before storage, always make sure that the appliance has been disconnected from the power supply and completely cooled down.
• Store the appliance in a cool, clean and dry place.
• Never place heavy objects on the appliance as this could damage it.
• Do not move the appliance while it is under operation. Disconnect the appliance from power supply when moving and hold it at the bottom.

Descaling

Note: Descale the coffee machine regularly. The intervals depend mainly on frequency of use & the quality of the water. After some time limestone deposits will build up on the heating element. To keep the appliance in optimum condition and to ensure that your coffee retains its delicious flavour, we recommend that you de-scale the appliance on a regular basis.

• To de-scale use a de-scaling agent that is suitable for coffee makers. You can also use pure lemon juice, citric acid or cleaning vinegar as a de-scaling agent. To ensure the proper mixture, read the instructions supplied with the agent. For pure lemon juice or cleaning vinegar the general mixture applies of 1/3 cleaning vinegar or lemon juice to 2/3 water.
• Place the filter pan in the holder.
• Place an empty coffee pot under the filter pan.
• Pour the water with the solution in the water reservoir.
• Turn the power switch ON.
• The water that is still in the appliance will now pass through it. As soon as the solution begins to flow through the appliance, turn it off.
• Wait 5-6 minutes to give the solution time to break down the calcium in the appliance. Turn the appliance on again so the solution (now containing the calcium deposits) can pass through it.
• When all of the solution has passed through the appliance, turn the appliance off and throw the solution away.
• Pour clean water in the water reservoir and allow it to flow through the appliance (see steps 1 to 5 of Operating instructions) until the smell and taste of the solution are completely gone.
• The appliance can now be used again.

Troubleshooting

If the appliance does not function properly, please check the below table for the solution. If you are still unable to solve the problem, please contact the supplier/service provider.

Empty the appliance (no water can remain in the appliance) before it is repaired. If in doubt, always contact your supplier!

Safety instructions

• Only use the appliance for the intended purpose it was de-signed for, as described in this manual.
• The manufacturer is not liable for any damage caused by incorrect operation and improper use.
•
  RISK OF ELECTRIC SHOCK! Do not attempt to repair the appliance by yourself. Do not immerse the electrical parts of the appliance in water or other liquids. Never hold the appliance under running water.
• NEVER USE A DAMAGED APPLIANCE! Check the electrical connections and cord regularly for any damage. When damaged, disconnect the appliance from the power supply. Any repairs should only be carried out by a supplier or qualified person to avoid danger or injury.
•
  When positioning the appliance, route the power cable safely if necessary to avoid unintentional pulling, being damaged, coming into contact with the heating surface, or causing a tripping hazard.
•
  As long as the plug is in the socket the appliance is connected to the power supply.
•
  ALWAYS switch off the appliance before disconnecting from the power supply, cleaning, maintenance or storage.
• Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.
• Do not touch the plug/electrical connections with wet or damp hands.
• Keep the appliance and electrical plug/connections away from water and other liquids. If the appliance falls into water, remove the power supply connections immediately. Do not use the appliance until it has been checked by a certified technician. Failure to follow these instructions will cause life threatening risks.
• Connect the power supply into an easily accessible electrical outlet so you can disconnect the appliance immediately in case of emergency.
• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. Never pull the power cord to unplug it from the socket, always pull the plug instead.
• Never carry the appliance by its cord.
• Never try to open the housing of the appliance yourself.
• Do not insert objects into the housing of the appliance.
• Never leave the appliance unattended during use.
• This appliance should be operated by trained personnel in kitchen of the restaurant, canteens or bar staff, etc.
• This appliance should not be operated by persons with reduced physical, sensory or mental capabilities, or persons that have a lack of experience and knowledge.
• This appliance should, under any circumstances, not be used by children.
• Keep the appliance and its electrical connections out of reach of children.
• Never use accessories or any extra devices other than those supplied with the appliance or recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.
• Do not operate this appliance by means of an external timer or remote-control system.
• Do not place the appliance on a heating object (gasoline, electric, charcoal cooker, etc.).
• Do not cover the appliance in operation.
• Do not place any objects on top of the appliance.
• Do not use the appliance near any open flames, explosive or flammable materials. Always operate the appliance on a horizontal, stable, clean, heat-resistant and dry surface.
• The appliance is not suitable for installation in an area where a water jet could be used.
• Leave a space of at least 20 cm around the appliance for ventilation during use.
•
  Keep all ventilation openings on the appliance free from obstruction.

Special safety instructions

• This appliance is intended for buffet and household use.
•
  RISK OF BURNS! HOT SURFACES! The temperature of the accessible surfaces could be very high during use. Touch only the control panel, handles, switches, timer control knobs or temperature control knobs.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. (Fixed supply cord inside, but it could be replaced)
•
  Never remove or open the lid while the appliance is operating. The steam may come out and cause burns.
• Never use this appliance without water.
• This appliance is not intended for heating with other liquid than water.

Intended use

• This appliance is intended to be used in household and similar applications such as:
  • staff kitchen areas in shops, offices and others working environment;
  • farm houses;
  • by clients in hotels, motels and other residential type environment;
  • bed and breakfast type environment.
• The appliance is designed for brewing coffee and maintain the serving temperature. Not suitable for chocolate or milk or other liquids. Any other use may lead to damage to the appliance or personal injury.
• Operating the appliance for any other purpose shall be deemed as a misuse of the device. The user shall be solely liable for improper use of the device.

Grounding installation

This appliance is classified as protection class I and must be connected to a protective ground. Grounding reduces the risk of electric shock by providing an escape wire for the electric current.
This appliance is fitted with a power cord with grounding plug or electrical connections with grounding wire. The connections must be properly installed and grounded.

Hendi B.V.
Innovatielaan 6
6745 XW De Klomp, The Netherlands
Tel: +31 317 681 040
Email: info@hendi.eu

Hendi Polska Sp. z o.o.
ul. Firmowa 12
62-023 Robakowo, Poland
Tel: +48 61 658 7000
Email: info@hendi.pl

Hendi Food Service Equipment GmbH
Ehring 15
5112 Lamprechtshausen, Austria
Tel: +43 6274 200 10 0
Email: office.austria@hendi.eu

Hendi Food Service Equipment Romania S.R.L.
Str. 13 decembrie 94A, Hala 14
Brașov, 500164, Romania
Tel: +40 268 320330
Email: office@hendi.ro

PKS Hendi South East Europe SA
5 Metsovou Str.
18346 Moschato, Athens, Greece
Tel: +30 210 4839700
Email: info@pks-hendi.com

Hendi Italia S.R.L.
Via Leonardo da Vinci 4
39100 Bolzano (BZ), Italy
Tel: +39 800 727 438
Email: office.italy@hendi.eu

Hendi HK Ltd.
1208, 12/F Exchange Tower
33 Wang Chiu Road, Kowloon Bay, Hong Kong
Tel: +852 2154 2618
Email: info-hk@hendi.eu

Find Hendi on internet:
www.hendi.com
www.facebook.com/HendiToolsforChefs
https://www.linkedin.com/company/hendi-tools-for-chefs/
www.youtube.com/HendiEquipment

Changes, printing and typesetting errors reserved.
