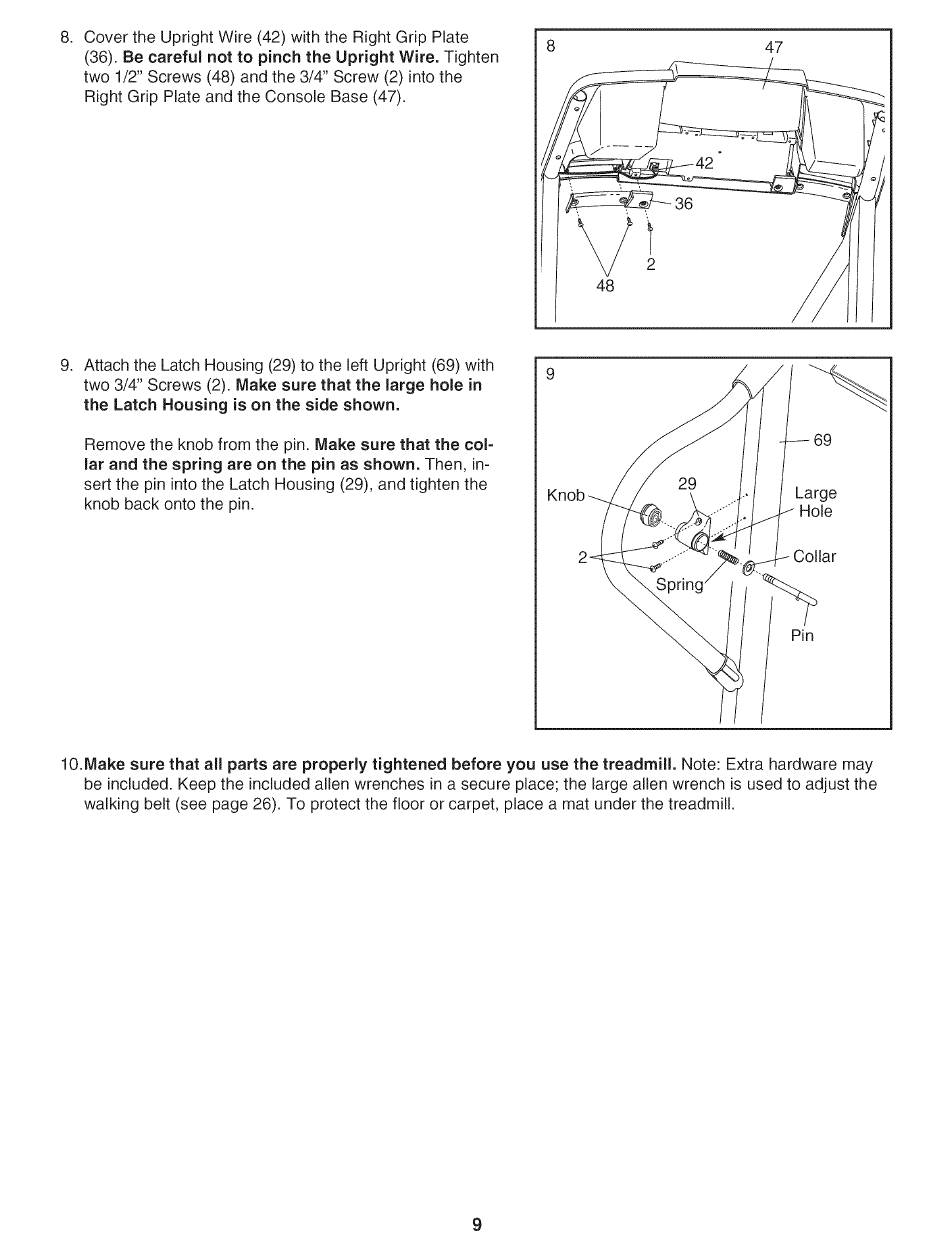

Cover the Upright Wire (42) with the Right Grip Plate
(36). Be careful not to pinch the Upright Wire. Tighten
two 1/2" Screws (48) and the 3/4" Screw (2) into the
Right Grip Plate and the Console Base (47).
_36
2
48
47
,
Attach the Latch Housing (29) to the left Upright (69) with
two 3/4" Screws (2). Make sure that the large hole in
the Latch Housing is on the side shown.
Remove the knob from the pin. Make sure that the col-
lar and the spring are on the pin as shown. Then, in-
sert the pin into the Latch Housing (29), and tighten the
knob back onto the pin.
9
69
Knob Large
Hole
Pin
10.Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrenches in a secure place; the large allen wrench is used to adjust the
walking belt (see page 26). To protect the floor or carpet, place a mat under the treadmill.
