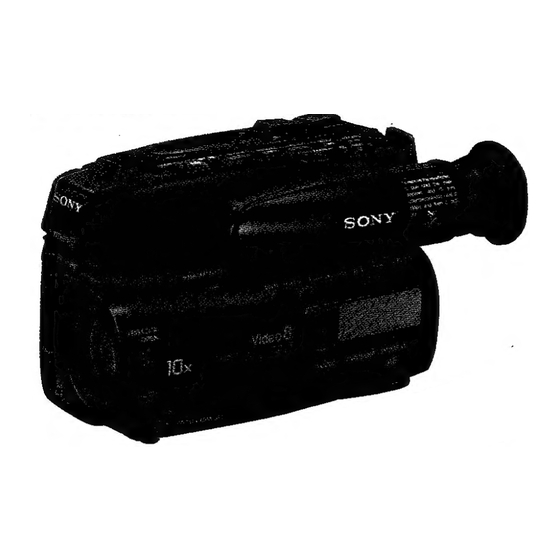

Sony Video8 Handycam CCD-TR71 Service Manual

SERVICE MANUAL
Remote commander is available as a unit. But as
individual parts the battery case lid of commander
is only avaiable.
System
Video recording system
Four Rotary heads, Helical
scanning FM system
Audio recording system
Rotary head, FM system
Video signal NTSC color, EIA standards
Usable cassette
8 mm video format cassette
(standard 8 mm)
SP mode: Approx. 1.43 cm
(19/32 inches) /sec
LP mode: Approx. 0.72 cm
(5/16 inches) /sec (playback only)
Recording time SP mode: 2 hours (P6-120)
Playback time SP mode: 2 hours (P6-120)
LP mode: 4 hours (P6-120)
Fastforward/rewind time
Approx. 8 min. (P6-120)
CCD (Charge Coupled Device)
Electronic viewfinder
(monochrome)
Combined 10x power zoom lens
f=6.2 to 62 mm (1/4 to 1 7/16
inches)
F 1.6
(44.6 to 446 mm when converted
to a 35 mm still camera)
Filter diameter 37 mm (1 1/2
inches)
TTL autofocus system inner
focus wide macro:system
Color temperature
Auto
Fuze
MICROFILM
Tape speed
Image device
Viewfinder
Lens
SPECIFICATIONS
~ — COD-TRII
RMT-701
US Model
Canadian Model
VideoS
Handycam
For MECHANISM ADJUSTMENTS, refer to the
"8 mm Video MECHANICAL ADJUSTMENT
MANUAL II " (9-972-705-11).
Minimum illumination
2 Ix (F 1.6)
Illumination range
2 Ix to 100,000 Ix
Recommended illumination
More than 100 ix
Input and output connectors
Video input/output
Selectable with the video/audio
INPUT/OUTPUT selector
Phono jack, 1 Vp-p, 75 ohms,
unbalanced, sync negative
Audio input/output
Phono jacks, (2: stereo L and R)
Input: —7.5 dBs, input impedance
more than 47 kilohms
Output: —7.5 dBs, (at output
impedance 47 kilohms)
impedance less than 2.2
kilohms
RFU DC OUT = Special mini-jack, DC 5 V
Remote jack Stereo mini-mini-jack (@ 3.5)
MIC jack Stereo mini-jack, —66 dBs low
impedance with 2.5 to 3 V DC,
output impedance 6.8 kilohms
(® 3.5) ;
— Continued on next page —
FE] VIDEO CAMERA RECORDER
