UNINTERRUPTIBLE POWER SUPPLY (UPS)
P90 Online UPS
1000VA, 1500VA, 2000VA, 3000VA Models
USER & INSTALLATION MANUAL
www.xpcc.com
| © 2013 Xtreme Power Conversion Corporation. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P90-1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Xtreme P90-1000

Summary of Contents for Xtreme P90-1000

  • Page 1 UNINTERRUPTIBLE POWER SUPPLY (UPS) P90 Online UPS 1000VA, 1500VA, 2000VA, 3000VA Models USER & INSTALLATION MANUAL www.xpcc.com | © 2013 Xtreme Power Conversion Corporation. All rights reserved.

  • Page 2: Table Of Contents

    Starting the UPS ............................21 Software Installation ..........................22 Battery Replacement ..........................22 OPERATIONS ..................... 25 Button Operation ............................ 25 LCD Panel ..............................26 Audible Alarms: ............................27 Abbreviations in LCD Display ........................28 Xtreme Power Conversion Corporation (Rev 8/29/13) Page 2...
  • Page 3 STORAGE AND MAINTENANCE ............39 Storage ..............................39 Maintenance ............................40 BATTERIES....................41 REPLACING THE BATTERY ........................41 SPECIFICATIONS ..................42 OBTAINING SERVICE................45 XTREME POWER CONVERSION CORPORATION LIMITED ® WARRANTY ....................46 Xtreme Power Conversion Corporation (Rev 8/29/13) Page 3...

  • Page 4: Emc Statements - Fcc Part 15

    Thank you for selecting this uninterruptible power supply (UPS). It provides you with protection for connected equipment. Please read this manual before installing the P90-Series UPS models P90-1000, P90-1500, P90-2000 and P90-3000 as it provides important information that should be followed during installation and maintenance of the UPS and batteries, allowing you to correctly set up your system for the maximum safety and performance.

  • Page 5: Important Safety Instructions

    These UPS units are extremely heavy. Caution should be taken in moving and positioning equipment. The instructions contained within this safety manual are deemed important and should be closely followed at all times during installation and follow-up maintenance of the UPS and batteries. Xtreme Power Conversion Corporation (Rev 8/29/13) Page 5...
  • Page 6 RJ45 RECEPTACLE – The receptacle provides network interface connections and telephone or telecommunications equipment should not be plugged into it. Please do not discard of the UPS or the UPS batteries as the UPS may have valve-regulated lead-acid batteries. Please recycle batteries appropriately. Xtreme Power Conversion Corporation (Rev 8/29/13) Page 6...

  • Page 7: Introduction

    DC power is converted to AC in the inverter, passing it on to the load. • Power is maintained from the battery during a power failure. • The converter increases voltage appropriately for the inverter. Xtreme Power Conversion Corporation (Rev 8/29/13) Page 7...

  • Page 8: Diagnostic Tests

    Backup time required will indicate the battery size needed. If the load is less than the UPS nominal power rating, then actual backup time is longer. • The following options are available: o Connectivity Options –SNMP/WEB card See the Specification section of this manual for additional model information. Xtreme Power Conversion Corporation (Rev 8/29/13) Page 8...

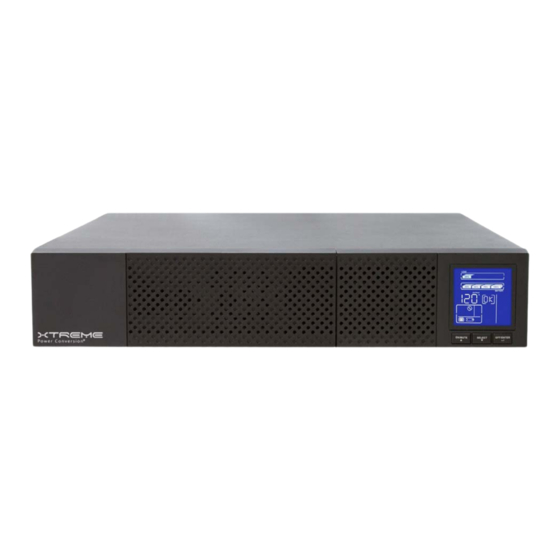

  • Page 9 P90 USER’S MANUAL UNINTERRUPTIBLE POWER SUPPLY (UPS) FRONT VIEW PICTURE P90-1000 REAR VIEW DIAGRAM P90-1500 REAR VIEW DIAGRAM P90-2000 REAR VIEW DIAGRAM Xtreme Power Conversion Corporation (Rev 8/29/13) Page 9...
  • Page 10 P90 USER’S MANUAL UNINTERRUPTIBLE POWER SUPPLY (UPS) P90-3000 REAR VIEW DIAGRAM FRONT PANEL SELECTOR BUTTONS Xtreme Power Conversion Corporation (Rev 8/29/13) Page 10...

  • Page 11: Communication Connections

    USB/RS232 port and the other to the communications port on your PC or server. With the monitoring software installed, the UPS can be scheduled for shutdown/start-up and monitoring of the UPS status through the PC or server. Xtreme Power Conversion Corporation (Rev 8/29/13) Page 11...

  • Page 12: Rs232 Communications

    UPS. Keep Pin 1 and Pin 2 closed for UPS normal operation. To activate EPO function, cut the wire between Pin 1 and Pin 2. Xtreme Power Conversion Corporation (Rev 8/29/13) Page 12...

  • Page 13: Hardware Installation Guide

    Only a qualified technician or authorized agent may service the unit. The UPS unit’s output receptacles carry live voltage even when not connected to an input voltage source. The UPS has its own internal energy source. Xtreme Power Conversion Corporation (Rev 8/29/13) Page 13...

  • Page 14: Ups Installation

    For safety considerations, the UPS is shipped from the factory without connecting the battery wires. Before installing the UPS, please follow these steps for connection of the battery wires. Connecting the batteries Step 1 Remove the front panel Xtreme Power Conversion Corporation (Rev 8/29/13) Page 14...
  • Page 15 P90 USER’S MANUAL UNINTERRUPTIBLE POWER SUPPLY (UPS) Step 2 Connect the battery wires Step 3 Place the front cover back on the front of the UPS Xtreme Power Conversion Corporation (Rev 8/29/13) Page 15...

  • Page 16: Rack-Mount Installation (Using Front Brackets)

    UNINTERRUPTIBLE POWER SUPPLY (UPS) Rack-mount Installation (using front brackets) Step 1 Attach brackets to the front corners of the UPS Step 2 Slide the UPS into the rack and secure using hardware provided Xtreme Power Conversion Corporation (Rev 8/29/13) Page 16...

  • Page 17: Rack-Mount Installation (Using 4-Post Rail Kit)

    • Right and left rail sliders, 1 each • (2) M6 nuts • (12) M6 screws Step 1 Use 4 screws to mount right and left rail sliders in front of rack. Xtreme Power Conversion Corporation (Rev 8/29/13) Page 17...
  • Page 18 Step 2 Use 4 screws to mount right and left rail sliders in back of rack. Step 3 Place the nuts in the proper location in the rack based upon height of UPS. Xtreme Power Conversion Corporation (Rev 8/29/13) Page 18...
  • Page 19 P90 USER’S MANUAL UNINTERRUPTIBLE POWER SUPPLY (UPS) Step 4 Carefully place the UPS on the rail support. Step 5 Fix the UPS in position with screws. Step 6 Rail kit installation is now complete. Xtreme Power Conversion Corporation (Rev 8/29/13) Page 19...

  • Page 20: Tower Installation

    P90 USER’S MANUAL UNINTERRUPTIBLE POWER SUPPLY (UPS) Tower Installation Step 1 Inter-connect the tower brackets that shipped in the box with the UPS Step 2 Carefully lower the UPS into the brackets as shown Xtreme Power Conversion Corporation (Rev 8/29/13) Page 20...

  • Page 21: Ups Input Connection

    AC input to any UPS. UPS Output There are two types of output on the P90-1000, P90-1500, and P90-2000 models - programmable outlets and general outlets. Please connect non-critical devices to the programmable outlets and critical devices to the general outlets. During power failure, you may extend the backup time to critical devices by setting shorter backup time for non-critical devices.

  • Page 22: Software Installation

    NOTE: Please beware that once the battery tray is disconnected from the UPS, the equipment connected to the output of the UPS is not protected from power outages. Step 1 Remove the front panel Xtreme Power Conversion Corporation (Rev 8/29/13) Page 22...
  • Page 23 Step 4 Slide the new battery tray back to the original location in the UPS and secure with the two screws to the front panel Xtreme Power Conversion Corporation (Rev 8/29/13) Page 23...
  • Page 24 P90 USER’S MANUAL UNINTERRUPTIBLE POWER SUPPLY (UPS) Step 5 Reconnect the battery tray connector to the Step 6 Place the front cover back on the front of the UPS Xtreme Power Conversion Corporation (Rev 8/29/13) Page 24...

  • Page 25: Operations

    ON/Mute + Select and SELECT buttons simultaneously for 5 seconds. The UPS will then enter Button Bypass mode. The Bypass mode will be disabled when the input voltage is out of acceptable range. Xtreme Power Conversion Corporation (Rev 8/29/13) Page 25...

  • Page 26: Lcd Panel

    Indicates the output/input voltage, output/input frequency or battery voltage. V: output voltage, Hz: frequency Load information Indicates the load level by 0-25%, 26-50%, 51-75%, and 76-100%. Indicates overload. Indicates the load or the UPS output is short circuited. Xtreme Power Conversion Corporation (Rev 8/29/13) Page 26...

  • Page 27: Audible Alarms

    Indicates there is something wrong with the battery. Audible Alarms: Description Buzzer status Battery Mode Sounds every 4 seconds Low Battery Sounds every second Overload Sounding twice every second Fault Continuously sounds Xtreme Power Conversion Corporation (Rev 8/29/13) Page 27...

  • Page 28: Abbreviations In Lcd Display

    Rack Display Tower Display Low Battery Overload Battery is not connected Overcharge Site Fault Over Temperature Charger Failure Battery Fault Frequency Unstable in Bypass Mode Input Voltage is Out of Bypass Range Xtreme Power Conversion Corporation (Rev 8/29/13) Page 28...

  • Page 29: Ups Setting

    115: presents output voltage as 115VAC 120: presents output voltage as 120VAC 127: presents output voltage as 127VAC 02: Frequency Converter enable/disable Interface Setting CF ENA: converter mode enable CF DIS: converter mode disable Xtreme Power Conversion Corporation (Rev 8/29/13) Page 29...

  • Page 30: Eco Enable/Disable

    CF 60: presents output frequency at 60Hz 04: ECO enable/disable Interface Setting ENA: ECO mode enable DIS: ECO mode disable 05: AECO enable/disable Interface Setting ENA: Advanced ECO mode enable DIS: Advanced ECO mode disable Xtreme Power Conversion Corporation (Rev 8/29/13) Page 30...

  • Page 31: Bypass Mode Enable/Disable

    DIS: Programmable outlets disable 08: Programmable Outlets Setting Interface Setting 0-999: setting the backup time limits in minutes from 0-999 for programmable outlets connected to non-critical devices when operating in battery mode. Xtreme Power Conversion Corporation (Rev 8/29/13) Page 31...

  • Page 32: Lcd Display Direction Setting

    55/150 alternating flashing: acceptable input voltage range is from 55V to 150V 80/130 alternating flashing: acceptable input voltage range is from 80V to 130V 85/135 alternating flashing: acceptable input voltage range is from 85V to 135V 00: Exit Setting Xtreme Power Conversion Corporation (Rev 8/29/13) Page 32...

  • Page 33: Operating Mode Description

    When input frequency is within 40 Converter Hz to 70 Hz, the UPS can be set at Mode (Rack) a constant output frequency, 50 Hz or 60 Hz. The UPS will still change battery in this mode. Xtreme Power Conversion Corporation (Rev 8/29/13) Page 33...
  • Page 34 The UPS is in fault mode when no output power is supplied from the UPS and the fault icon flashes on the LCD display, although the information from the UPS can be displayed on the screen. Xtreme Power Conversion Corporation (Rev 8/29/13) Page 34...

  • Page 35: Fault Reference Codes

    Bus start failure Inverter output short Bus over Battery voltage too high Bus under Battery voltage too low Bus unbalanced Over temperature Inverter soft start fail Overload High Inverter voltage Low Inverter voltage Xtreme Power Conversion Corporation (Rev 8/29/13) Page 35...

  • Page 36: Warning Indicators

    EPO enable Sounds every second Over temperature Sounds every second Charger failure Sounds every second Battery fault Sounds every second Bypass Out of Range Sounds every second Bypass Frequency Sounds every second Unstable Xtreme Power Conversion Corporation (Rev 8/29/13) Page 36...

  • Page 37: Troubleshooting

    Fault cod is shown as 28 and the icon Battery voltage is too low or Contact your dealer charger fault support. condition. is showing on LCD display and alarm is continuously sounding. Xtreme Power Conversion Corporation (Rev 8/29/13) Page 37...
  • Page 38 5 hours and then re- Batteries fully check capacity. If the problem Battery backup time is shorter than charged. still exists, contact your expected. dealer for support. Contact your dealer Batteries are defective. battery replacement. Xtreme Power Conversion Corporation (Rev 8/29/13) Page 38...

  • Page 39: Storage And Maintenance

    During storage, recharge the battery in accordance with the following table: Storage Temperature Recharge Frequency Charging Duration -25°C - 40°C Every 3 months 1-2 hours 40°C - 45°C Every 2 months 1-2 hours Xtreme Power Conversion Corporation (Rev 8/29/13) Page 39...

  • Page 40: Maintenance

    Please replace the fuse only with the same type and amperage in order to avoid fire hazards. Do not disassemble the UPS system. The UPS contains no user-serviceable parts. Xtreme Power Conversion Corporation (Rev 8/29/13) Page 40...

  • Page 41: Batteries

    Contact with a grounded battery can result in electrical shock! The likelihood of such shock will be reduced if such grounds are removed during installation and maintenance (applicable to a UPS and a remote battery supply not having a grounded circuit). Xtreme Power Conversion Corporation (Rev 8/29/13) Page 41...

  • Page 42: Specifications

    Backup Time 3 min 45 sec 4 min 41 sec 3 min 50 sec 4 min 15 sec Charge Current Recharge Time < 4 hours to 90% Xtreme Power Conversion Corporation (Rev 8/29/13) Page 42...
  • Page 43 Load level Buttons On / Mute; Select; Off / Enter Low battery, Overload, Battery not connected, Overcharge, Audible Alarm Site wiring fault, EPO mode, Fan failure, Over temperature, Charger failure, Battery fault Xtreme Power Conversion Corporation (Rev 8/29/13) Page 43...
  • Page 44 P90 USER’S MANUAL UNINTERRUPTIBLE POWER SUPPLY (UPS) SHIPPING LIST ViewPower CD horizontal brackets (front) tower stand brackets 4-post rail kit manual 4ft USB cable Xtreme Power Conversion Corporation (Rev 8/29/13) Page 44...

  • Page 45: Obtaining Service

    3. Mark the RMA number on the outside of all packages. Xtreme Power cannot accept any package without the RMA number marked on the outside of the boxes.

  • Page 46: Xtreme Power Conversion Corporation Limited Warranty

    XPC Corporation or a XPC Corporation authorized representative before or after delivery with regard to the use or application of Xtreme Power Conversion equipment is furnished on the basis that it represents XPC Corporations best judgment under the situation and circumstances, but it is used at the recipient’s sole risk.
  • Page 47 P90 USER’S MANUAL UNINTERRUPTIBLE POWER SUPPLY (UPS) XTREME POWER CONVERSION LOAD PROTECTION POLICY THIS POLICY IS NOT A WARRANTY. REFER TO THE XPC CORPORATION, INC. LIMITED WARRANTY FOR INFORMATION CONCERNING THE WARRANTY FOR YOUR XPC PRODUCT. THE LIMITATIONS AND CONDITIONS CONTAINED IN THIS POLICY DO NOT AFFECT THE TERMS OF THE XPC LIMITED WARRANTY.
  • Page 48 No employee of XPC or any other party is authorized to make any representations beyond those made in this agreement concerning the Load Protection Policy. XPC Corporation 230 Yuma Street Denver, CO 80223 1.800.582.4524 Xtreme Power Conversion Corporation (Rev 8/29/13) Page 48...
