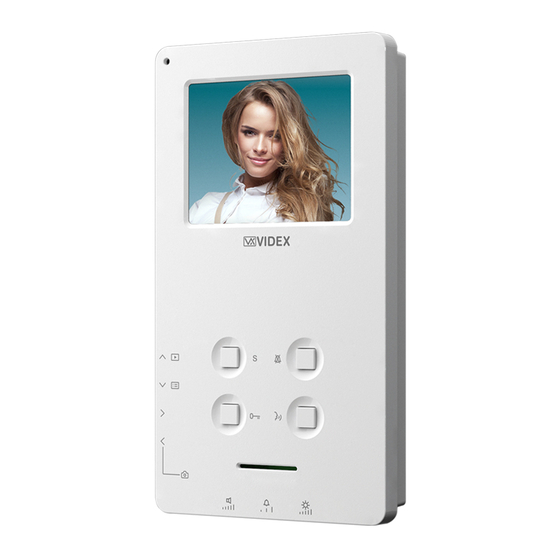

3.5" touchscreen hands free videophone for ipure system
Hide thumbs Also See for 6300 Series:

Advertisement

Available languages

Available languages

Quick Links

6300 Series
Art. 6398
3.5" touchscreen hands free videophone for IPure system
27 mm
A
B
C
D
E
Fig. 1 Front
DESCRIPTION
3.5" TFT high-resolution LCD monitor, OSD, hands free, capac-
itive touch screen, 4 buttons configurable for functions: door
open, intercom call, auto start, camera switching, timed privacy
service. 12Vdc or PoE power supply.
2 inputs / 2 outputs.
Wall mounted, white or black finish.
To download the programming software
IPure Wizard and obtain the latest firmware
and manuals please visit the following web-
site and register
https://service.videx.it/
VIDEOPHONE INITIALISATION
If powering on the videophone (through a PoE switch/router or
an external power supply unit) the display shows the message
"DEVICE NOT INITIALISED", use the configuration software IPure
Wizard to setup the device and the system.
LEDS
Privacy on LED
It illuminates when the privacy service is enabled.
Service LED
It flashes slowly if the gateway is not found.
If turned on, the device has failed to register with the
configured SIP server.
Missed call LED
F
It flashes slowly if there is a missed call.
Art. 6398 - Installation instructions
102 mm
F
G
H
I
L
Fig. 2 Inside
LEGEND
A
Microphone
B
Touchscreen display
C
Induction coil for hearing
aid users
D
Tactile programmable
buttons and LED's
E
Speaker
F
Missed call LED
G
Speech volume control
H
Call tone volume control
I
Brightness control
The informations contained in this manual are valid
for devices with software version 2.5.0 and later.
CONTROLS
Speech volume control
Sliding wheel.
Call tone volume control
3 level switch (it controls also the local bell volume).
Brightness control
Sliding wheel.
Microphone volume trimmer
It increases the volume from the microphone to the
door panel loudspeaker.
- 1 -
I
H
G
L
Connection terminals
M
Ethernet connector
N
Microphone volume trimmer
N
66251970 - V1.5 - 31/03/24
Rev.0.1
M
N
