Videx 6300 Series Installation Instructions Manual

3.5" hands free colour display
Hide thumbs Also See for 6300 Series:

Advertisement

Quick Links

Download this manual

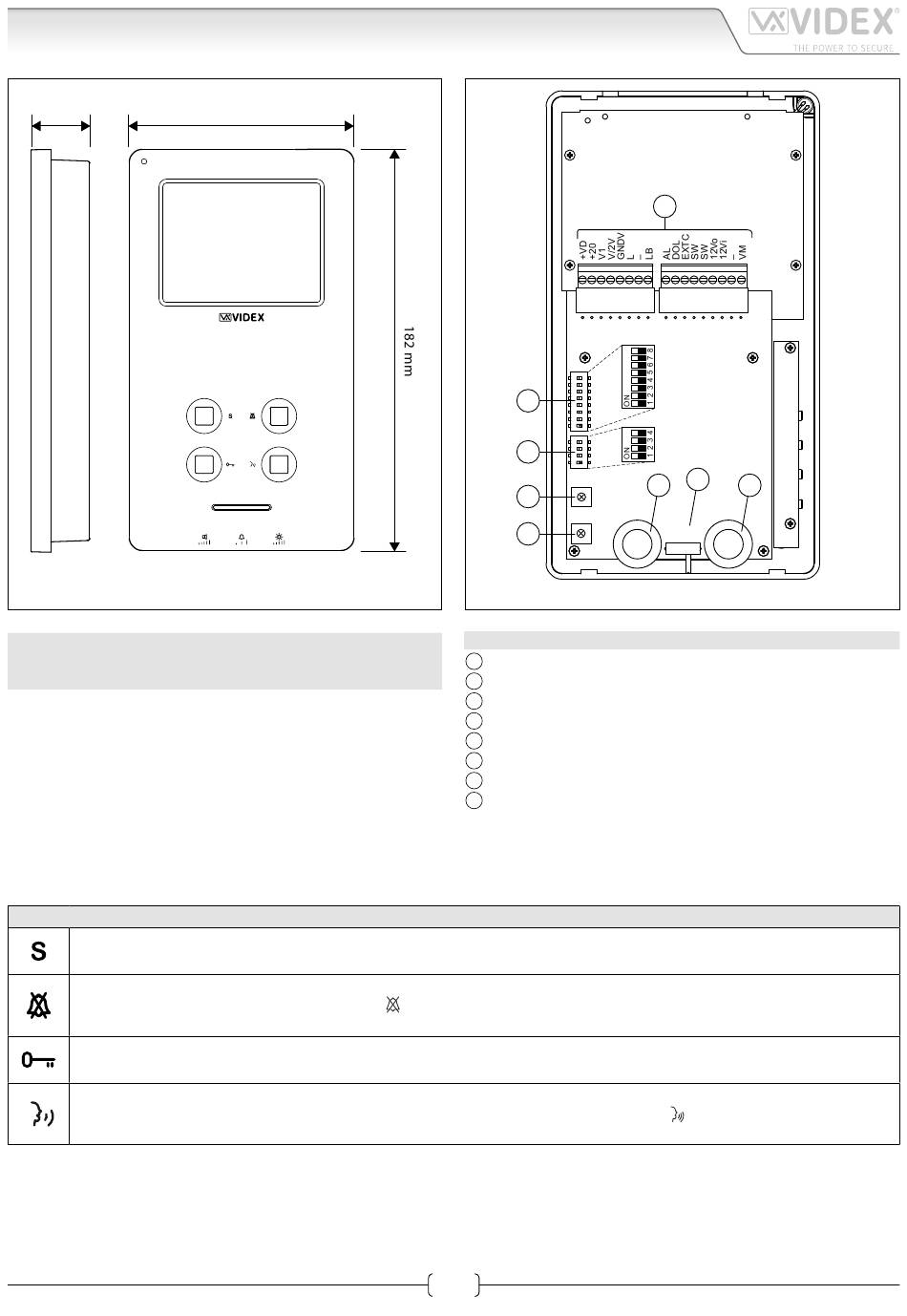

6300 Series
Art. 6378
3.5" hands free colour display videophone
27 mm
Fig. 1
ART. 6378 VX2200 6300 SERIES HANDS FREE VIDEOPHONE
FOR SYSTEMS USING COMPOSITE VIDEO SIGNAL (COAX) OR
BALANCED (TWISTED PAIR)

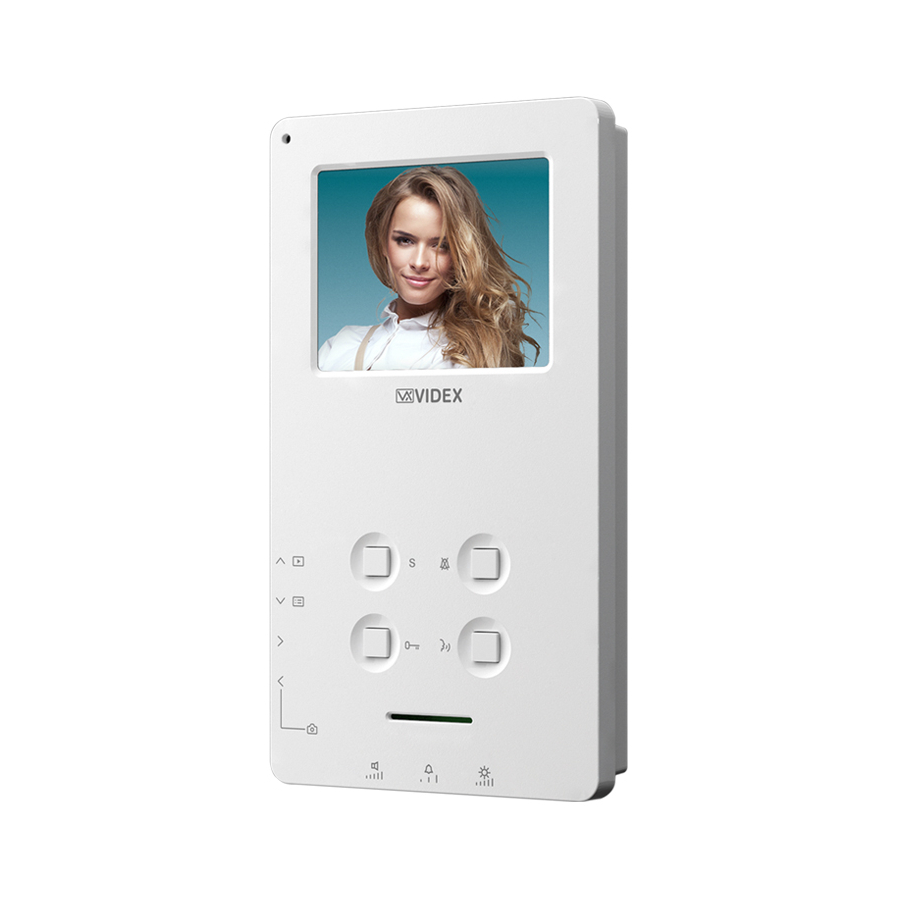

Surface mount hands free intelligent videophone incorporating
a 3.5" Hi-Res full colour active matrix LCD monitor, with "answer/
camera recall", "door open/concierge call", "privacy" and one
"service" button plus 2 LED's one for generic use (door opening
usually) and one to indicate privacy service enabled. Program-
mable settings: video mode (coax or balanced), privacy dura-
tion, melody and number of rings.
Adjustments: call tone volume (3 levels), speech volume, pic-
ture hue, contrast and brightness.
PUSH BUTTON OPERATION DURING STANDBY (FIG. 1)
Service button
When pressed, shorts terminal "SW " to "SW " (max 24Vdc 50mA).
Privacy service
Press to enable the privacy service. The LED " " turns on. The service is deactivated by pressing again the same button or
when the programmed time expires.
Call the concierge
Press to book a call to the digital concierge if installed on the system.
Camera recall
Press a number of times equal to the ID value of the door panel to switch ON. The LED "
When the connection is made, press again to end the call.
Art. 6378 - Installation instructions
102 mm
B
C
PT2
E
PT3
D
Fig. 2
LEGEND
Connection terminals
A
8 Way dip switch bank to set videophone address
B
4 Way dip switch bank to set video mode
C
Contrast adjustment trimmer
D
Hue adjustment trimmer
E
Speech volume control
F
Brightness control
G
Call tone volume switch
H
1
A
DSW1
DSW2
H
G
F
PT1
VR1
SW1
" turns on.
66251230-EN - V1.4 - 15/06/16
