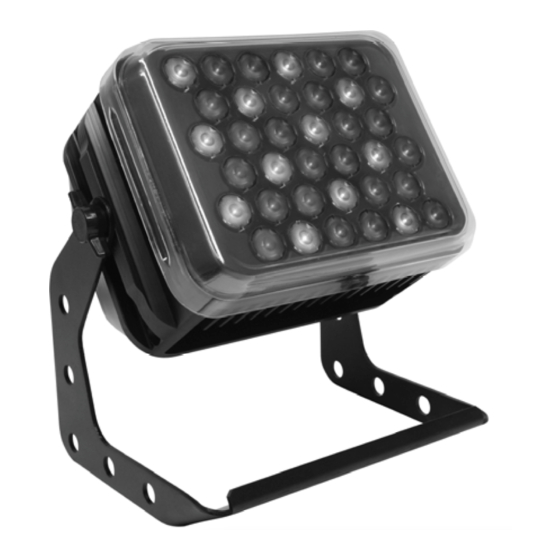

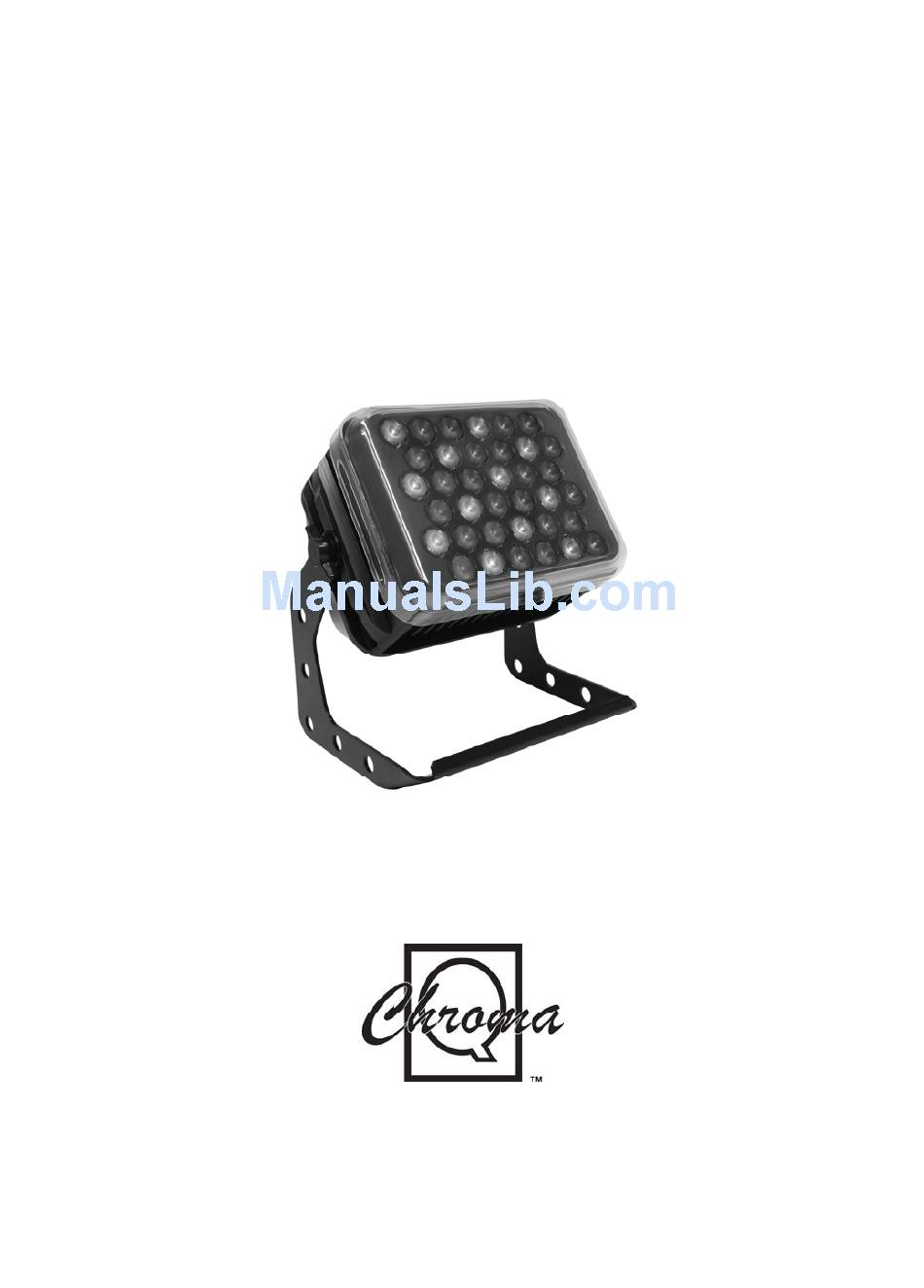

- Page 1 Chroma-Q™ Color Punch™ User Manual Version 1.2 March 2008 PN: 620-0500...
- Page 2 Suggestions of use shall not be taken as inducements to infringe any patent. Chroma-Q sole warranty is that the product will meet the sales specifications in effect at the time of shipment. Your exclusive remedy for breach of such warranty is limited to refund of purchase price or replacement of any product shown to be other than as warranted.
- Page 3 Operating the unit ………………………….………………..………………. 4 Modes of operation ……………………….…………………………………. 5 DMX Mapping ……………………………….……………………………….. 7 Pre-programmed looks …………..……….………...……………………….. 8 Technical specifications …….……………..………..……………………….. 8 Maintenance …………….………………….…………………………………. 8 2.10 Accessories ….………….………………..……………………………………. 8 Drawings …………………………………….………………………………………… 9 Outside dimensions ………….…….………………………………………… 9 Color Punch User Manual V1.2 March 2008...
-
Page 4: Product Overview
Modes of operation DMX mapping Pre-programmed looks Technical specifications Maintenance 2.10 Accessories 2.1 Unpacking the unit The Color Punch package includes 1 x Color Punch fixture, 1 x yoke, 2 x M10 x 16 knobs. Color Punch User Manual V1.2 March 2008... -
Page 5: Control And Power Cables
Black Live (L) Hot (Gold) 2.3 Mounting the unit The Color Punch is supplied with a detachable yoke for a single fixture which can be used for floor mounting, direct wall mounting and truss mounting. Note: • For the M10 nuts, ensure that the bolt is not too long to avoid damage •... -
Page 6: Modes Of Operation
‘Factory’ Default. 2.5 Modes of operation The Color Punch can be controlled via DMX or can be used in a standalone mode. You can also Master and Slave mode to connect Color Punches together and keep them in sync when in standalone mode. - Page 7 Enter for 2 seconds to save Look. Chase Store The Color Punch allows you to use the Looks and to link these together in a Chase. Press Enter and scroll to desired Chase and press Enter. You are now presented with the Start Look.
-
Page 8: Dmx Mapping
Mode 4: Stand-alone You can set the Color Punch to work in standalone mode and link Color Punches together so that they all remain in sync. If you set one unit to Master then the DMX will be regenerated and sent onto all the Slaves. -
Page 9: Pre-Programmed Looks
Pending Maintenance With care, the Color Punch fixture will require little maintenance. If the unit is used mainly in a stage environment then we recommend that the unit be periodically cleaned of dust and cracked oil residue. When used in an external environment make sure that the unit is clean and free from moisture around the power input and the data input and output. - Page 10 Drawings 4.1 Outside dimensions 200mm / 7.9” 150mm / 5.9“ 155mm / 6.1“ Color Punch User Manual V1.2 March 2008...
