nordictrack.ca

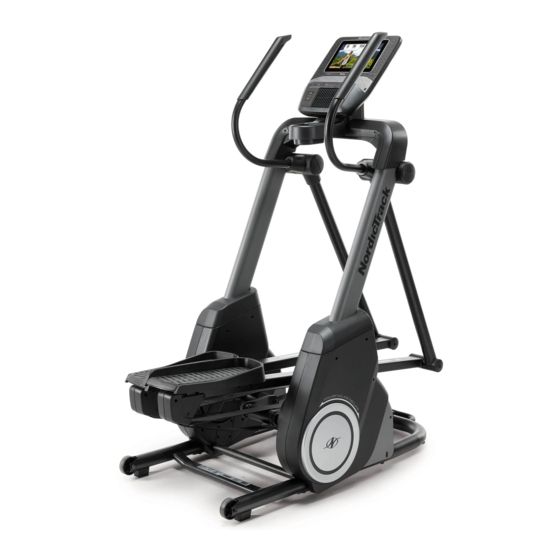

Model No. NTEL71320C.0
Serial No.
Write the serial number in the space
above for reference.
REGISTER YOUR
PRODUCT
To register your product and
activate your warranty today,
go to iconservice.ca.
CUSTOMER SERVICE
Call toll-free 1-888-936-4266
Mon.–Fri. 7:30 a.m.–4:30 p.m. ET
(excluding holidays)
or email us at
customerservice@iconcanada.ca
Please do not contact the store.
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
Serial
Number
Decal
USER'S MANUAL
Advertisement
Table of Contents
Related Manuals for NordicTrack NTEL71320C.0
Summary of Contents for NordicTrack NTEL71320C.0
- Page 1 USER’S MANUAL Model No. NTEL71320C.0 Serial No. Write the serial number in the space above for reference. Serial Number Decal REGISTER YOUR PRODUCT To register your product and activate your warranty today, go to iconservice.ca. CUSTOMER SERVICE Call toll-free 1-888-936-4266 Mon.–Fri.
-
Page 2: Table Of Contents
Apply the decal in the location shown. Note: The decal(s) may not be shown at actual size. NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. The Bluetooth word mark ® and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. Google Maps is a trade- mark of Google LLC. -
Page 3: Important Precautions
IMPORTANT PRECAUTIONS WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read all important precautions and instructions in this manual and all warnings on your elliptical before using your elliptical. ICON assumes no responsibility for personal injury or property damage sus- tained by or through the use of this product. - Page 4 18. The elliptical does not have a freewheel; the 20. Over exercising may result in serious injury pedals will continue to move until the fly- or death. If you feel faint, if you become short wheel stops. Reduce your pedaling speed in of breath, or if you experience pain while a controlled way.
-
Page 6: Before You Begin
BEFORE YOU BEGIN Thank you for selecting the revolutionary reading this manual, please see the front cover of this NORDICTRACK FREESTRIDE TRAINER FS10I manual. To help us assist you, note the product model ® elliptical. The FREESTRIDE TRAINER FS10I elliptical number and serial number before contacting us. -
Page 7: Part Identification Chart
PART IDENTIFICATION CHART Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity needed for assembly. -
Page 8: Assembly
ASSEMBLY • Assembly requires two or three persons. • In addition to the included tool(s), assembly requires the following tools: • Place all parts in a cleared area and remove the one Phillips screwdriver packing materials. Do not dispose of the packing materials until you finish all assembly steps. - Page 9 3. Tip: Avoid pinching the wires. With the help of one or two other people, set the Upright (4) on the pins (A) on the Frame (2). Attach the Upright (4) with eight M10 x 25mm Screws (123); start all the Screws, and then Avoid tighten them.
- Page 10 5. Identify the Right Pedal Arm (15). Using a plastic bag to keep your fingers clean, apply a generous amount of the included grease to the axle on the Right Pedal Arm. Next, insert the axle on the Right Pedal Arm (15) into the Right Pivot Leg (13) from the direction shown.
- Page 11 7. Identify a Left Rear Belt Cover (24) and a Right Rear Belt Cover (25). Attach them to the Left Pedal Arm (14) with five M4 x 16mm Screws (141); start all the Screws, and then tighten them. Repeat this step on the other side of the elliptical.
- Page 12 9. Attach the Accessory Tray (111) to the Upright (4) from below with two M4 x 16mm Screws (141). Then, attach the Accessory Tray (111) to the Upright (4) from above with two M4 x 10mm Screws (148). 10. While a second person holds the Console Bracket (5) near the Upright (4), insert the 32"...
- Page 13 12. Tip: Avoid pinching the wires. Attach the Console (9) to the Console Bracket (5) with four Avoid pinching M4 x 16mm Screws (141); start all the Screws, the wires and then tighten them. 13. Tip: Avoid pinching the wires. Attach the Console Bracket Cover (48) to the Accessory Avoid pinching Tray (111) with two M4 x 16mm Screws (141).
-
Page 14: How To Use The Elliptical
HOW TO USE THE ELLIPTICAL HOW TO PLUG IN THE POWER CORD A temporary adapter (C) may This product must be grounded. If it should mal- be used to con- function or break down, grounding provides a path of nect the power least resistance for electric current to reduce the risk cord to a 2-pole of electric shock. - Page 15 HOW TO MOVE THE ELLIPTICAL HOW TO EXERCISE ON THE ELLIPTICAL Due to the size and weight of the elliptical, moving To mount the elliptical, hold the handlebars (H) and it requires two persons. Stand in front of the ellipti- step onto the pedal (I) that is in the lower position.
- Page 16 HOW TO LEVEL THE ELLIPTICAL THE OPTIONAL TABLET HOLDER If the elliptical rocks The optional tablet slightly on your holder (K) will hold floor during use, your tablet securely turn one or both of in place and enable the leveling feet (J) you to use your tablet beneath the front of while you exercise.
-
Page 17: How To Use The Console
HOW TO USE THE CONSOLE CONSOLE DIAGRAM FEATURES OF THE CONSOLE resistance of the pedals and the incline of the frame as it guides you through an effective exercise session. The advanced console offers an array of features designed to make your workouts more effective and When you use the manual mode of the console, you enjoyable. - Page 18 HOW TO TURN ON THE POWER HOW TO SET UP THE CONSOLE IMPORTANT: If the elliptical has been exposed to Before you use the elliptical for the first time, set up the cold temperatures, allow it to warm to room tem- console.
- Page 19 3. Change the resistance of the pedals and the The console is now ready for you to begin working out. The following pages explain the workouts and other incline of the frame as desired. features that the console offers. Touch Manual Start and begin pedaling. To use the manual mode, see page 19.
- Page 20 HOW TO USE A FEATURED WORKOUT To pause the workout, simply touch the screen or stop pedaling. To continue the workout, simply resume pedaling. 1. Touch the screen or press any button on the console to turn on the console. To end the workout session, touch the screen to pause the workout, and then follow the prompts See HOW TO TURN ON THE POWER on...
- Page 21 The actual number of calories that you burn To draw your own map for a workout, see HOW TO CREATE A DRAW-YOUR-OWN-MAP WORKOUT will depend on various factors, such as your on page 22. weight. In addition, if you manually change the resistance level or incline level of the frame during the workout, the number of calories you When you select a workout, the screen will show...
- Page 22 HOW TO CREATE A DRAW-YOUR-OWN-MAP If you make a mistake, touch Undo in the map WORKOUT options. 1. Touch the screen or press any button on the The screen will display the elevation and distance console to turn on the console. statistics for your workout.
- Page 23 HOW TO USE AN IFIT WORKOUT 4. Select an iFIT workout from the home screen or the workout library. To use an iFIT workout, you must be logged into your iFIT account (see step 3 below) and the console Touch the buttons at the bottom of the screen to must be connected to a wireless network (see HOW select either the home screen (Home button) or the TO CONNECT TO A WIRELESS NETWORK on...
- Page 24 6. Create a list of favorite iFIT workouts if desired. 11. Turn on the fan if desired. To mark an iFIT workout as a favorite, simply view See step 6 on page 20. the overview or workout summary of the desired 12.
- Page 25 HOW TO CHANGE CONSOLE SETTINGS 3. Customize the unit of measurement and other settings. IMPORTANT: Firmware updates are always designed to improve your exercise experience. As a To customize the unit of measurement, the time result, new settings and features may not be described zone, or other settings, touch Equipment Info or in this manual.
- Page 26 6. Calibrate the incline system. 3. Enable Wi-Fi. To calibrate the incline system, touch Maintenance, Make sure that Wi-Fi is enabled. If it is not ® touch Calibrate Incline, and then touch Begin. The enabled, touch the Wi-Fi toggle to enable it. frame will automatically rise to the maximum incline level, lower to the minimum incline level, and then 4.
-
Page 27: Ic Information
IC INFORMATION This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. -
Page 28: Maintenance And Troubleshooting
MAINTENANCE AND TROUBLESHOOTING MAINTENANCE INCLINE SYSTEM TROUBLESHOOTING Regular maintenance is important for optimal If the frame does not adjust to the selected incline performance and to reduce wear. Inspect and level, see HOW TO CHANGE CONSOLE SETTINGS properly tighten all parts each time the elliptical is on page 25 and calibrate the incline system. - Page 29 HOW TO ADJUST THE REED SWITCH If the console does not display correct feedback, the reed switch should be adjusted. To adjust the reed switch, first press the power switch and unplug the power cord. Next, use a standard screwdriver and pry the Shield Disc (97) off the Left Outer Shield (98).
-
Page 30: Exercise Guidelines
EXERCISE GUIDELINES Aerobic Exercise—If your goal is to strengthen your WARNING: cardiovascular system, you must perform aerobic Before beginning this exercise, which is activity that requires large amounts or any exercise program, consult your physi- of oxygen for prolonged periods of time. For aerobic cian. -
Page 31: Part List
PART LIST Model No. NTEL71320C.0 R0721A Key No. Qty. Description Key No. Qty. Description Base 17" Wire Frame 41" Wire Stabilizer Wheel Upright Foot Console Bracket Reed Switch/Wire Brace Reed Switch Clamp Control Bracket Drive Belt B Control Board 32" Wire... - Page 32 Key No. Qty. Description Key No. Qty. Description Right Inner Shield M6 x 10mm Screw Left Outer Cover M5 Locknut Left Inner Cover M10 Washer Right Outer Cover M10 x 18mm Washer Right Inner Cover M6 Washer Disc Cap Clip Right Inner Disc M4 x 16mm Screw Left Slot Cover...
-
Page 33: Exploded Drawing
EXPLODED DRAWING A Model No. NTEL71320C.0 R0721A... - Page 34 EXPLODED DRAWING B Model No. NTEL71320C.0 R0721A...
- Page 35 EXPLODED DRAWING C Model No. NTEL71320C.0 R0721A...
-
Page 36: Ordering Replacement Parts
ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
