SECTION 4
Always unlock the Discus
Padlock before placing the
Front Bar Assembly into
position.

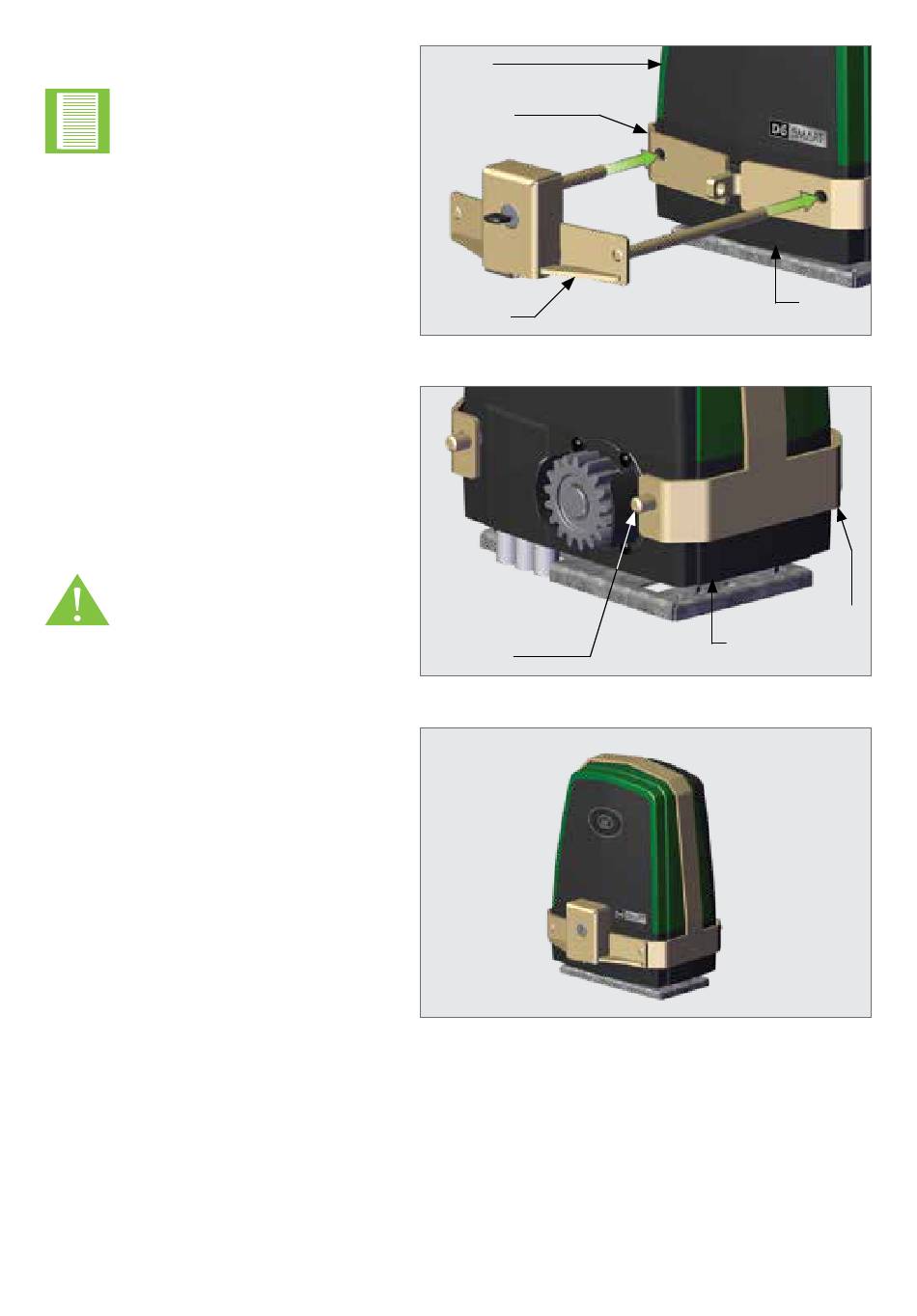

Align the two holes in the Overstrap
with the two holes in the front of
the SMART Operator's Gearbox,
and insert the Front Bar Assembly
through the holes of the Overstrap
and Gearbox.
Push the Front Bar Assembly
completely through the Gearbox
and Overstrap, ensuring that the
bar extends out the back of the
Overstrap.
Take care when pushing
the Front Bar Assembly
through the back of the
Gearbox.
Forcing it may cause
damage to the Gearbox
housing.
Lock the Front Bar Assembly into
position, remove the Key and store it
in a safe place.
The finished installation should look
as shown in Figure 7.

5. Installation Handover

Once the D3 SMART / D5-EVO SMART / D6 SMART Theft-Deterrent Cage has been
successfully installed and its operation tested, it is important for the operation and safety
considerations to be explained to the end-user of the system.
SMART OPERATOR THEFT-DETERRENT CAGE INSTALLATION
SMART
Operator
Overstrap
Front Bar
Assembly
Front Bar
Assembly
page 7
SMART
Operator Gearbox
FIGURE 5
Overstrap
SMART Operator
Gearbox
FIGURE 6
FIGURE 7
