SECTION 4
4. SMART Operator Theft-Deterrent Cage Installation
Images may vary according to the SMART Operator.
IMPORTANT!
In the case where one has the optional magnet origin system fitted,
relocate the gate magnet as close as possible to the operator cover and
reset the gate limits.
There is no need to remove
the cover of the SMART
Operator to install the
SMART Operator
Theft-Deterrent Cage.

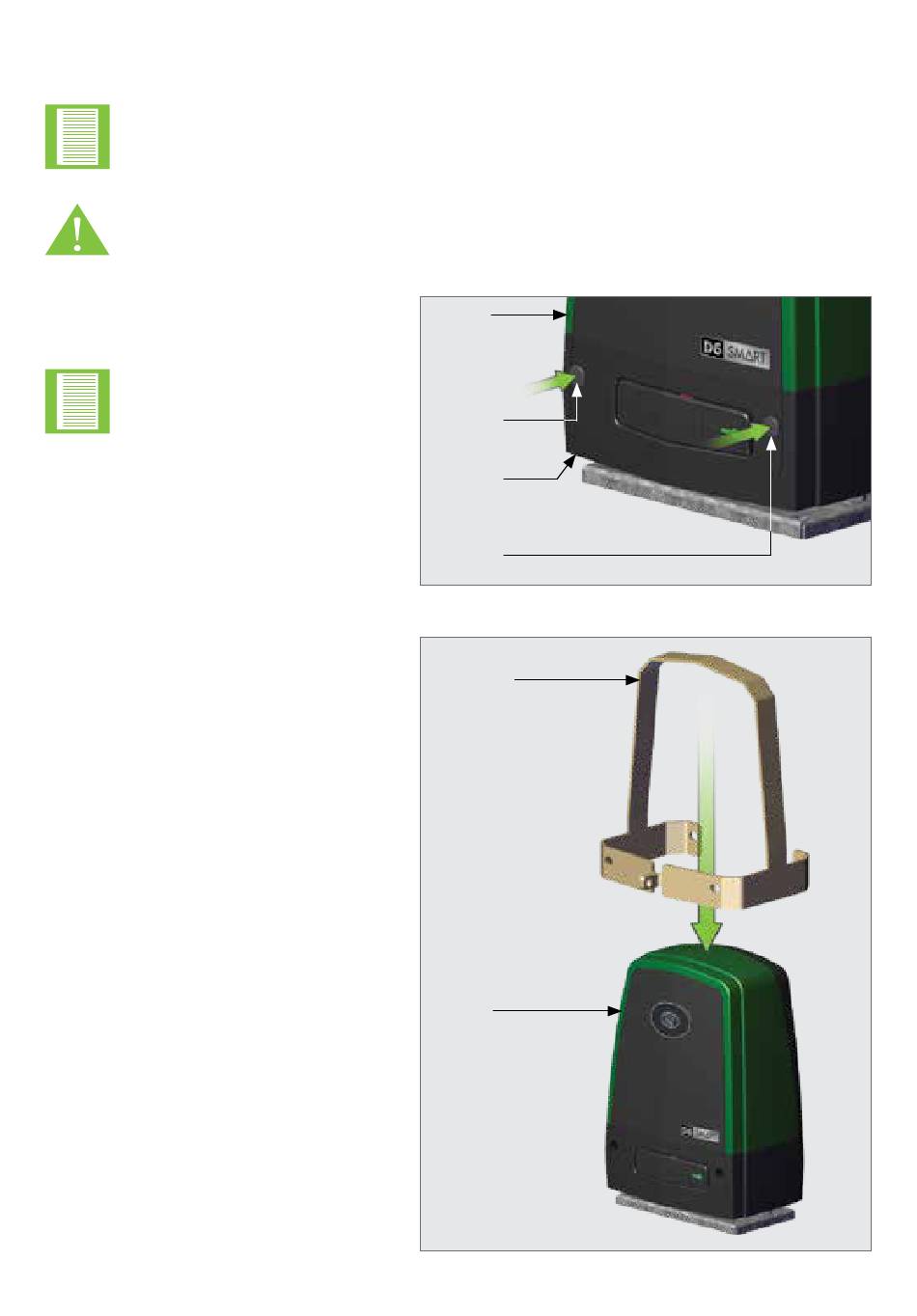

Push the two Gearbox Plugs (one on
either side of the Gearbox) into the
Gearbox.
Place the Overstrap over the top of
the SMART Operator.
SMART OPERATOR THEFT-DETERRENT CAGE INSTALLATION
SMART
Operator
Cover
Gearbox
Plug
Gearbox
Gearbox
Plug
Overstrap
SMART
Operator
page 6
FIGURE 3
FIGURE 4
