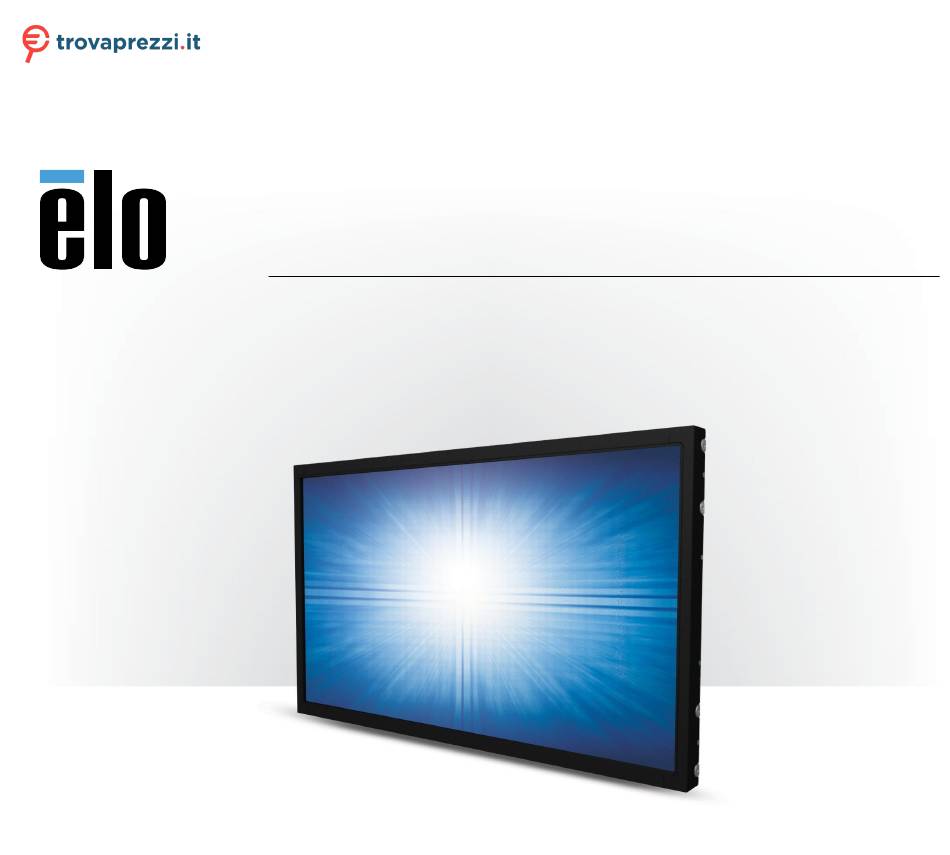

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Elo 1598L o cerca il tuo prodotto tra le migliori offerte di Monitor USER MANUAL Elo Touch Solutions ET1598L Frame Touchscreen...
- Page 2 Disclaimer The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Affiliates (collectively “Elo”) makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. Elo reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Elo to notify any person of such revisions or changes.
-
Page 3: Table Of Contents
Table of Contents Section 1: Introduction ............................................. 4 Section 2: Installation ............................................... 4 Section 3: Mounting ..............................................7 Section 4: Operation ..............................................9 Section 5: Technical Support ..........................................14 Section 6: Safety & Maintenance ........................................... 16 Section 7: Regulatory Information .......................................... 17 Section 8: Warranty Information .......................................... -
Page 4: Section 1: Introduction
Section 1: Introduction Product Description Your new touchscreen display combines Elo’s latest developments in touch technology and display design with the reliability for use in high-traffic environment. This touchscreen incorporates a 24-bit color, active matrix thin-film-transistor LCD panel to provide high quality display performance. The ET1598L offers resolution of 1024x768. -
Page 5: Section 2: Installation
Section 2: Installation Unpacking the Touchscreen Display Open the carton and verify that the following items are present: • VGA cable • User Manuals CD • USB cable • Japanese language regulatory information pamphlet • Mounting brackets • Quick Install Guide •... - Page 6 Connector Panel & Interfaces Touchscreen Display Connections 1. Connect the HDMI/DP/VGA video cables between the monitor’s HDMI/DP/VGA input connectors and your HDMI/DP/VGA video source. Tighten the video cable’s screws for best performance on VGA connector. 2. Connect the USB touch cable between the monitor’s USB connector and your PC’s USB port or Connect the Serial touch cable between the monitor’s COM (Serial) connector and your PC’s COM (Serial) port.
- Page 7 1. Please follow below install note to fix the kit on the back of the monitor. 2. Please connect the cable from power source to convertor via terminal block for 24V input and plug 12V DC jack to our monitor for 12V output. User Manual: ET1598L UM60119 Rev A, page 6 of 23...
- Page 8 Installing the Touch Technology Software Drivers No additional drivers are required for your projected-capacitive touchscreen displays with Windows 7 and 8 operating systems, it uses Windows HID drivers. If the monitor is used with Windows XP operating system, follow below steps to install Windows XP touch driver. To download the latest touch drivers 1.
-
Page 9: Section 3: Mounting
Section 3: Mounting Side Bracket Mount Side-mount Bracket Installation Notes: Bracket shape varies for each model, drawing for illustration purposes only. See dimensional drawing for exact dimensions. User Manual: ET1598L UM60119 Rev A, page 8 of 23... - Page 10 Rear VESA Mount A four-hole (75x75mm, 100x100mm) mounting pattern for M4 screws is provided on the rear of the monitor. The VESA FDMI-compliant counting is coded: VESA MIS-E,C. User Manual: ET1598L UM60119 Rev A, page 9 of 23...
-
Page 11: Section 4: Operation
Section 4: Operation Power The touchscreen display ships in an ON state. To turn the touchscreen display on or off, press the touchscreen display power button on the OSD controller once. The power status LED on the OSD controller functions according to the following table. - Page 12 Video A display’s native resolution is its width and height measured in number of pixels. Generally, for best performance, an image displayed on this monitor will look best when your computer’s output resolution matches this monitor’s native resolution. For computer output resolutions at non-native resolutions, the monitor will scale the video to its panel’s native resolution. This involves stretching or compressing the input image as needed in the X- and Y-dimensions to fit the display’s native resolution.
- Page 13 Using the OSD buttons controls an on-screen graphical user interface which displays on top of your input video, allowing intuitive adjustment of the following display parameters: Parameter Available Adjustment Increase/decrease monitor brightness. Brightness Default: maximum Increase/decrease monitor contrast. Contrast Default: best gray-shade performance Allow fine adjustments of the panel’s pixel dot clock.
- Page 14 Parameter Available Adjustment Adjust the horizontal location of the OSD menus on the display. OSD H-Position Default: centered Adjust the vertical location of the OSD menus on the display. OSD V-Position Default: centered Adjust how long a period of OSD button inactivity the touchscreen display will wait before closing the OSD. OSD Timeout The adjustable range is between 5 and 60 seconds.
-
Page 15: Section 5: Technical Support
Section 5: Technical Support If you are experiencing trouble with your touchscreen display, refer to the following suggestions. If the problem persists, please contact your local dealer or contact Elo Customer Service. Worldwide technical support phone numbers are available on the last page of this use manual. Solutions to Common Problems Problem Suggested Troubleshooting... - Page 16 Technical Assistance Technical Specifications Online Self-Help Technical Support visit www.elotouch.com/products visit www.elotouch.com/go/websupport visit www.elotouch.com/go/contactsupport for technical support for technical specifications for this device for online self-help See this user manual’s last page for worldwide technical support phone numbers. User Manual: ET1598L UM60119 Rev A, page 14 of 23...
-
Page 17: Section 6: Safety & Maintenance
Section 6: Safety & Maintenance Safety • To avoid risk of electric shock, follow all safety notices and do not disassemble the touchscreen display. They are not user-serviceable. • The slots located on the sides and top of the touchscreen display case are for ventilation. Do not block or insert anything inside the ventilation slots. •... -
Page 18: Section 7: Regulatory Information
Section 7: Regulatory Information Electrical Safety Information Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. There are no operator serviceable parts inside this equipment. - Page 19 General Information to all Users: This equipment generates, uses and can radiate radio frequency energy. If not installed and used according to this manual the equipment may cause interference with radio and television communications. There is, however, no guarantee that interference will not occur in any particular installation due to site-specific factors.
- Page 20 Explanation of Markings 1. In accordance with the SJ/T11364-2014 requirement, the electronic information products are marked with the following pollution control logo. The Environment-Friendly Use Period for this product is 10 years. The product will not leak or mutate under normal operating conditions listed below, so that the use of this electronic information product will not result in any severe environmental pollution, any bodily injury, or damage to any assets.
-
Page 21: Section 8: Warranty Information
Section 8: Warranty Information Except as otherwise stated herein, or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. The warranty for the touchscreen display and their components is three years. Seller makes no warranty regarding the model life of components. - Page 22 Notes User Manual: ET1598L UM60119 Rev A, page 23 of 23...
- Page 23 Press Releases • Software Drivers • Touchmonitor Newsletter To find out more about our extensive range of Elo touch solutions, go to www.elotouch.com, or call the office nearest you. North America Europe Asia-Pacific Latin America Tel +1 408 597 8000...
