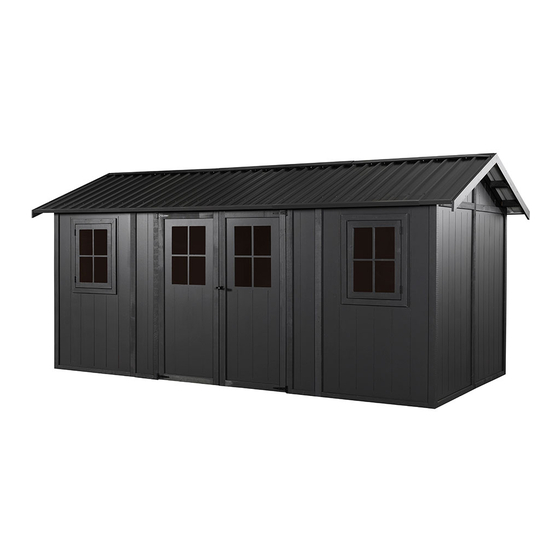

STILLA HAMPTON User Manual

Hide thumbs Also See for HAMPTON:

Advertisement

Quick Links

Download this manual

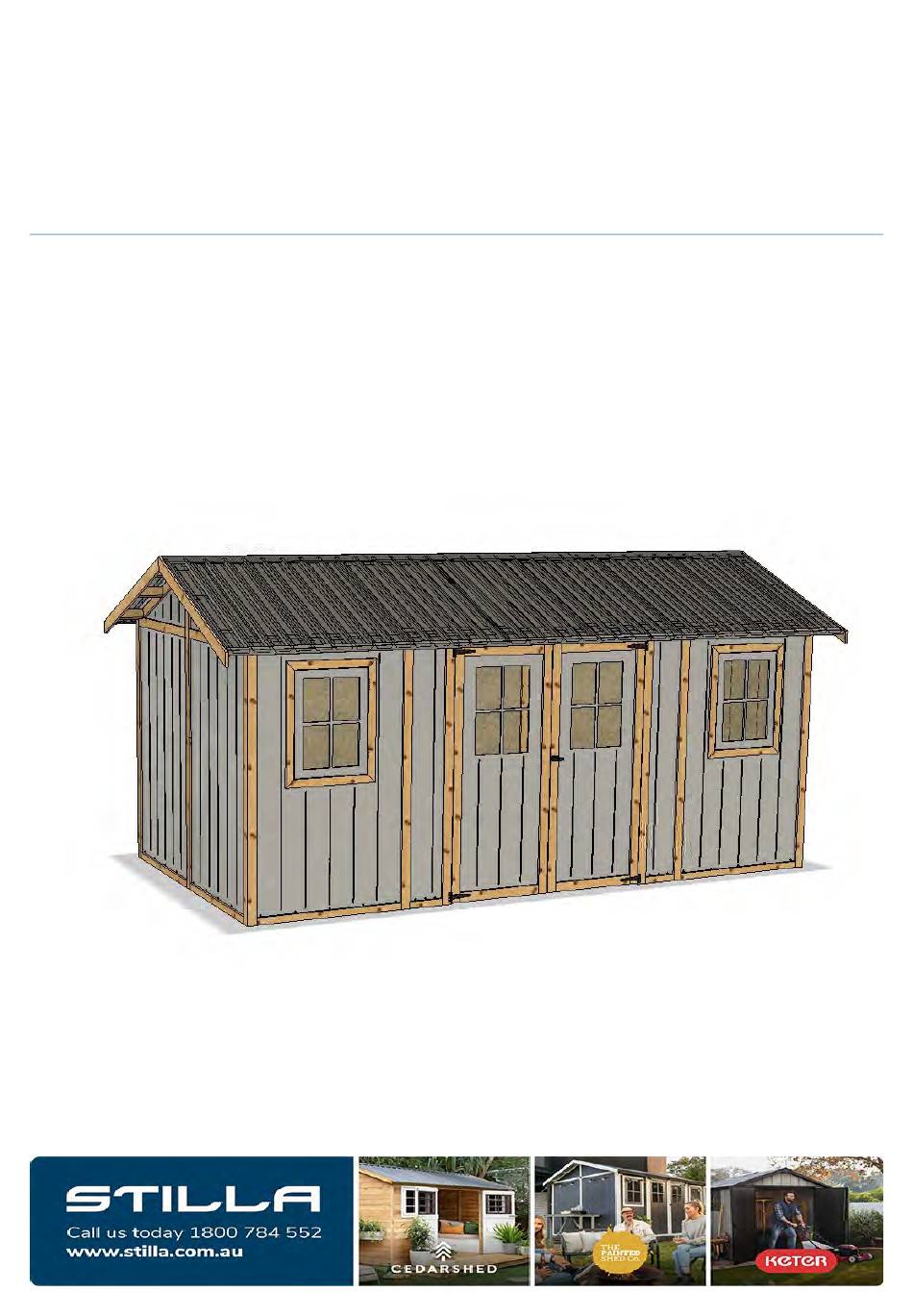

HAMPTON [16x8]
USER MANUAL
IMPORTANT
Read carefully. Retain for future refence
HAMPTON [16x8] -
V6, 03-2024

Advertisement

loading
Need help?

Need help?

Do you have a question about the HAMPTON and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STILLA HAMPTON

Summary of Contents for STILLA HAMPTON

  • Page 1 HAMPTON [16x8] USER MANUAL IMPORTANT Read carefully. Retain for future refence HAMPTON [16x8] - V6, 03-2024...
  • Page 2 & roofing. Please fully unpack all the parts & check against the parts checklist before con- tac ng customer service about anything you believe may be missing or damaged. Thank-you Protect Painted surfaces when laid down for processing. HAMPTON [16x8] - 2 V6, 03-2024...
  • Page 3 Light coloured crayon/chinagraph pencil white/yellow. Phillips Bit (PH2), Ba en Screw Bit, Phillips Bit #2, 5/16” Hex driver, Drill Bits 3mm & 4mm, Countersink Bit (or Combina- on.) This product requires a minimum of 2 persons to assemble. HAMPTON [16x8] - 3 V6, 03-2024...
  • Page 4 DG1217A1 Pine, 70mm x 45mm x 1217mm, Double Groove, Apex Angle top. SG1926A1 Pine 70 x 45 x 1926mm, Single Groove. Miter Top [230] DG1926 Pine 70x45x1926mm, Double Groove Plain ends PS32CSK, Phillips Screw #6 x 32mm, Countersunk. Panel Fixing to Frame HAMPTON [16x8] - 4 V6, 03-2024...
  • Page 5 P1130x1824, Window Panel 1130 x 1824 x 9.5mm, P295x1824, Weathertex Panel x 1824 x 9.5mm, Grooved Grooved 295 x 1824 x 9.5mm, Grooved OPENING WINDOW FRAMES [24] BH20 MO/SM, Fix WF Assy to WP1130 Opening WF-Assy, Painted Window frame [assembled] HAMPTON [16x8] - 5 V6, 03-2024...
  • Page 6 Phillips Screw #8 x 70mm, Counter- Phillips Screw #8 x 50mm, Countersunk. sunk. SB250 Top Fixing SB250 Bo om Fixing [105] SB250, Roof support Block 250mm BS125, Ba en Screw 125mm Galvanised. BS75, Ba en Screw 75mm Galvanized. HAMPTON [16x8] - 6 V6, 03-2024...
  • Page 7 [13] [26] BKT6040G, Bracket 60mm x 40mm wide, CS650, Concrete screw 6mm x 50mm. RS25, Roofing Screw 25mm Electro-Galvanised. MISCELLANEOUS TU MO/SM, Paint Touchup Sil-MO/SM, Silicone sealant 300ml – coloured Monument / Surfmist 500ml HAMPTON [16x8] - 7 V6, 03-2024...
  • Page 8 finished shed. PRE-DRILL - 3mm CP1926 [4] DG1926 [5] SG1926A [2] Drill internal webs only DG1130 [2] DG1217A [2] SG1740A2 [1] Drill opposite side to engraving SG1130T2 [6] DG1130T2 [4] SG295T2 [2] HAMPTON [16x8] - 8 V6, 03-2024...
  • Page 9 Plain 1130 panels. Window posi on will determine Top Plate configura- If to be on the Back wall [Opposite doors]. SG1130T2 should be fi ed. Back If to be placed in side walls DG1130T2 is required HAMPTON [16x8] - 9 V6, 03-2024...
  • Page 10 PS32CSK, 8 x 2 18mm 6 x Single Groove Top plate [Back Wall] 4 x Double Groove Top plate [Side Walls] HAMPTON [16x8] - 10 V6, 03-2024...
  • Page 11 Wall Panel Prepara on SG295T2 FS295T2 FB20 MO/SM P295x1824 PS32CSK PS32CSK Note: Front Panel Groove is offset. Check Orienta on before fixing Top Plates. FB20 MO/SM HAMPTON [16x8] - 11 V6, 03-2024...
  • Page 12 Panel Assy Or WP Assy CP1924 PS32CSK 2mm Gap 18mm Note: Layout Lines Construct a panel with Corner post on Right Rear face [as per image >] With SG top Rail [for Side wall] HAMPTON [16x8] - 12 V6, 03-2024...
  • Page 13 Panel Assy + DG Top PS32CSK Panel Assy + SG Top SG Top Plate DG Top Plate HAMPTON [16x8] - 13 V6, 03-2024...
  • Page 14 DG1130 DG1217A1 PS32CSK Angle cut to TOP FB32CSK [4] HAMPTON [16x8] - 14 V6, 03-2024...
  • Page 15 Side Wall Construc on Panel Assy [DG Top] CP1924 PS32CSK PS32CSK [4] HAMPTON [16x8] - 15 V6, 03-2024...
  • Page 16 Back Wall Assembly [14] Panel Assy [SG Top] DG1926 CP1924 PS32CSK [Alt WP Assy] PS32CSK [8] PS32CSK [6] Once Back wall is assembled. REPEAT step 12 & 13 for assembly of opposite Gable Wall. HAMPTON [16x8] - 16 V6, 03-2024...
  • Page 17 Front [Door] Side Panels WPA1130 PA295 [16] SG1924A1 PS32CSK PS32CSK [8] REPEAT above steps for the other side [L/H in this case]. HAMPTON [16x8] - 17 V6, 03-2024...
  • Page 18 HAMPTON [16x8] - 18 V6, 03-2024...
  • Page 19 Door Head [14] SG1740A2 FB20MO/SM DST1800-63 FB20MO/SM [13] HAMPTON [16x8] - 19 V6, 03-2024...
  • Page 20 CHECK structure for Square, once confirmed, fit remaining Screws to panels FB20MO/SM x 30 PS32CSK x 177 HAMPTON [16x8] - 20 V6, 03-2024...
  • Page 21 GABLES—Prepara on SG1299A2 DG451A1 [12] FB189 BS100 PRE-DRILL - SG1299A2 GABLE Angle—Addi onal Drilling for Facia Block DRILL —Through Hole required SG1299A2 [4] HAMPTON [16x8] - 21 V6, 03-2024...
  • Page 22 GABLE Angle—Addi onal Drilling for Facia Block DRILL 4mm—Minimum Depth 50mm FB189 [12] BS100 [3] HAMPTON [16x8] - 22 V6, 03-2024...
  • Page 23 GABLES [2] —Assembly [48] PS32CSK SG1299A2 HAMPTON [16x8] - 23 V6, 03-2024...
  • Page 24 Check Gable posi on is correct before Fixing in place with screws. PS32CSK REPEAT above steps for the other gable side. HAMPTON [16x8] - 24 V6, 03-2024...
  • Page 25 SB250—Roof Support Block PS75CSK—Screw Top fixing PS50CSK—Screw Bo om fixing PS75CSK [1] PS50CSK [1] Fit a Support Block to both Gables HAMPTON [16x8] - 25 V6, 03-2024...
  • Page 26 ROOF— Half Roof assembly [2] [12] REP1544 RF1135 LP872 [14] MREP1544 CH1800 MO / SM RS1400 MO / SM [140] [72] [28] RS50 MO / SM BS75 RD-AS2 MO / SM BS75 Pre-drilling will prevent spli ng! HAMPTON [16x8] - 26 V6, 03-2024...
  • Page 27 BS75 [8] HAMPTON [16x8] - 27 V6, 03-2024...
  • Page 28 BS75 [4] BS75 [4] BS75 [4] BS75 [4] HAMPTON [16x8] - 28 V6, 03-2024...
  • Page 29 If Insula on was specified, it needs to be fi ed to the roof frame before a aching the roofing sheets. Fix Insula on to Frame with Staples or insula on fixings where indicated (Staples / fixings not supplied). Ensure fixings are aligned with Frame. HAMPTON [16x8] - 29 V6, 03-2024...
  • Page 30 Top of Roof sheet has material folded upwards. Underside of Roof frame—Distance from sheet to frame edge. Roof sheet Top flush with top of frame. HAMPTON [16x8] - 30 V6, 03-2024...
  • Page 31 Lay Shee ng on Frame Sheets 2,3,4,5 &6 Single overlap Sheets 1/2 overlap 1. Sheets 6/7 overlap 2 Overlap 2 HAMPTON [16x8] - 31 V6, 03-2024...
  • Page 32 RS50 MO/SM [4] HAMPTON [16x8] - 32 V6, 03-2024...
  • Page 33 HAMPTON [16x8] - 33 V6, 03-2024...
  • Page 34 End Frame Fixings RS50 MO/SM [3] x2 Lower Roof Screws placed in Peaks of Sheet. Do not Over ghten. End Fixings placed in Valley nearest to end of Frame. HAMPTON [16x8] - 34 V6, 03-2024...
  • Page 35 RD-AS2 MO / SM [11] x 2 Fit outer channels to roof, Le and Right sides. Drill and rivet channel to 1st & 2nd peaks on outer edges. Drill and rivet channel to Roof sheet as indicated HAMPTON [16x8] - 35 V6, 03-2024...
  • Page 36 Roof Assembly—Installa on [28] CT-A BS75 [12] [10] Half roof Assembly PS50CSK BS125 Slide 1st Roof assembly onto the shed. HAMPTON [16x8] - 36 V6, 03-2024...
  • Page 37 Align edge of roof frame on apex of Support Block and Gable Align Base of Roof frame with Bo om of Gable Frame HAMPTON [16x8] - 37 V6, 03-2024...
  • Page 38 fi ng remaining roof panel. 6 x BS75 BS75 [3] x 2 Once the first roof panel is secured into the gables slide the other roof panel up into the corresponding gable gap. HAMPTON [16x8] - 38 V6, 03-2024...
  • Page 39 Bu Roof Frames to Apex of Support block. Secure 2nd frame to gables. Using BS75 [3] x 2 Fasten top of Roof Frames with BS125 x 5. HAMPTON [16x8] - 39 V6, 03-2024...
  • Page 40 Roof Side wall Fixings BS75 [3] BS75 [2] BS75 [3] Collar Ties PS50CSK [6] HAMPTON [16x8] - 40 V6, 03-2024...
  • Page 41 Gable assembly [24] F1500 PS32CSK PS32CSK HAMPTON [16x8] - 41 V6, 03-2024...
  • Page 42 Make sure peak of ridge cap is in line with peak of fascia's. Screw through ridge cap into 3rd and 10th Ribs, from each end of the roof. Drive these screws through and into roof frame. RS50 MO/SM [8] 10th HAMPTON [16x8] - 42 V6, 03-2024...

  • Page 43: Door Hanging

    Door Hanging Door Assy [L & R] TH150B 2mm > Le Hand shown—Right Mirrored. HAMPTON [16x8] - 43 V6, 03-2024...
  • Page 44 Hinge Screws [3] Top Hinge Shown—Bo om similar. HAMPTON [16x8] - 44 V6, 03-2024...
  • Page 45 HAMPTON [16x8] - 45 V6, 03-2024...
  • Page 46 Door Furniture BB100S DS1820x90 THB [Fixings Kit] FB20 MO/SM BH20 MO/SM [5] HAMPTON [16x8] - 46 V6, 03-2024...
  • Page 47 Upper Drop Bolt Lower Drop Bolt HAMPTON [16x8] - 47 V6, 03-2024...
  • Page 48 Side Door Stops, posi on BH20—5 per DS1820 HAMPTON [16x8] - 48 V6, 03-2024...
  • Page 49 Lock Posi on 12mm and 2 x 6mm Note—Clearance Hole in Door Stop required HAMPTON [16x8] - 49 V6, 03-2024...
  • Page 50 HAMPTON [16x8] - 50 V6, 03-2024...
  • Page 51 Op onal: Trim excess length off Lock Square sha . HAMPTON [16x8] - 51 V6, 03-2024...

  • Page 52: Anchor Kit

    Anchor Kit [not supplied if Heavy floor is op oned] [13] [13] [26] BKT6040G SB650 RS25 Bracket Posi ons HAMPTON [16x8] - 52 V6, 03-2024...
  • Page 53 Masonry Drill 5mm, 50mm Deep HAMPTON [16x8] - 53 V6, 03-2024...
  • Page 54 Insert Opening Window Frame [24] Opening Window Assembly FB20 MO/SM BH20 [12] HAMPTON [16x8] - 54 V6, 03-2024...

  • Page 55: Finishing Touches

    Once paint is dry, seal bo om and sides of panels with supplied Silicone sealant. TO REGISTER YOUR WARRANTY Thank-you for purchasing a STILLA product. To register your 10 year product warranty, please go to www.s lla.com.au/warranty and complete the online form.
