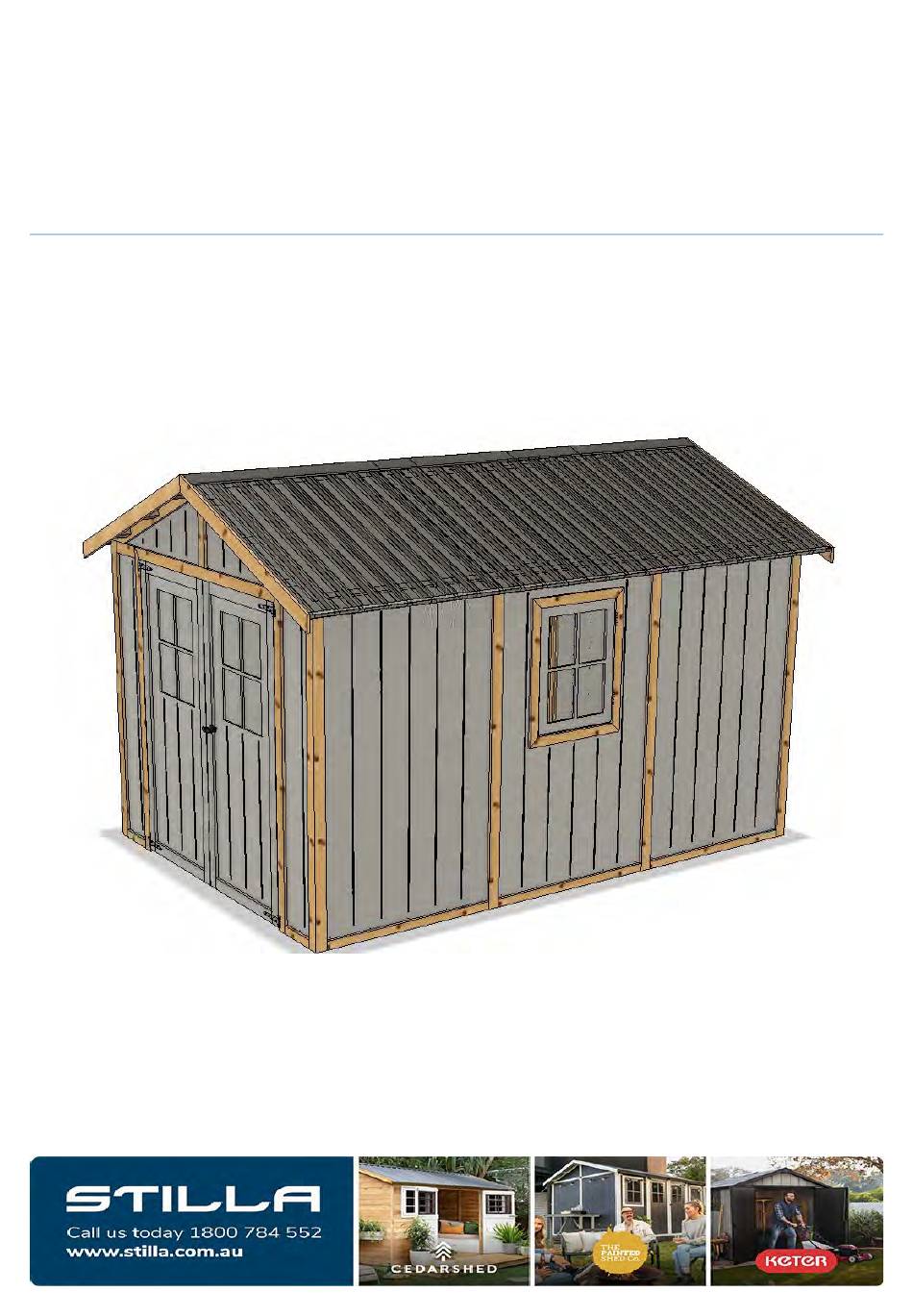

EASTWOOD [8x12]
USER MANUAL
IMPORTANT
Read carefully. Retain for future refence
V5—2023
Eastwood [8x12]

Advertisement

loading
Need help?

Need help?

Do you have a question about the EASTWOOD 8x12 and is the answer not in the manual?

Questions and answers

Related Manuals for STILLA EASTWOOD 8x12

Summary of Contents for STILLA EASTWOOD 8x12

  • Page 1 EASTWOOD [8x12] USER MANUAL IMPORTANT Read carefully. Retain for future refence V5—2023 Eastwood [8x12]...
  • Page 2 SAFETY & CARE GUIDELINES Take care when moving and working with the painted panels, use the supplied packaging to avoid damage to painted surfaces. When arranging the shed components for ini al check, do not store the panels laid down, stand up where possible. Ensure you fully understand the use of power tools recommended for use in assembling this shed.
  • Page 3 Preparing your site The installa on loca on needs to be flat, level and solid. Pavers or a solid material that will not be affected by weather can be used to perfectly level the shed by placing under the floor frame where required, make sure all members are supported.
  • Page 4 SHED COMPONENTS Carefully unpack all the items from shipping carton. Layout in a clean and safe area. Please check you have all compo- nents and they have no defects before proceeding. Door Assembly Door Assy, Door pre assembled WALL — BOTTOM PLATE [46] FS295T2, FS1130T2,...
  • Page 5 WALL —TOP PLATE DG1740A2 , Pine,70mm x 45mm x 1740mm, Double Groove, Miter Ends. DG1130T2, Pine,70mm x 45mm x 1130mm, Double Groove, Tenon Ends. SG1130T2, Pine,70mm x 45mm x 1130mm, Single Groove, Tenon Ends. DG295T2, Pine,70mm x 45mm x 295mm, Double Groove, Tenon Ends. WALL - PANELS P1130, Weathertex Panel 1130 x WP1130, Window Panel 1130 x 1824 x 9.5mm,...
  • Page 6 ROOF—Gable Frame [44] DG421A PS32CSK, Pine 70 x 45 x 421mm, Apex Phillips Screw #6 x SG1299A , Pine, 70 x 45 x 1299mm, Single Groove Angled cut (x4) 32mm, Countersunk. Panel Fixing angle cut to Door Frame GPL, Gable Panel Le , 1095 x 454 x 9.5mm, 22.5 Degree Pitch GPR, Gable Panel Right, 1095 x 454 x 9.5mm, 22.5 Degree Pitch ROOF FRAME RF1734, Roof Frame, Pine 70 x 45 x 1734mm.
  • Page 7 FURNITURE THB, “T” Handle Black with TH150B, “T” Hinge 150mm, DS1820x90, Doorstop, Wethertex Panel 1820 x 90 x 9.5mm fixings, Keys and Locking Black with fixings Quadrant [20] BB100SS, Barrel Bolt, SS, 100mm FB20MO/SM DST1800 , S ch Screw #6 x , Door Stop Top, Weathertex 1800 x 83mm plus Hinge Screws [12] 20mm, Flat Bu on Head, DS Fixing to...
  • Page 8 WALL CONSTRUCTION—Frame & Panel MATERIAL SELECTION - Pre-select top plate and upright components for assembly, mber is a natural material, selec ng best the best side of components will help the aesthe cs of the finished shed. PRE-DRILL - 3mm CP1926 [4] DG1926 [4] SG1926A [2]...
  • Page 9 Wall Panel Prepara on FS1130 P1130x1824 SG1130T2 [4x2] [16] DG1130T2 PS32CSK FB20 MO/SM FB20, 4 x 2 NOTE: Window posi on in shed, will determine Top Plate configura on. If to be on the Back wall [Opposite doors]. DG1130T2 should be fi...
  • Page 10 PS32CSK, 8 x 2 18mm 2 x Single Groove Top plate [Back Wall] 6 x Double Groove Top plate [Side Walls] Overall height of panels should be equal to ver cal beams [1926mm]. CP1926 or DG1926 can be used as a gauge to ensure ideal panel height of the top plate component.
  • Page 11 Wall Panel Prepara on DG295T2 FS295T2 FB20 MO/SM P295x1824 PS32CSK PS32CSK Note: Front Panel Groove is offset. Check Orienta on before fixing Top Plates. FB20 MO/SM Overall height of panels should be equal to ver cal beams [1926mm]. CP1926 or DG1926 can be used as a gauge to ensure ideal panel height of the top plate component. V5—2023 Eastwood [8x12]...
  • Page 12 Panel Assy Or WP Assy CP1924 PS32CSK 2mm Gap 18mm Note: Layout Lines Construct a panel with Corner post on Right Rear face [as per image >] With SG top Rail [for Side wall] V5—2023 Eastwood [8x12]...
  • Page 13 Panel Assy + DG Top PS32CSK Panel Assy + SG Top SG Top Plate DG Top Plate V5—2023 Eastwood [8x12]...
  • Page 14 DG1130 DG1217A1 PS32CSK Angle cut to TOP FB32CSK [4] V5—2023 Eastwood [8x12]...
  • Page 15 Panel Assy [DG Top] CP1924 PS32CSK PS32CSK [4] V5—2023 Eastwood [8x12]...
  • Page 16 [10] Panel Assy [SG Top] DG1926 CP1924 PS32CSK [Alt 1 WP Assy] PS32CSK [10] V5—2023 Eastwood [8x12]...
  • Page 17 [10] Panel Assy [SG Top] DG1926 CP1924 PS32CSK [Alt 1 WP Assy] Opposite Wall hidden for clarity PS32CSK [10] V5—2023 Eastwood [8x12]...
  • Page 18 Front Panel Assy PS32CSK PS32CSK Rear panels hidden for clarity V5—2023 Eastwood [8x12]...
  • Page 19 PS32CSK Rear of Door opening shown. Some assemblies hidden for clarity. V5—2023 Eastwood [8x12]...
  • Page 20 Door Head [14] SG1740A2 FB20MO/SM DST1800 FB20MO/SM [13] V5—2023 Eastwood [8x12]...
  • Page 21 CHECK structure for Square, once confirmed, fit remaining Screws to panels FB20MO/SM x 26 PS32CSK x 177 V5—2023 Eastwood [8x12]...
  • Page 22 GABLES—Prepara on SG1299A2 DG451A1 [12] FB173 BS100 PRE-DRILL - 3mm SG1299A2 DG451A2 18mm 18mm V5—2023 Eastwood [8x12]...
  • Page 23 GABLE Angle—Addi onal Drilling for Facia Block DRILL 4mm—Through Hole required SG1299A2 [4] DRILL 4mm—Minimum Depth 50mm FB173 [12] BS100 [3] V5—2023 Eastwood [8x12]...
  • Page 24 GABLES [2] —Assembly [48] PS32CSK V5—2023 Eastwood [8x12]...
  • Page 25 Check Gable posi on is correct before Fixing in place with screws. PS32CSK V5—2023 Eastwood [8x12]...
  • Page 26 GABLE—Door Side V5—2023 Eastwood [8x12]...
  • Page 27 V5—2023 Eastwood [8x12]...
  • Page 28 ROOF— Half Roof assembly [2] RF1735 RF1125 LP1906 [12] CH1520 MO / SM RS1400 MO / SM [110] [70] [36] RS50 MO / SM BS75 RD-AS2 MO / SM RF1735 RF1125 BS75 [8] Pre-drilling will prevent spli ng! V5—2023 Eastwood [8x12]...
  • Page 29 BS75 [8] V5—2023 Eastwood [8x12]...
  • Page 30 Top of Roof sheet has material folded upwards. Underside of Roof frame—Distance from sheet to frame edge. Roof sheet Top flush with top of frame. V5—2023 Eastwood [8x12]...
  • Page 31 Lay Shee ng on Frame Sheets 1/2 overlap 1. Sheets 2/3 overlap 2 Overlap 2 V5—2023 Eastwood [8x12]...
  • Page 32 Sheets 3/4 overlap 2 Sheets 4/5 overlap 2 Sheets 5/6 overlap 2 V5—2023 Eastwood [8x12]...
  • Page 33 RS50 MO/SM [4] V5—2023 Eastwood [8x12]...
  • Page 34 V5—2023 Eastwood [8x12]...
  • Page 35 End Frame Fixings RS50 MO/SM [3] x2 Lower Roof Screws placed in Peaks of Sheet. Do not Over ghten. End Fixings placed in Valley nearest to end of Frame. V5—2023 Eastwood [8x12]...
  • Page 36 RD-AS2 MO / SM [11] 1st & 2nd Peaks then 3 Peak Spaces then Penul mate and Last Peak. V5—2023 Eastwood [8x12]...
  • Page 37 Roof Assembly—Installa on [28] BS75 [12] Half roof Assembly SB150 CT-A BS65 [3] x4 Sides Align Base of Roof frame with Bo om of Gable Frame V5—2023 Eastwood [8x12]...
  • Page 38 Roof Support Blocks [4] and Collar Ties BS65 [2] x 4 Pre-drilling Support Blocks will prevent spli ng! Collar Tie BS65 [4] x 2 V5—2023 Eastwood [8x12]...
  • Page 39 Gable assembly [24] PS32CSK V5—2023 Eastwood [8x12]...
  • Page 40 Ridge Cap Remove Protec ve film from painted face of Ridge Caps. Place ridge caps into posi on carefully, avoid dragging or scratching. Make sure peak of ridge cap is in line with peak of fascia's. Screw through ridge cap into 3rd and 10th Ribs, from each end of the roof.

  • Page 41: Door Hanging

    Door Hanging Door Assy [L & R] TH150B 2mm > Le Hand shown—Right Mirrored. V5—2023 Eastwood [8x12]...
  • Page 42 Hinge Screws [3] Top Hinge Shown—Bo om similar. V5—2023 Eastwood [8x12]...
  • Page 43 V5—2023 Eastwood [8x12]...
  • Page 44 Door Furniture DS1820x90 BB100S THB [Fixings Kit] DS115x90 FB20 MO/SM V5—2023 Eastwood [8x12]...
  • Page 45 BH20 MO/SM [5] V5—2023 Eastwood [8x12]...
  • Page 46 Lock Posi on 12mm and 2 x 6mm Note—Clearance Hole in Door Stop required V5—2023 Eastwood [8x12]...
  • Page 47 V5—2023 Eastwood [8x12]...
  • Page 48 Op onal: Trim excess length off Lock Square sha . V5—2023 Eastwood [8x12]...
  • Page 49 Lower Drop Bolt V5—2023 Eastwood [8x12]...

  • Page 50: Anchor Kit

    Anchor Kit [11] [11] [22] BKT6040G SB650 RS25 Bracket Posi ons V5—2023 Eastwood [8x12]...
  • Page 51 Masonry Drill 5mm, 50mm Deep V5—2023 Eastwood [8x12]...
  • Page 52 Insert Opening Window Frame [12] Opening Window Assembly FB20 MO/SM BH20 [12] V5—2023 Eastwood [8x12]...

  • Page 53: Finishing Touches

    Once paint is dry, seal bo om and sides of panels with supplied Silicone sealant. TO REGISTER YOUR WARRANTY Thank-you for purchasing a STILLA product. To register your 10 year product warranty, please go to www.s lla.com.au/warranty and complete the online form.
  • Page 54 ASCOT / EASTWOOD INSTALLATION GUIDE HEAVY FLOOR [8x12][12X8] 8x12 - 12x8 Floor...
  • Page 55 SAFETY & CARE GUIDELINES Take care when li ing and moving components. Flooring sheets and assembled frames require a minimum of 2 per- sons to li safely. Team li ing of heavy items is recommended to avoid injury. Ensure you fully understand the use of power tools recommended for use in assembling this floor. Eye protec on should be worn when necessary, when opera ng power tools.
  • Page 56 Floor Frame Dimensions 8x12 has door opening on the short side; 12x8 has door opening on long side 8x12 - 12x8 Floor...

  • Page 57: Kit Contents

    Kit Contents [12] L750 SJ1707 Log 100x100x750mm,H4 Suitable for uneven ground. It is recommended that the posts Single Joist 140x38x1707mm are concreted 400-500mm in the ground. DJ1707 EP1200 Double Joist 140x38x1707mm End Plate [Drilled] 140x38x1200mm YT505267 YT1798267 Floorboard 1798 x 267mm Floorboard 505 x 267mm.
  • Page 58 Assemble Quarter Frames [4] Qty listed per Frame [Qty] DJ1707 EP1200 [18] BS100 SJ1707 Assemble Frames: Assemble individual frames first. Screw through predrilled holes in End Plate (EP) into Single and Dou- ble Joists DJ & SJ) using 100mm ba en screws (100BS). Assemble the 4 frames. The frames are used to mark out the post loca ons for the floor.
  • Page 59 BS100 [3] BS100 [2] 8x12 - 12x8 Floor...
  • Page 60 BS100 [8] 8x12 - 12x8 Floor...
  • Page 61 Quarter Frame Spacings Floor Nogs [F350] are ideal for use as Joist spacer. Quarter Frame [4] 8x12 - 12x8 Floor...
  • Page 62 Posi on and 1st Quarter frame Qty listed per Frame [Qty] L750 [16] BS100 Qtr. Frame Lay Frame in installa on loca on. Mark inside of frame posi ons, on ground. [Red do ed circle on diagram below]. Remove material to achieve level frame It is recommended that the posts are concreted 400-500mm in the ground.
  • Page 63 Secure Posts to Frame: Predrill [post] screw posi on prior to fi ng screws, four per post. Stagger the alignment of the Screw to avoid interference of the screws Posts and fixings arrangement. NOTE: L750 sits under DJ extension 8x12 - 12x8 Floor...
  • Page 64 Levelling and filling in: Once posts are fi ed and secured, move frame to prepared loca on, level the posts and frames. A level frame is essen al Concrete / Backfill each post into loca on, Check and adjust level and square before concrete sets up / Tamping in.
  • Page 65 Posi on 2nd Quarter frame Qtr. Frame L750 BS65 BS100 Note: DJ’s to outside edge of frame assembly. Lay Frame in installa on loca on. Mark inside of frame posi ons, on ground. [Red do ed circle on diagram above]. Remove sufficient material to achieve level frame 8x12 - 12x8 Floor...
  • Page 66 BS65 [4] Fix Frames together BS100 [8] 8x12 - 12x8 Floor...
  • Page 67 Repeat fixing and levelling process as in step 2. Fasten Frames with BS65 prior to fixing Logs. Levelling and filling in: Once posts are fi ed and secured, level the posts and frames. A level frame is essen al Concrete / Backfill each post into loca on, Check and adjust level and square before concrete sets up / Tamping in.
  • Page 68 BS65 [6] Fix Frames together 8x12 - 12x8 Floor...
  • Page 69 Floor Nogs [36] FN350 BS100 [4] BS100 per Nog. Fixing the top of Nog flush with top of the frame will assist with floor level. Final check for frame/s level should be made before Flooring is fi ed. Please ensure posts and frames are level before finalizing Concre ng or Tamping in of posts.
  • Page 70 Flooring YT1798800 YT1798267 YT505800 [125] YT505267 PS50CSK 8x12 - 12x8 Floor...
  • Page 71 Note: There are crosses printed on the Floorboard surface. These are used for manu- facturing control and not alignment points for fixings. PS50CSK—[3] per Joist PS50CSK—[2] covering Nogs 8x12 - 12x8 Floor...
  • Page 72 8x12 - 12x8 Floor...
  • Page 73 Con nue Placing and Fixing the flooring un l Frame is covered as shown on page 17. 8x12 - 12x8 Floor...
  • Page 74 Anchoring of Shed to Floor [10] PRE—DRILL Frame Sills in posi ons indicated below PS75 85˚ toward centre of Frame sill. 8x12 - 12x8 Floor...
  • Page 75 PS75 [2] 85˚ 8x12 - 12x8 Floor...
  • Page 76 8x12 - 12x8 Floor...
  • Page 77 TO REGISTER YOUR WARRANTY Thank-you for purchasing a STILLA product. To register your 10 year product warranty, please go to www.s lla.com.au/warranty and com- plete the online form. We recommend that you complete this step once you have finished installing your product.
