Testec TT-HX 212 Manual

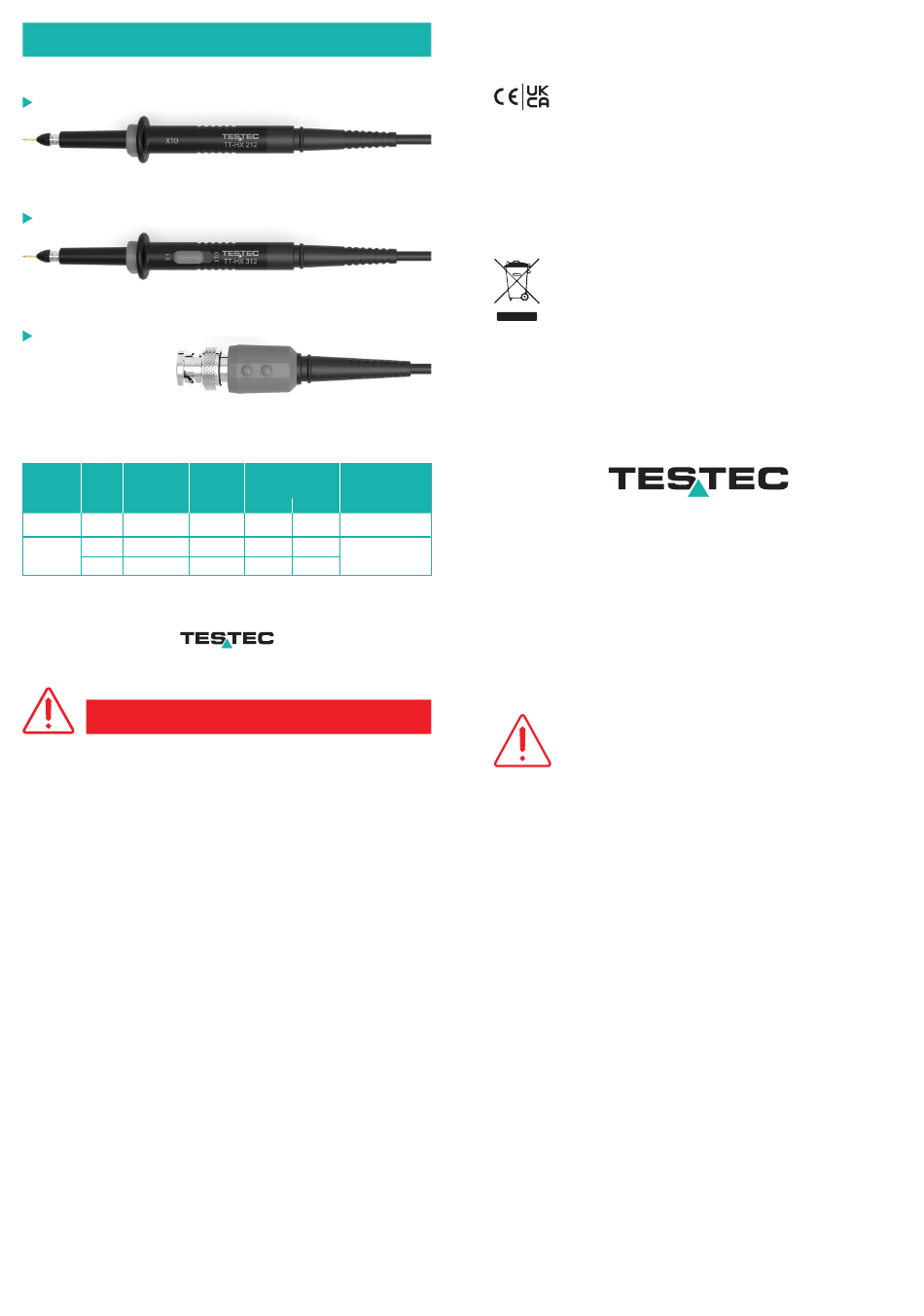

TT-HX 212/312

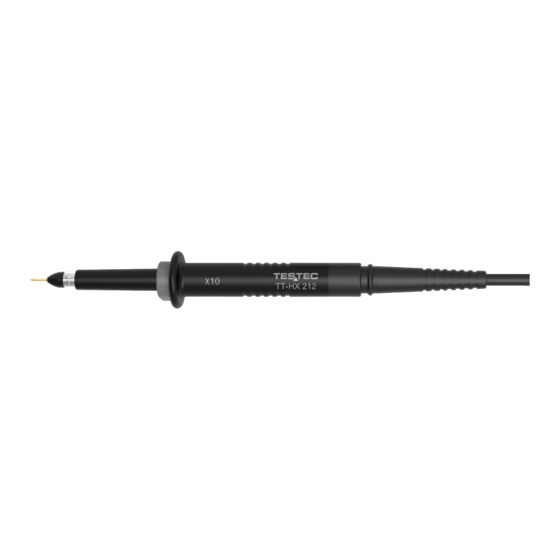

TT-HX 212
TT-HX 312
TT-HX 212/312
Specifications
Model Attn. Bandwidth
Time (ns)
TT-HX 212 x10 350
x1 10
TT-HX 312
x10 350
Cable Lenght 1.2 Meter
To reduce risk of fire or electric shock, do not exceed the voltage
or category ratings of the probe. See voltage derating curve
Max Input Voltage Attenuation x1:
.................................................................55Vrms Measurement Category II
Max Input Voltage Attenuation x10:
.................................................................400Vrms Measurement Category II
.................................................................1500V Transient Overvoltage
DC-Accuracy ..............................................±2%
Pollution Degree .........................................Pollution Degree 2*
Operating Altitude .......................................Up to 3000 meters
Max. Operating Temp ..................................0° C to +50° C
Humidity ...................................................5% to 95% RH (10 to 30 °C)
.................................................................5% to 50% RH (above 40 °C)
.................................................................RH not controlled below 10 °C
* As defined in IEC 61010-031. See definitions below.
Definitions
Measurement Category II (CAT II) refers to measurements performed on circuits
directly connected to utilization points (socket outlets and similar) of the low-voltage
mains installation.
Pollution Degree 2 refers to an operation environment where normally only dry
non-conductive pollution occurs. Temporary conductivity caused by condensation
should be expected.
Rise Input Compensation
Impedance Range (pF)
R ( MΩ) C (pF)
1 10 13 8-25
35 1 47
8-25
1 10 13
1
Compliance Statements
EC Declaration of Conformity
The product conforms to the applicable European Union requirements
per IEC/EN 61010-031 safety requirements for electrical equipment
for measurement, control and laboratory use. Part 31: Safety require-
ments for hand-held probe assemblies for electrical measurement
and test.
EU RoHS Compliance
The probe and accessories conform to the 2011/65/EU RoHS2 directive.
Disposal of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with
separate collection systems). This product is subject to directive
2012/19/EU of the European Parliament and the Council of the Euro-
pean Union on waste electrical and electronic equipment (WEEE), and
in jurisdictions adopting that directive, is marked as being put on the
market after August 13, 2005, and should not be disposed of as
unsorted municipal waste. Please utilize your local WEEE collection
facilities in the disposition of this product and otherwise observe all
applicable requirements.
Testec Elektronik GmbH
Voltastr. 8-10
63303 Dreieich/Germany
Phone: +49 69 943 335-0
info@testec.de
www.testec.de
General Safety Information
Observe generally accepted safety procedures in addition to those
listed here to avoid personal injury or damage to equipment.
The overall safety of any system incorporating this accessory is the
responsibility of the assembler of the system.
Connect only to grounded instruments. Use only with oscilloscopes that have
BNC with 1 MΩ input and connected to an earth ground. Do not connect the probe
reference lead to any point which is at a potential other than earth ground.
Connect and disconnect properly. Connect probe to the oscilloscope before con-
necting it to the test circuit. Disconnect the probe input and reference lead from
the test circuit before disconnecting from the oscilloscope. Do not connect/discon-
nect probes while connected to a voltage source
.
Do not overload. Do not apply any potential to the probe leads that exceeds the
maximum rating of the probe. Observe all terminal ratings on the oscilloscope
before connecting. Consult the oscilloscope product manual for further ratings
information.
Always comply with the Voltage vs. Frequency Derating Curve.
Do not disassemble. Touching exposed connections may result in electric shock.
Use indoors only within operational environment listed. Do not use in wet or
explosive atmospheres. Keep product surfaces clean and dry.
Handle with care. Probe tips are extremely sharp and may puncture skin or cause
other bodily injury if not handled properly.
Keep fingers behind the finger guard of probe body and accessories.
Do not operate with suspected failures. Before each use, inspect the probe and
accessories for any potential damage such as tears or other defects in the probe
body, cable jacket, accessories, etc. If any part is damaged, cease operation
immediately and sequester the probe from inadvertent use.
2
