CyberData 011588 Installation Quick Reference page 2

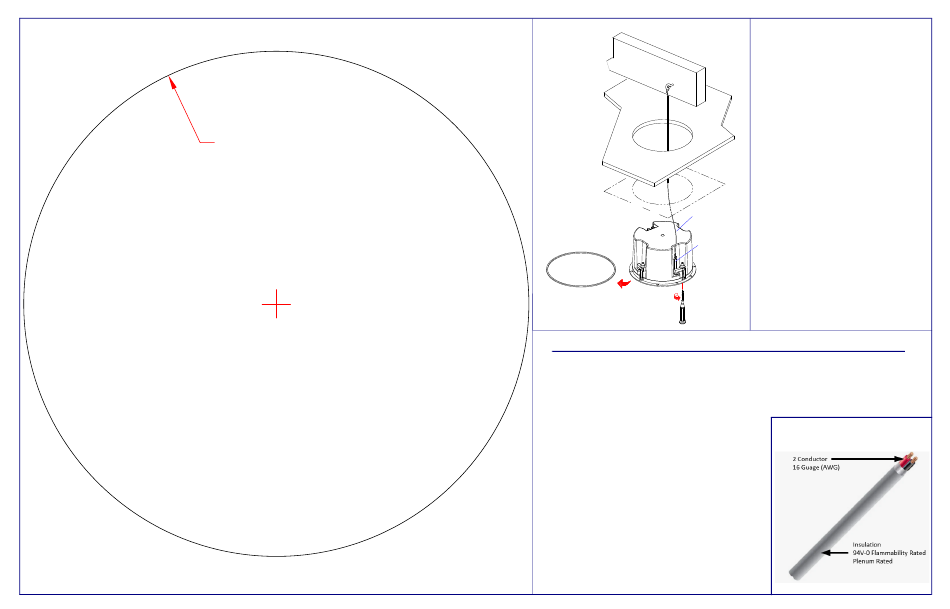

Mounting Template
Dimensions are in Inches [Millimeters]
© 2024, CyberData Corporation, ALL RIGHTS RESERVED
Ø8.858 [Ø225]
932029C Quick Reference
Mounting Instructions
Joist
Eyebolt
Ceiling Tile
Use Template or
Make Hole Size:
8.875 inches [225 millimeters] Steel Wire
on the Ceiling Tile
Seismic Tether Bracket
Speaker Grill
Remove Speaker Grill to
Access Flagnut Screws
Phillip Drive
Screwdriver
General Wire Recommendation for 25V or 70V Speakers
For the majority of installations we recommend the following specifications for the speaker wiring.
16/2 (16AWG/2 Conductor) Gray Stranded In-Wall CL3R Speaker Wire (see figure below)
• Use with speaker systems in an indoor audio system
• Class 3, riser rated for in-wall installation in riser and non-riser spaces
• PVC insulating jacket
• 2 fully annealed class B stranded bare copper conductors
• 16-Gauge
• UL Type CL3R
• Plenum rated
There are many brands that will work, but we have personally
tested the Southwire company. The description below are the
details on this wire in a 500 foot length.
P50002 SY 16/2 STR CU OAS CMP/CL3P CMP/CL3P/FPLP FT6
PLENUM SHIELDED STRANDED 185 25.07
Quick Reference
Tools Required for Installation:
• (1) Sheetrock Saw or Drywall Cutter
• (1) #2 Phillips Screw Driver or Powered
Screw Driver with #2 Phillips Hex Bit
To mount the speaker:
1. Loosen the Four (4) flag nuts with a #2
Phillip Screw Driver or Powered Screw
Driver.
2. Use the TEMPLATE on the back of this
document to cut a hole in the wall* or
ceiling.
*Skip the seismic tether mounting when
mounting it to the wall.
3. Tighten the Four (4) flag nuts with a #2
Phillip Screw Driver or Powered Screw
(Pre-Installed) Driver.
4. Replace the speaker grill to the speaker
Speaker
housing.
Assembly
16/2 (16AWG/2 Conductor) Gray
Stranded In-Wall CL3R Speaker Wire
932029C © 2024, CyberData Corporation, ALL RIGHTS RESERVED
