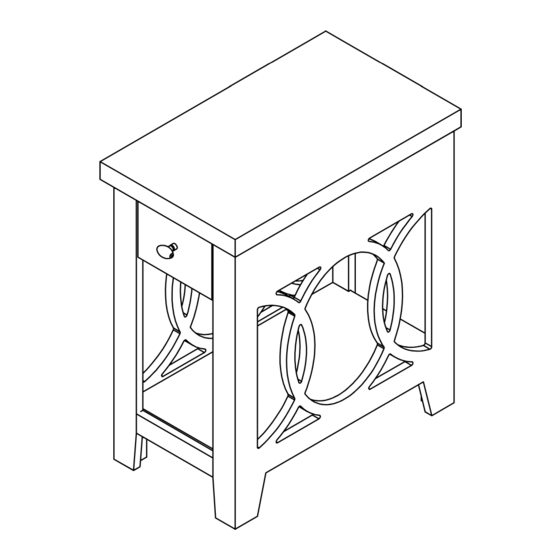

SIDE TABLE
Important: Be sure to check all packing material carefully for small parts which may come loose
inside carton during shipment. Separate, identify and count all parts and metal hardware.
Compare with parts list and hardware illustrations to be sure all parts are present. If any part(s)
is missing or damage, contact your dealer's customer service deparment. For efficient and
fast service, please indicate the model number and the parts needed.
ATTENTION: Some lettered parts listed on the instruction sheets may not be in
the parts bag, they may already be assembled.
TOOLS REQUIRED
(Not included)
Phillips Screwdriver
ANTI-TIP
Part No. HB-488UV (1Pc)
ASSEMBLY INSTRUCTIONS
MODEL No. FLO30-16 / 27724992
HBJ-10730-41
Part No.
(1 Pcs) INSTALLED
FLO30-35 / 27424996
FLO30-86 / 27624990
FLO30-114/27524998
BOLT CH. TRUSS 8 x 32 x 7/8"
Part No. HCPP-078
(1 Pcs) INSTALLED
Page 1 of 2
Advertisement
Related Manuals for ROOMS TO GO Abbie FLO30-16
Summary of Contents for ROOMS TO GO Abbie FLO30-16
- Page 1 ASSEMBLY INSTRUCTIONS MODEL No. FLO30-16 / 27724992 FLO30-35 / 27424996 SIDE TABLE FLO30-86 / 27624990 FLO30-114/27524998 Important: Be sure to check all packing material carefully for small parts which may come loose inside carton during shipment. Separate, identify and count all parts and metal hardware. Compare with parts list and hardware illustrations to be sure all parts are present.
- Page 2 WARNING INSTALL FURNITURE TIPPING RESTRAINT KIT Warning Advertencia Avertissement ANTI-TIP Installation instructions: This tip restraint must be attached to wall stub using 2” screw enclosed 1.Attach a bracket securely to the back top rail of the furniture using the 5/8” screw provided through the smaller hole. 2.
