Nova 9037-R How To Assemble

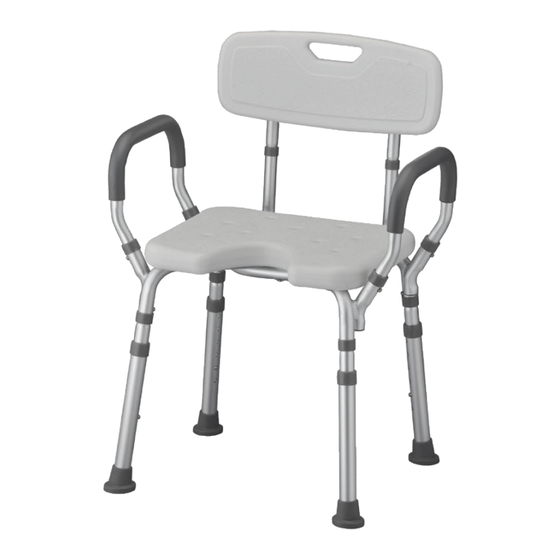

HOW TO
ASSEMBLE YOUR
HYGIENIC BATH SEAT WITH
BACK AND ARMS
Item # 9037, 9037-R
Capacity not to exceed 300 lb
1
Place the seat face down on a level surface.
Insert the four legs into the tubing holes.
Depress the push button and push the tube in
until the button "clicks" and locks into position.
Tubing holes
3
Turn the chair on its side so that the tubing
holes are facing upward. Insert backrest into
tubing holes until the push buttons "click" and
lock into position.
Push button
5
Use the push buttons and numbered holes
to adjust the seat to the desired seat height.
Ensure the Bath Seat is level, stable, and all
push buttons are fully engaged before using.
a.
c.
d.
Tubing holes
WHAT'S IN THE BOX
a. (1) Seat
b. (1) Backrest
b.
c. (2) Arms
d. (4) Adjustable legs
e. (2) L-shaped back
e.
tubes
2
Insert the L-shaped back tubes into the
backrest tubing holes until the push button
"clicks" into locked position.
4
Place the chair upright so that it is resting
evenly on all four legs and insert the arms into
the frame. Depress both push buttons and push
down until the push buttons "click" and lock
into position. Repeat this step for the opposite
arm.
NOTE: Arms should curve inwards towards
each other.
NO tools required
Quick assembly
Easy to follow
step-by-step
instructions
Revised March 07, 2018
