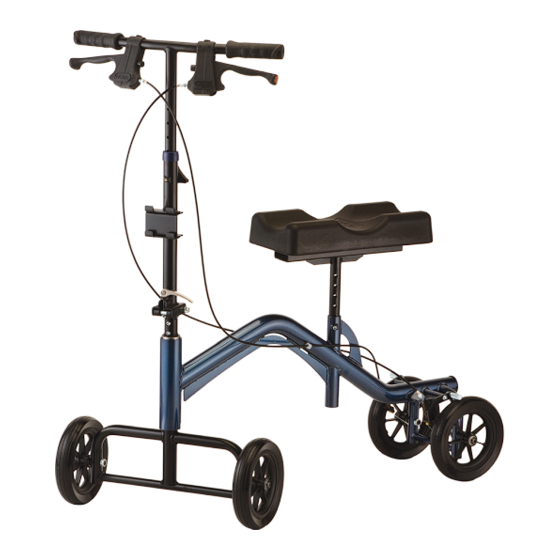

HOW TO USE YOUR
Knee Walker
TKW-13
TKW-14
Specifications
Weight Capacity
Weight
Approximate User Height
Handle Height Adjustment
Platform Height Adjustment
The hand clamp located at the base of the steering column should secure the mast tightly
to the frame so that there is no play or looseness. The following steps (if necessary) will
allow you to adjust the tightness of the clamp if you find that it is either is too hard to push
down or too loose to hold the mast securely.
1
Place the clamp in the downward position.
2
Push upward on the clamp until the nut is between the two sides of the
mast platform. (see image 1)
3
Turn counterclockwise to loosen the tension on the clamp or turn
clockwise to tighten the tension on the clamp.
1
Pull the clamp arm up to release the clamp and push the clamp arm forward.
2
Slide the clamp to the right so that the pin disengages from the mast platform.
3
Gently guide the steering column downward and position below the seat.
1
Remove the triangular adjustment knob by turning counterclockwise.
2
Adjust the handles to the desired height.
3
Insert the screw into the hole on the mast and tighten until secure.
TKW 13
400 lb
29 lb
4'11" - 6'2"
30.25" - 37.25"
17" - 21.5"
Steering Mast Hand Clamp Adjustment
To Lower the Steering Column (for Transport)
Steering Mast Height Adjustment
TKW 14
400 lb
32 lb
6'2" - 6'8"
35.25" - 41.25"
21" - 25.5"
Also find the User Guide and
TKW accessories online at
novamedicalproducts.com
Image (1)
