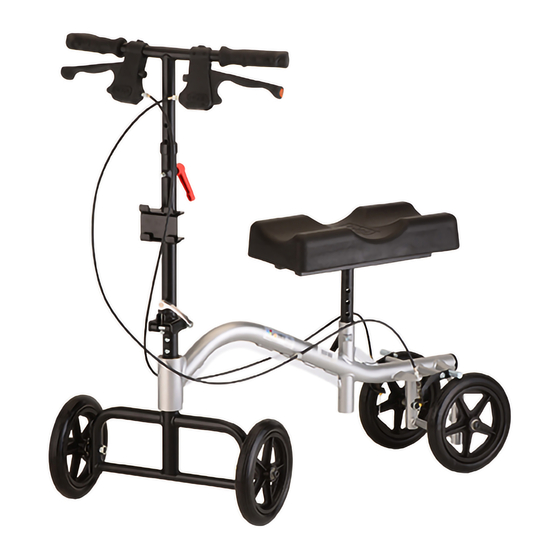

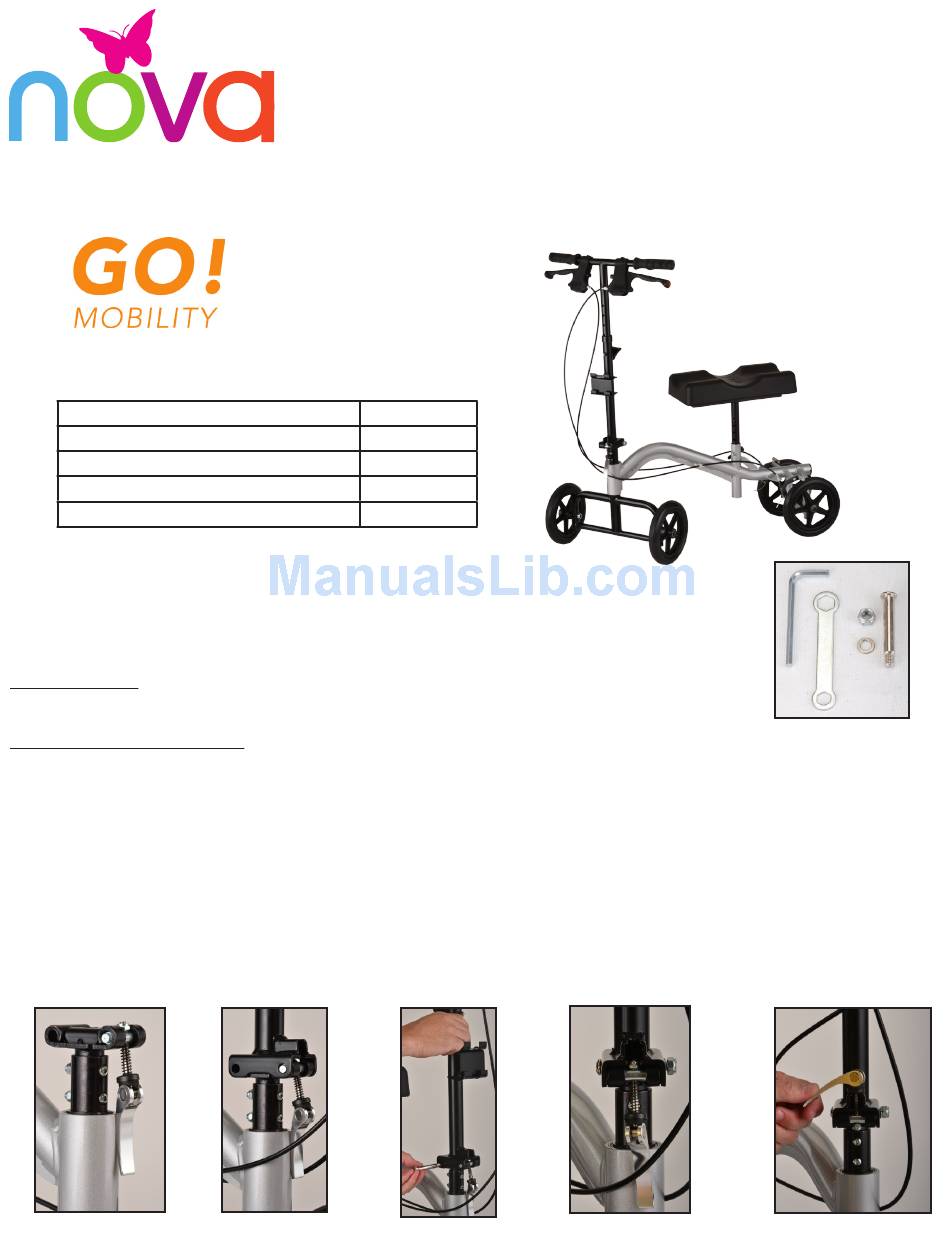

Nova TKW-12 User Manual

Our mission is to change the
world - every day - every way

Specifications/Dimensiones

Weight Capacity
Weight
Approximate User Height
Handle Height Adjustment
Platform Height Adjustment
Included Items
Allen wrench, flat wrench, mast attachment screw, locking washer, nut. (see image 1)
Steering Column Assembly
Carefully remove from the shipping box; remove all packing materials and locate the tools and hardware pictured in
image 1. The steering mast will be separated from the unit for transport and will need to be attached to the frame before
using the TKW. Use the included tools and parts to complete this step.
• Push the mast hand clamp to the right so that the pin is flush with the side of the mast platform. (see image 2)
• Place the mast onto the platform and slide the clamp to the left so that the pin engages into the hole on the mast.
(see image 3)
• While holding the mast with one hand, insert the mast attachment screw into the hole located on the rear of the mast
platform until the threads are exposed on the opposite side. (see image 4)
• Place the locking washer and the nut onto the screw and hand tighten. (see image 5)
• Use the Allen and flat wrenches to tighten the screw. Test the mast to make sure it can fold down with a small
amount of resistance and holds the mast firm when in the engaged position. Adjust the tightness of the screw,
if necessary.
• Swing the mast hand clamp upward and push the clamp arm down to secure the mast to the frame. (see image 6)
image 2
300 lbs.
26 lbs.
5'2" - 6'4"
31" - 39"
17" - 22.5""

Assembly Instructions

image 3
TKW-12
User Guide
User Guide and video available online at
www.novamedicalproducts.com
image 4 image 5
image 1
image 6
