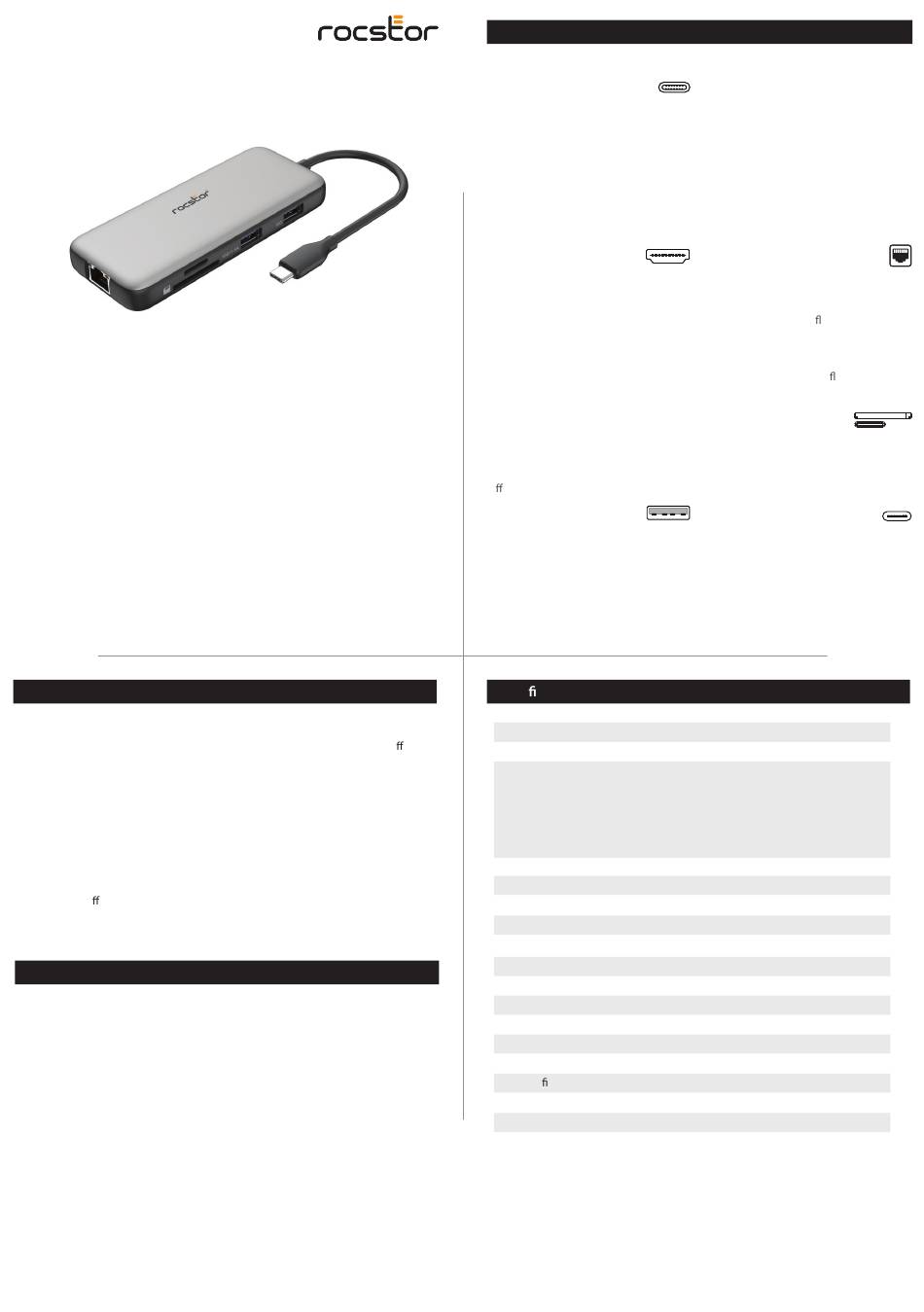

Rocstor Y10P030-S1 User Manual

User Manual
USB-C 8-in-1 Dual HDMI Display Portable Dock Multiport Adapter
with DP 1.4 Alt Mode – 100W PD
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Keep this manual for future reference.
Introduction
Rocstor introduces the Type-C 7-in-1 Portable Dock, an essential companion featuring
an array of ports to enhance connectivity for your devices. With HDMI, DisplayPort, 2
USB-A, Type-C data, Ethernet, and Type-C PD charging female ports, this hub o ers a
comprehensive solution for extending the capabilities of your Type-C or Thunderbolt
host devices, catering to those with a single Type-C port. Powered by advanced DP1.4
Alt mode supported IC technology, our dock delivers unparalleled performance.
Experience stunning visual output with HDMI video up to 8K/30Hz and DP video up to
8K/30Hz, while seamlessly transferring data at speeds of up to 5Gbps with USB 3.2
gen1 compatibility. Connectivity is further enhanced with 2 USB-A and Type-C data
ports, enabling simultaneous connection of up to 3 USB devices. Stay connected with
Gigabit Ethernet, ensuring seamless internet browsing. Additionally, our Type-C PD
charging port supports lightning-fast charging up to 100W, providing power when
you need it most. Compatible with all DP Alt mode supported Type-C hosts, our
portable dock o ers unmatched versatility and performance for all your connectivity
needs.
Package Contents
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the packaging:
• Main Unit x1
• User Manual
Y10P030-S1
®
Features
Upstream:
Type-C Male X1 Host Computer
• Supports DP1.4 Alt mode, downward
compatible with DP1.2 Alt mode
• Supports USB3.0/2.0 data transmission
(transfer speed: Max 10Gbps)
• Supports transmission of DP Alt Mode
video up to 4K/60Hz Simultaneously
Note: To get max bandwidth, the host
should support DP1.4 Alt mode&DSC
Downstream:
HDMI X2
• Supports HDMI max 4K/60Hz per port
• Supports dual 4K/60Hz simultaneously
under SST mode
• Supports dual 4K/30Hz simultaneously
under MST mode
• Supports 8/10/12 bit color depth output
• Supports output pixel format
RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
• Supports HDR
• Supports HDCP2.2&HDCP1.4&HDCP1.3
Note: The actual resolution supported is
determined by the host and the Display.
The product worked on some windows
hosts that support DP1.4&DSC can
output 4K/60Hz*2 simultaneously with
di erent pictures
USB-A X2
• Max 10Gbps data transmission per port
• Supports max 7.5W(5V/1.5A)
downstream charging the port next to SD
card slot, another port supports max
900mA downstream charging.
• 2 USB-A port share max 10W(5V/2A)
• Supports short-circuit, over-current,
over-voltage protection
Speci cation
Input/Output Connector
Input
Output
Warranty
Limited Warranty
Physical
Weight
Size
Environmental
Operating Temperature Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Regulatory Approvals
Certi cations
Accessory Adapter
User Manual
RJ45 X1
• Supports Gigabit Ethernet,
10M/100M/1000M
• Supports Wake-On-LAN
• Supports full duplex ow control
• Light indicates the state, no light when
no Internet connected, orange light
turns on when network connection is
established, green light ashes when
transmitting data.
SD/Micro SD 3.0 X1
• Supports SD3.0 data transfer up to 104MBps
• Allow 2 card slots to work simultaneously
• TF card slot with self-ejecting
mechanism by pressing
Type-C Female X1
(For PD Charging)
• Supports max 100W PD charging
• Supports PD3.0 Fast Role Swap, the
connected device will not get disconnected
while plugging out PD Adapter
• 15W is dedicated to the functioning of
this product, the rest power (max 85W)
will be passed to charge for the host
Type-C Male x1
HDMI Female x2
USB-A 10G x2
RJ45 x1
SD/Micro SD 3.0 x1
Type-C Female x1
3 Years
3.7lbs (106g)
4.7x1.9x0.6in (120x50x15.5mm)
0°C to 40°C (32°F to 104°F)
10% to 85% RH (no condensation)
-10°C to 70°C (14°F to 158°F)
5% to 90 % RH (no condensation)
FCC, CE
