Champion HMCG2 Series Technical Manual

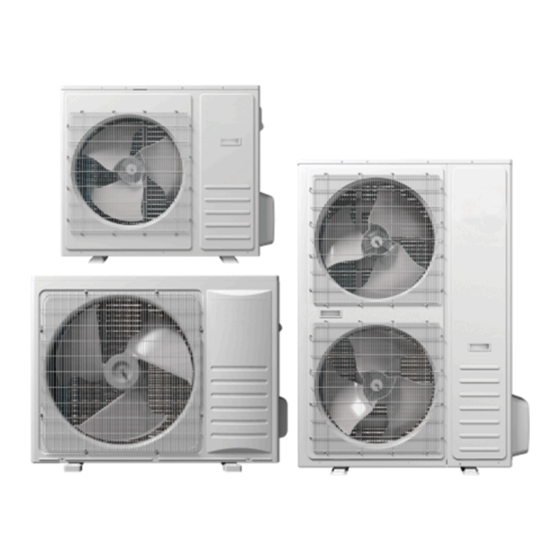

16 seer2 horizontal discharge modulating air conditioner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Champion Technical Guide: HMCG2
Series - 16 SEER2 Horizontal Discharge
Modulating Air Conditioner
R-410A 2 to 5 Nominal Ton
York International Corporation, 5005 York
6268924-CHTG-B-1122
Drive, Norman, OK 73069
Supersedes: 6268924-CHTG-A-1122
2022-11-16
Johnson Controls Ducted Systems

Advertisement

Table of Contents
loading

Related Manuals for Champion HMCG2 Series

Summary of Contents for Champion HMCG2 Series

  • Page 1 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner R-410A 2 to 5 Nominal Ton York International Corporation, 5005 York 6268924-CHTG-B-1122 Drive, Norman, OK 73069 Supersedes: 6268924-CHTG-A-1122 2022-11-16 Johnson Controls Ducted Systems...
  • Page 2 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...

  • Page 3: Table Of Contents

    Cool multiplier airhandler - 4 ton...................... 82 Cool multiplier furnace - 4 ton......................83 Performance data - 5 ton..........................85 Cooling performance data - 5 ton..................... 85 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 4 Cool multiplier airhandler - 5 ton...................... 85 Cool multiplier furnace - 5 ton......................86 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...

  • Page 5: Description

    Visit us on the web at www.simplygettingthejobdone.com and www.championhomecomfort.com. Additional rating information can be found at www.ahridirectory.org. Certification The units are tested in accordance with the following: Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...

  • Page 6: Warranty Summary

    • Agency Listed: Safety certified by CSA to UL 1995/CSA 22.2. Performance certified to ANSI/ AHRI Standard 210/240 in accordance with the Unitary Small Equipment certification program. Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...

  • Page 7: Nomenclature

    208/230 V, 1 phase, 60 Hz Normal voltage range (V) 198 to 253 Minimum circuit ampacity (A) Maximum overcurrent device Minimum overcurrent device Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...

  • Page 8: Physical And Electrical Data Notes

    For applications with non-standard vapor line sizes, see Applications and accessories. Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...

  • Page 9: Dimensions

    — JHETC48G — — — JHETC60H — — JHETD48G — — — JHETD60H — — JHETD60J — — — JHVTB18B — — — Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...

  • Page 10: System Charge Data Notes

    Table 2. For indoor matches requiring additional charge, weigh in the refrigerant for the specific matched indoor unit and the actual lineset length. Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 11 = base charge (as shipped) + charge adder for matched indoor unit + charge adder for actual lineset length + charge adjustments to match the charging chart. Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...

  • Page 12: Air Handler Capacity

    1100 27.60 19.90 31.45 HMCG22B601S JHVTD60JBCC2N1 24.5 — High 1725 55.00 41.50 18.00 10.00 Intermediate 1025 35.20 20.40 16.95 1025 26.60 19.60 32.35 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 13 1275 28.40 24.60 31.55 HMCG22B601S JHETD60HBCS2N1 24.5 — High 1750 54.00 39.50 18.00 10.00 Intermediate 1125 35.60 19.50 16.85 1125 27.80 20.20 31.90 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...

  • Page 14: Air Handler Capacity Notes

    • SEER2 (seasonal energy efficiency ratio) is the total cooling output in Btu during a normal annual usage period for cooling divided by the total electric power input in watt-hours during the same period. Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...

  • Page 15: Furnace Capacity - 2 Ton

    16.30 8.70 15.60 13.70 9.30 26.50 HMCG22B241S TM8E100B12MP11 17.5 XAH/XAHB30C High 23.60 16.70 16.50 11.00 Intermediate 600 17.30 10.20 16.35 14.00 10.80 26.40 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 16 16.90 10.50 15.35 14.00 11.00 24.60 HMCG22B241S TM9E060A10MP12 17.5 XAF/XAFB24B High 23.20 16.40 16.00 11.00 Intermediate 625 16.80 10.20 15.40 14.00 10.80 25.00 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 17 17.40 10.50 16.35 14.00 11.00 26.25 HMCG22B241S TM9Y060B12MP11 21.0 XAF/XAFC30C High 23.60 16.70 16.50 11.00 Intermediate 600 17.30 10.20 16.20 14.00 10.80 26.05 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 18 16.70 9.90 15.60 14.00 10.50 25.80 HMCG22B241S TM8E080B12MP11 17.5 XAH/XAHB30C High 23.60 16.70 16.50 11.00 Intermediate 600 17.30 10.20 16.10 13.90 10.70 25.80 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 19 9.50 15.30 13.90 10.20 25.10 HMCG22B241S TM9E026A08MP12 14.5 XAF/XAF/ High 23.00 16.20 16.00 10.50 XAUA24B Intermediate 475 16.20 8.30 15.60 13.70 9.00 26.70 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 20 17.00 9.20 16.50 13.80 9.80 27.30 HMCG22B241S TP9C080B12MP13C 17.5 XAH/XAHB30C High 23.60 16.90 17.00 11.00 Intermediate 525 17.00 9.20 16.50 13.80 9.80 27.30 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 21 10.20 15.35 14.00 10.80 24.85 HMCG22B241S TMLE060A12MP11 14.5 XAF/XAF/ High 23.20 16.10 15.50 11.00 XAUA24B Intermediate 625 16.80 10.20 15.35 14.00 10.80 24.85 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 22 9.90 16.30 13.90 10.40 26.45 HMCG22B241S TM8Y060A12MP11 17.5 XAF/XAF/ High 23.40 16.00 17.00 11.50 XAUB30C Intermediate 575 17.20 9.90 16.30 13.90 10.40 26.45 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 23 17.20 9.90 16.35 13.90 10.40 26.65 HMCG22B241S TL8E060A12UH11 17.5 XAF/XAFB24B High 23.20 16.10 16.50 11.00 Intermediate 575 16.60 9.50 15.75 13.90 10.10 26.45 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...

  • Page 24: Furnace Capacity - 3 Ton

    13.50 16.05 19.00 14.40 28.70 HMCG22B361S TM8V100C16MP12C 21.0 XAFC30C High 1100 34.60 25.20 16.50 10.50 Intermediate 825 24.00 14.20 15.85 19.00 14.90 27.80 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 25 16.40 19.00 12.90 29.55 HMCG22B361S TM9Y080C16MP11 21.0 XAF/XAF/ High 1075 35.60 24.80 16.50 10.50 XAUC48F Intermediate 725 23.80 13.50 15.95 19.00 13.50 27.65 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 26 13.60 15.75 19.00 14.50 27.65 HMCG22B361S TPLC080B12MP13C 21.0 XAF/XAFC36D High 1025 34.40 24.60 16.50 10.00 Intermediate 775 23.80 13.60 15.75 19.00 14.50 27.65 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 27 15.90 19.10 14.00 27.20 HMCG22B361S TP9C080C16MP13C 21.0 XAF/XAF/ High 1175 35.60 25.60 16.50 10.00 XAUC48F Intermediate 775 24.00 13.70 15.90 19.10 14.00 27.20 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 28 13.60 16.60 19.10 14.10 29.40 HMCG22B361S TMLE100B12MP11 17.5 XAF/XAFB36E High 1150 35.80 26.00 17.50 10.50 Intermediate 775 24.40 13.60 16.60 19.10 14.10 29.40 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 29 13.50 16.15 19.00 13.20 28.50 HMCG22B361S TM9E100C20MP12 21.0 XAF/XAFC36D High 1250 36.00 26.60 16.50 10.50 Intermediate 825 24.20 13.80 16.20 19.20 14.50 28.00 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 30 16.40 19.00 13.60 29.00 HMCG22B361S TM8E080B12MP11 17.5 XAF/XAF/ High 1075 35.80 25.40 17.00 10.50 XAUB36D Intermediate 825 24.60 14.20 16.35 19.20 14.70 28.30 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 31 16.15 19.10 13.80 28.20 HMCG22B361S TM9E080B12MP12 21.0 XAF/XAF/ High 1150 34.40 25.40 16.50 10.00 XAUC48F Intermediate 750 23.60 13.20 15.75 18.90 14.10 27.65 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 32 1075 19.40 17.30 24.80 HMCG22B361S TMLE080B12MP11 17.5 XAF/XAFB36E High 1250 36.00 26.80 16.00 10.00 Intermediate 1075 25.60 17.40 15.70 1075 19.40 17.30 24.80 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 33 13.00 15.50 18.80 13.80 26.85 HMCG22B361S TM9E060B12MP12 17.5 XAF/XAFB36E High 1100 34.20 24.80 16.50 9.80 Intermediate 700 23.40 12.60 15.55 18.80 13.60 27.10 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 34 12.10 16.20 18.80 12.70 28.80 HMCG22B361S TMLE040A12MP11 17.5 XAF/XAUB30C High 1125 35.60 25.60 17.00 10.50 Intermediate 650 23.80 12.10 16.20 18.80 12.70 28.80 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 35 16.45 19.20 14.60 28.60 HMCG22B361S TL8E060A12UH11 17.5 XAF/XAF/ High 1100 35.80 25.60 17.00 10.50 XAUB36D Intermediate 950 25.20 15.90 16.20 19.30 15.90 27.05 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...

  • Page 36: Furnace Capacity - 4 Ton

    15.65 25.20 17.70 28.25 HMCG22B481S TM8V100C20MP12C 21.0 XAH/ High 1425 48.00 32.20 16.50 9.80 XAHC60H Intermediate 975 32.80 16.90 15.65 25.20 17.70 28.25 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 37 15.45 25.00 17.60 27.50 HMCG22B481S TM8V080C16MP12C 24.5 XAH/ High 1400 48.00 32.00 16.00 9.80 XAHD60H Intermediate 900 32.00 15.90 15.20 24.80 16.90 27.25 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 38 1125 25.60 19.30 27.35 HMCG22B481S TL8E100C20UH11 21.0 XAF/XAFC60H High 1500 48.00 32.80 16.50 9.80 Intermediate 1050 33.40 17.80 15.75 1050 25.40 18.50 28.00 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...

  • Page 39: Furnace Capacity - 5 Ton

    28.00 21.20 29.15 HMCG22B601S TM8E080C20MP11 21.0 XAH/ High 1625 53.00 38.50 17.00 9.80 XAHC60H Intermediate 1250 36.20 20.80 16.30 1250 28.00 21.20 29.20 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 40 28.00 21.20 28.95 HMCG22B601S TMLE100C20MP11 24.5 XAF/XAF/ High 1725 53.50 39.00 17.00 9.80 XAUD60H Intermediate 1250 36.00 20.80 16.25 1250 28.00 21.20 28.95 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 41 27.80 21.00 28.25 HMCG22B601S TMLE120C20MP11 24.5 XAF/XAF/ High 1650 53.00 38.50 17.00 9.80 XAUD60H Intermediate 1225 35.80 20.60 16.05 1225 27.80 21.00 28.25 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 42 27.20 22.20 27.70 HMCG22B601S TM8E120C16MP11 21.0 XAH/ High 1500 52.50 37.40 17.00 9.80 XAHC60H Intermediate 1125 35.40 19.50 16.25 1125 27.40 20.00 29.45 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 43 27.40 19.80 30.45 HMCG22B601S TPLC100C20MP13C 21.0 XAH/ High 1625 53.00 38.50 17.50 9.80 XAHC60H Intermediate 1100 35.40 19.20 16.45 1100 27.40 19.80 30.45 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 44 1225 28.00 21.00 29.15 HMCG22B601S TM8Y120C20MP11 21.0 XAF/XAFC60H High 1725 53.50 39.50 17.50 9.80 Intermediate 1050 35.20 18.70 16.60 1050 27.20 19.40 31.30 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 45 1050 26.60 19.80 30.60 HMCG22B601S TM8Y100C20MP11 24.5 XAF/XAFD60J High 1725 54.00 41.00 17.50 9.80 Intermediate 1050 35.20 20.60 16.60 1050 26.60 19.80 30.60 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 46 1225 27.20 21.80 28.25 HMCG22B601S TM8Y120C20MP11 24.5 XAH/XAHD60J High 1700 54.00 41.00 17.50 9.80 Intermediate 1050 35.20 20.80 16.55 1050 26.60 20.00 30.55 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 47 27.40 20.00 29.45 HMCG22B601S TP9C100C16MP13C 21.0 XAH/ High 1650 53.00 38.50 17.00 9.80 XAHC60H Intermediate 1125 35.40 19.50 16.25 1125 27.40 20.00 29.45 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 48 1050 27.20 19.50 29.35 HMCG22B601S TM9V100C16MP12C 21.0 XAF/XAFC60H High 1525 52.50 37.60 17.00 9.80 Intermediate 1050 35.00 18.70 16.10 1050 27.20 19.50 29.35 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 49 27.00 19.40 28.85 HMCG22B601S TP9C100C20MP13C 24.5 XAF/XAF/ High 1650 53.00 38.50 17.00 9.80 XAUD60H Intermediate 1050 34.80 18.70 16.00 1050 27.00 19.40 28.85 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 50 20.00 16.15 26.20 19.10 29.20 HMCG22B601S TP9C100C20MP13C 24.5 XAH/XAHD60J High 1625 53.50 40.00 17.00 9.80 Intermediate 975 34.60 20.00 16.15 26.20 19.10 29.20 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 51 20.00 16.15 26.20 19.10 29.20 HMCG22B601S TP9C100C20MP13C 24.5 XAH/XAHD60J High 1625 53.50 40.00 17.00 9.80 Intermediate 975 34.60 20.00 16.15 26.20 19.10 29.20 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 52 27.00 19.20 30.00 HMCG22B601S TP9C120D20MP13C 24.5 XAF/XAF/ High 1700 53.50 39.00 17.00 9.80 XAUD60H Intermediate 1025 34.80 18.40 16.25 1025 27.00 19.20 30.00 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 53 1025 26.40 19.60 29.75 HMCG22B601S TP9C120D20MP13C 24.5 XAH/XAHD60J High 1700 54.00 41.00 17.00 9.80 Intermediate 1025 35.00 20.60 16.35 1025 26.40 19.60 29.75 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 54 28.00 21.20 28.95 HMCG22B601S TM8E080C20MP11 24.5 XAH/ High 1700 53.00 39.00 17.00 9.80 XAHD60H Intermediate 1250 36.00 20.80 16.25 1250 28.00 21.20 29.05 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 55 1250 27.20 22.20 28.35 HMCG22B601S TMLE080C20MP11 24.5 XAH/XAHD60J High 1675 54.00 41.00 17.00 9.80 Intermediate 1250 36.20 22.40 16.25 1250 27.20 22.20 28.35 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 56 28.00 21.20 29.15 HMCG22B601S TM8E080C20MP11 21.0 XAH/ High 1625 53.00 38.50 17.00 9.80 XAHC60H Intermediate 1250 36.20 20.80 16.30 1250 28.00 21.20 29.20 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 57 1225 27.80 21.00 28.25 HMCG22B601S TM8E100C20MP11 24.5 XAF/XAFD60J High 1725 54.00 41.00 17.00 9.80 Intermediate 1250 36.20 22.40 16.30 1250 27.20 22.20 28.40 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 58 1250 28.00 21.20 28.50 HMCG22B601S TMLE120C20MP11 21.0 XAF/XAFC60H High 1650 53.00 38.50 17.00 9.80 Intermediate 1250 36.00 20.80 16.10 1250 28.00 21.20 28.50 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 59 27.40 19.80 30.45 HMCG22B601S TPLC100C20MP13C 21.0 XAH/ High 1625 53.00 38.50 17.50 9.80 XAHC60H Intermediate 1100 35.40 19.20 16.45 1100 27.40 19.80 30.45 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 60 1225 28.00 21.00 29.15 HMCG22B601S TM8Y120C20MP11 21.0 XAF/XAFC60H High 1725 53.50 39.50 17.50 9.80 Intermediate 1050 35.20 18.70 16.60 1050 27.20 19.40 31.30 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 61 28.20 21.20 29.45 HMCG22B601S TM8Y120C20MP11 21.0 XAH/ High 1725 53.50 39.50 17.50 9.80 XAHC60H Intermediate 1075 35.20 18.90 16.70 1075 27.40 19.50 31.70 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 62 27.00 19.20 28.70 HMCG22B601S TM9E080C20MP12 24.5 XAF/XAF/ High 1750 53.50 39.50 17.00 9.80 XAUD60H Intermediate 1225 36.00 20.60 16.25 1225 28.00 21.00 29.00 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 63 27.00 19.40 28.90 HMCG22B601S TM9E080C20MP12 24.5 XAH/ High 1750 54.00 39.50 17.00 9.90 XAHD60H Intermediate 1225 36.00 20.60 16.25 1225 28.00 21.00 29.05 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...

  • Page 64: Applications And Accessories

    TXV Kits (S1-1TVM*): Thermal expansion valves precisely meter refrigerant for optimum performance over a wide range of conditions. See Table 4 for the TXV part number for each model. Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...

  • Page 65: Sound Power Rating

    • Outdoor fan blades shall be swept-wing to minimize sound (applies to select models). • Outdoor fan motor shall be totally enclosed with permanently lubricated ball bearings motors approved for vertical shaft applications. Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...

  • Page 66: Typical Installation

    Care must be taken to prevent ice from damaging the unit. Damage may occur from ice falling onto unit from a sloped roof or from a vertical drip line due to a partial overhang. Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...

  • Page 67: Typical Field Wiring

    Typical field wiring Figure 4: HMCG22B24 and HMCG22B36 electrical wiring diagram Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...

  • Page 68: Alternative Installation Clearances

    Figure 5: HMCG22B48 and HMCG22B60 electrical wiring diagram Alternative installation clearances Figure 6: Alternative installation clearances Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...

  • Page 69: Performance Data - 2 Ton

    0.98 0.94 0.98 TL8E060A12UH11 XAF/XAFB24B 0.97 0.92 1.01 TL8E060A12UH11 XAH/XAHA24B 0.96 0.90 1.00 TL8E060A12UH11 XAH/XAHB24B 0.97 0.92 1.01 TL8E060A12UH11 XAH/XAHB30C 0.98 0.93 1.02 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 70 0.98 0.94 0.98 TM8V080B12MP12C XAF/XAF/XAUB30C 0.98 0.94 1.02 TM8V080B12MP12C XAF/XAFB24B 0.96 0.91 1.05 TM8V080B12MP12C XAF/XAFC30C 0.98 0.94 1.02 TM8V080B12MP12C XAH/XAHB24B 0.96 0.91 1.05 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 71 0.96 0.91 1.05 TM9E060A10MP12 XAH/XAHB30C 0.98 0.94 1.02 TM9E060B12MP12 XAF/XAFB24B 0.97 0.96 1.06 TM9E060B12MP12 XAH/XAHB24B 0.97 0.96 1.06 TM9E060B12MP12 XAH/XAHB30C 0.98 0.98 1.03 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 72 0.97 0.93 1.01 TM9Y060B12MP11 XAF/XAFC30C 0.98 0.95 1.03 TM9Y060B12MP11 XAH/XAHB24B 0.96 0.91 1.00 TM9Y060B12MP11 XAH/XAHB30C 0.98 0.93 1.02 TM9Y060B12MP11 XAH/XAHC30C 0.98 0.95 1.03 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 73 0.98 0.97 0.98 TMLE100C16MP11 XAF/XAFC30C 0.98 0.94 0.98 TMLE100C16MP11 XAH/XAHC30C 0.98 0.94 0.98 TMLE120C16MP11 XAF/XAFC30C 0.98 0.95 0.98 TMLV060A12MP12C XAF/XAF/XAUB30C 0.98 0.94 0.98 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 74 0.96 0.91 1.05 TPLC080B12MP13C XAF/XAFC30C 0.98 0.94 1.02 TPLC080B12MP13C XAH/XAHB24B 0.96 0.91 1.05 TPLC080B12MP13C XAH/XAHB30C 0.98 0.94 1.02 TPLC080B12MP13C XAH/XAHC30C 0.98 0.94 1.02 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...

  • Page 75: Performance Data - 3 Ton

    1.00 0.98 0.95 TL8E080C16UH11 XAF/XAF/XAUC48F 1.00 0.99 0.95 TL8E080C16UH11 XAF/XAFC36D 0.99 0.92 0.94 TL8E080C16UH11 XAF/XAFD48F 0.99 0.93 0.95 TL8E080C16UH11 XAFC30C 1.00 0.99 0.95 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 76 0.98 0.91 0.94 TM8E100B12MP11 XAF/XAF/XAUC48F 0.98 0.91 0.94 TM8E100B12MP11 XAF/XAFB36E 0.99 0.95 0.95 TM8E100B12MP11 XAF/XAFC36D 0.99 0.91 0.94 TM8E100B12MP11 XAF/XAUB30C 1.00 0.96 0.95 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 77 0.96 0.94 0.98 TM8Y080C16MP11 XAFC30C 0.95 0.91 0.97 TM8Y100C16MP11 XAF/XAF/XAUC48F 0.96 0.91 0.96 TM8Y100C16MP11 XAF/XAFD48F 0.96 0.94 0.98 TM8Y100C20MP11 XAF/XAF/XAUC48F 0.96 0.90 0.96 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 78 0.98 0.91 0.98 TM9V060B12MP12C XAF/XAF/XAUB36D 0.99 0.94 0.95 TM9V060B12MP12C XAF/XAF/XAUC48F 1.00 0.93 0.95 TM9V060B12MP12C XAF/XAFB36E 0.99 0.91 0.95 TM9V060B12MP12C XAF/XAFC36D 0.99 0.92 0.95 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 79 0.98 0.88 0.94 TM9Y100C16MP11 XAF/XAF/XAUC48F 0.99 0.92 0.99 TM9Y100C16MP11 XAF/XAFC36D 0.99 0.92 0.99 TM9Y100C16MP11 XAF/XAFD48F 0.98 0.89 0.98 TM9Y100C16MP11 XAFC30C 0.98 0.92 0.98 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 80 0.96 0.92 0.92 TP9C060B12MP13C XAF/XAF/XAUB36D 0.99 0.94 0.95 TP9C060B12MP13C XAF/XAF/XAUC48F 1.00 0.93 0.95 TP9C060B12MP13C XAF/XAFB36E 0.99 0.91 0.95 TP9C060B12MP13C XAF/XAFC36D 0.99 0.92 0.95 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 81 0.96 0.92 0.92 TPLC100C16MP12C XAF/XAF/XAUC48F 0.96 0.91 0.91 TPLC100C16MP12C XAF/XAFC36D 0.95 0.91 0.97 TPLC100C16MP12C XAF/XAFD48F 0.97 0.98 0.97 TPLC100C16MP12C XAFC30C 0.96 0.92 0.92 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...

  • Page 82: Performance Data - 4 Ton

    0.99 0.93 1.01 JHVTC48GBCC2N1 — 0.99 0.95 1.01 JHVTC60HBCC2N1 — 1.00 0.95 1.02 JHVTD48GBCC2N1 — 0.99 0.94 1.01 JHVTD60HBCC2N1 — 1.00 0.94 1.00 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...

  • Page 83: Cool Multiplier Furnace - 4 Ton

    1.00 0.93 1.02 TMLE120C16MP11 XAF/XAFC60H 1.00 0.94 1.02 TMLE120C16MP11 XAH/XAHC60H 1.00 0.94 1.02 TMLV100C16MP12C XAF/XAFC60H 1.00 0.93 1.02 TMLV100C16MP12C XAH/XAHC60H 1.00 0.93 1.02 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 84 1.00 0.93 1.02 TPLC100C20MP13C XAF/XAFC60H 1.00 0.93 1.02 TPLC100C20MP13C XAH/XAHC60H 1.00 0.93 1.02 TPLC120C20MP12C XAF/XAFC60H 1.00 0.93 1.02 TPLC120C20MP12C XAH/XAHC60H 1.00 0.93 1.02 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...

  • Page 85: Performance Data - 5 Ton

    1.00 1.00 1.00 JHETD60JBCS2N1 — 1.00 1.00 1.00 JHVTC60HBCC2N1 — 0.96 0.99 0.98 JHVTC60HBCC2N1 — 0.96 0.99 0.98 JHVTC60HBCC2N1 — 0.96 0.99 0.98 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 86 0.95 0.96 0.97 TM8E080C20MP11 XAF/XAF/XAUD60H 0.95 0.96 0.97 TM8E080C20MP11 XAF/XAF/XAUD60H 0.95 0.96 0.97 TM8E080C20MP11 XAF/XAFC60H 0.95 0.96 0.97 TM8E080C20MP11 XAF/XAFC60H 0.95 0.96 0.97 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 87 0.96 0.98 0.97 TM8E100C20MP11 XAH/XAHD60H 0.96 0.98 0.97 TM8E100C20MP11 XAH/XAHD60H 0.96 0.98 0.97 TM8E100C20MP11 XAH/XAHD60H 0.96 0.98 0.97 TM8E100C20MP11 XAH/XAHD60J 0.96 1.01 0.98 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 88 0.95 0.96 0.97 TM8E130D20MP11 XAF/XAFD60J 0.96 1.01 0.98 TM8E130D20MP11 XAF/XAFD60J 0.96 1.01 0.98 TM8E130D20MP11 XAF/XAFD60J 0.96 1.01 0.98 TM8E130D20MP11 XAF/XAFD60J 0.96 1.01 0.98 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 89 0.95 0.96 0.97 TM8V120C20MP12C XAH/XAHC60H 0.95 0.96 0.97 TM8Y100C20MP11 XAF/XAF/XAUD60H 0.96 0.99 0.97 TM8Y100C20MP11 XAF/XAF/XAUD60H 0.96 0.99 0.97 TM8Y100C20MP11 XAF/XAF/XAUD60H 0.96 0.99 0.97 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 90 0.96 0.99 0.97 TM8Y120C20MP11 XAH/XAHC60H 0.96 0.99 0.97 TM8Y120C20MP11 XAH/XAHC60H 0.96 0.99 0.97 TM8Y120C20MP11 XAH/XAHD60H 0.96 0.99 0.97 TM8Y120C20MP11 XAH/XAHD60H 0.96 0.99 0.97 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 91 0.93 0.93 0.95 TM9E100C16MP12 XAF/XAFC60H 0.93 0.93 0.95 TM9E100C16MP12 XAF/XAFC60H 0.93 0.93 0.95 TM9E100C16MP12 XAF/XAFC60H 0.93 0.93 0.95 TM9E100C16MP12 XAF/XAFD60J 0.94 0.96 0.96 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 92 0.97 1.02 0.97 TM9E120D20MP12 XAF/XAF/XAUD60H 0.95 0.96 0.97 TM9E120D20MP12 XAF/XAF/XAUD60H 0.95 0.96 0.97 TM9E120D20MP12 XAF/XAF/XAUD60H 0.95 0.96 0.97 TM9E120D20MP12 XAF/XAF/XAUD60H 0.95 0.96 0.97 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 93 0.95 0.98 0.97 TM9V100C16MP12C XAH/XAHD60J 0.95 0.98 0.97 TM9V100C20MP12C XAF/XAF/XAUD60H 0.95 0.96 0.97 TM9V100C20MP12C XAF/XAF/XAUD60H 0.95 0.96 0.97 TM9V100C20MP12C XAF/XAF/XAUD60H 0.95 0.96 0.97 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 94 0.94 0.95 0.96 TM9Y100C20MP11 XAF/XAF/XAUD60H 0.94 0.95 0.96 TM9Y100C20MP11 XAF/XAF/XAUD60H 0.94 0.95 0.96 TM9Y100C20MP11 XAF/XAFC60H 0.94 0.95 0.96 TM9Y100C20MP11 XAF/XAFC60H 0.94 0.95 0.96 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 95 0.95 0.96 0.97 TMLE080C20MP11 XAF/XAF/XAUD60H 0.95 0.96 0.97 TMLE080C20MP11 XAF/XAF/XAUD60H 0.95 0.96 0.97 TMLE080C20MP11 XAF/XAF/XAUD60H 0.95 0.96 0.97 TMLE080C20MP11 XAF/XAFC60H 0.95 0.96 0.97 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 96 0.95 0.96 0.97 TMLE100C20MP11 XAH/XAHD60H 0.96 0.98 0.97 TMLE100C20MP11 XAH/XAHD60H 0.96 0.98 0.97 TMLE100C20MP11 XAH/XAHD60H 0.96 0.98 0.97 TMLE100C20MP11 XAH/XAHD60H 0.96 0.98 0.97 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 97 0.95 0.96 0.97 TMLE130D20MP11 XAF/XAF/XAUD60H 0.95 0.96 0.97 TMLE130D20MP11 XAF/XAFD60J 0.96 1.01 0.98 TMLE130D20MP11 XAF/XAFD60J 0.96 1.01 0.98 TMLE130D20MP11 XAF/XAFD60J 0.96 1.01 0.98 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 98 0.95 0.98 0.97 TP9C100C16MP13C XAH/XAHD60J 0.95 0.98 0.97 TP9C100C16MP13C XAH/XAHD60J 0.95 0.98 0.97 TP9C100C20MP13C XAF/XAF/XAUD60H 0.95 0.96 0.97 TP9C100C20MP13C XAF/XAF/XAUD60H 0.95 0.96 0.97 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 99 0.95 0.96 0.97 TPLC100C20MP13C XAH/XAHC60H 0.95 0.96 0.97 TPLC100C20MP13C XAH/XAHC60H 0.95 0.96 0.97 TPLC100C20MP13C XAH/XAHC60H 0.95 0.96 0.97 TPLC120C20MP12C XAH/XAHC60H 0.95 0.96 0.97 Champion Technical Guide: HMCG2 Series - 16 SEER2 Horizontal Discharge Modulating Air Conditioner Johnson Controls Ducted Systems...
  • Page 100 Table 23: Cool multiplier furnace - 5 ton Furnace model Indoor coil model Total capacity Sensible capacity TPLC120C20MP12C XAH/XAHC60H 0.95 0.96 0.97 TPLC120C20MP12C XAH/XAHC60H 0.95 0.96 0.97 TPLC120C20MP12C XAH/XAHC60H 0.95 0.96 0.97 Subject to change without notice. Published in U.S.A. Copyright © 2022 by Johnson Controls. All rights reserved. Johnson Controls Ducted Systems...
