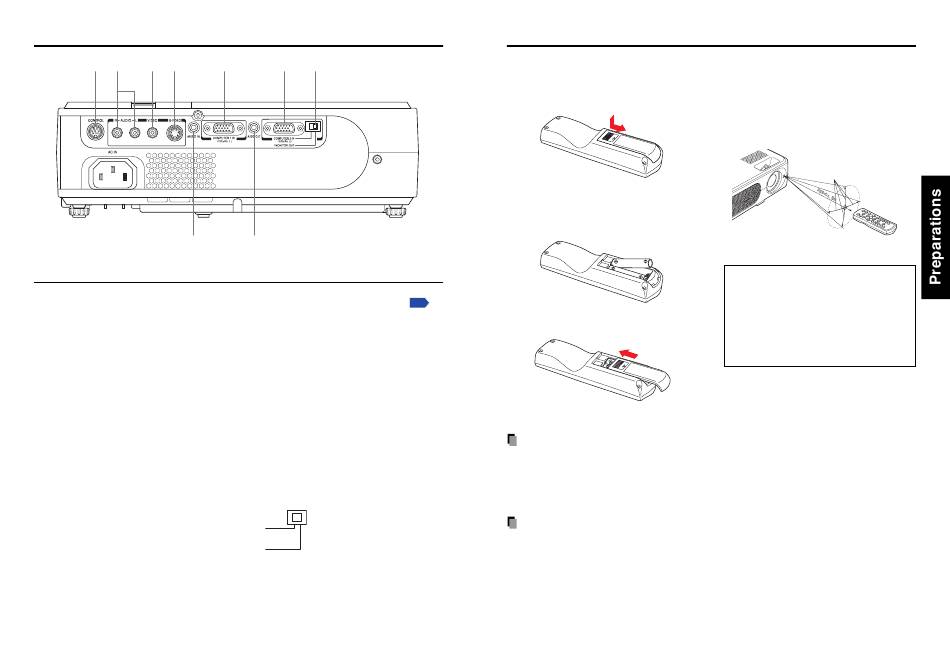

Names of the terminals on the rear panel
(1)
(2)
(3)
(4)
(5)
Name
: Main Function
(1) CONTROL terminal
: When operating the projector via a computer, connect
this to the controlling computer's RS-232C port.
(2) AUDIO (L/R) terminal
: Input audio signals from video equipment.
(3) VIDEO terminal
: Input video signals from video equipment.
(4) S-VIDEO terminal
: Input S video signals from video equipment.
(5) AUDIO IN terminal
: Input audio signals from a computer, or from video
equipment with a component video signal output
terminal.
(6) COMPUTER 1 IN terminal
: Input RGB signal from a computer or other source or a
component video signal (Y/P
equipment.
(7) AUDIO OUT terminal
: Outputs audio signals.
(8) COMPUTER 2 IN terminal
: Inputs RGB signal from a computer or other source or
(Also used for MONITOR OUT terminal)
a component video signal (Y/P
equipment. It can also be used as MONITOR OUT
terminal by the switch of (9).
(9) Switch
: Switches between COMPUTER 2 IN and MONITOR
OUT.
COMPUTER 2 IN
(Y/P
/MONITOR OUT
(6)
(8)
(9)
(7)
/P
) from video
B
R
/P
) from video
B
R
/P
2)
B
R
18
Preparing and using the remote control
■ Loading dry-cell batteries
into the remote control
q Remove the battery cover.
w Insert the dry-cell batteries.
Be sure to align the plus and minus
ends of the batteries properly.
p.53
e Replace the battery cover.
Dry-cell batteries
• Before using the batteries, be sure to observe the Safety Precautions described in
previous pages.
• Remove batteries from remote control when not using for extended periods.
• If the remote control stops working, or if its range decreases, replace all the batteries with
new ones.
The remote control
• The remote control may fail to operate if the infrared remote sensor is exposed to bright
sunlight or fluorescent lighting.
• Do not drop or bang.
• Do not leave in hot or humid locations.
• Do not allow it to get wet or place it on top of wet objects.
• Do not take apart.
• In rare cases, ambient conditions could impede the operation of the remote control. If this
happens, point the remote control at the main unit again, and repeat the operation.
■ Operating the remote
control
Point toward the projector's
infrared remote sensor, and press a
button on the remote control.
• Operating the projector from the front
Approx. 15°
When operating the remote control
from behind the projector, the light is
reflected on the projecting surface
and may travel a shorter distance to
reach the projector depending on the
shape and material of the projecting
surface.
19
